Chapter 10 Configuring the Switch Ports
Understanding the EtherChannel

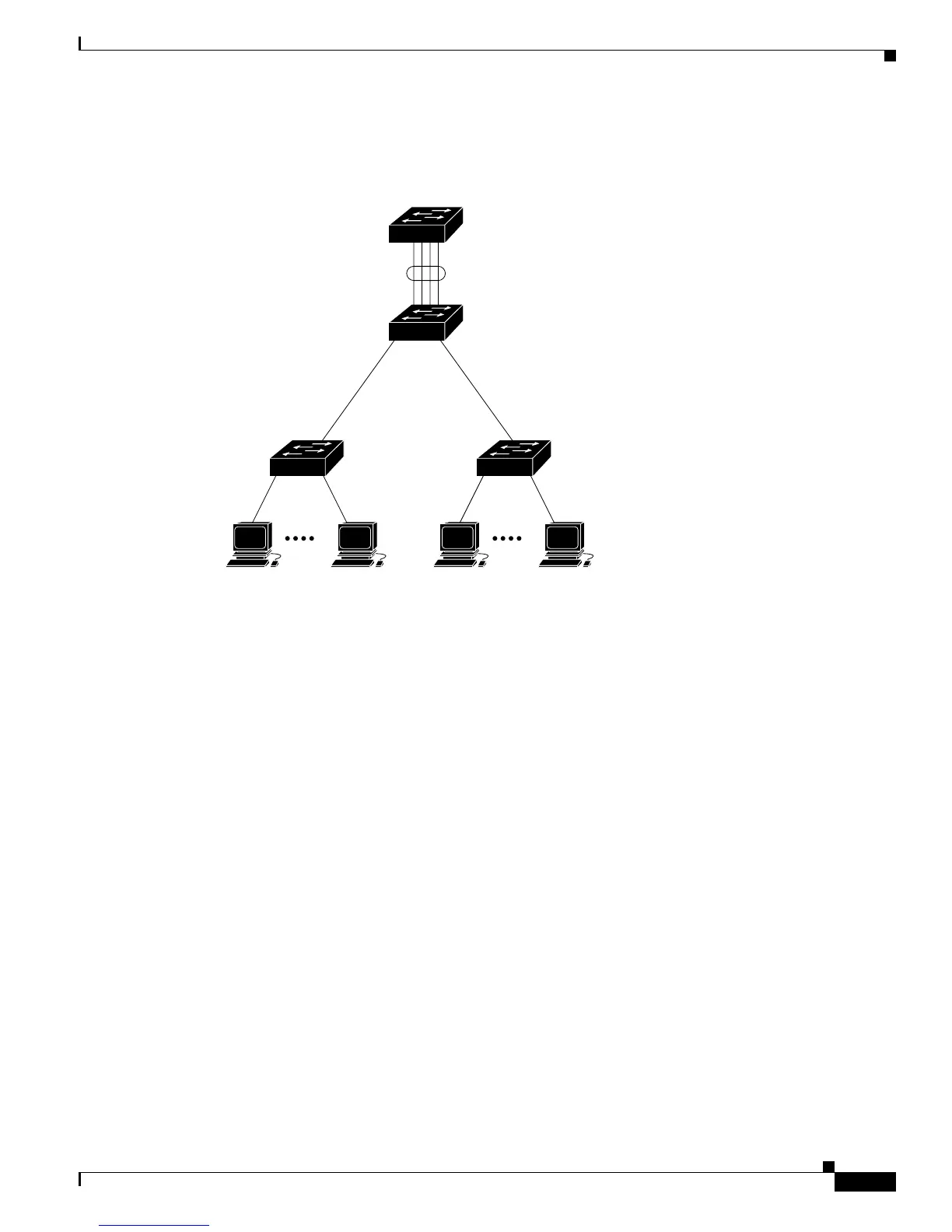

Figure 10-1 Typical EtherChannel Configuration
Understanding Port-Channel Interfaces
When you create an EtherChannel for Layer 2 interfaces, a logical interface is dynamically created. You
then manually assign an interface to the EtherChannel by using the channel-group interface
configuration command as shown in Figure 10-2.
Each EtherChannel has a logical port-channel interface numbered from 1 to 6.
Catalyst 8500, 6000,
5500, or 4000
series switch
Catalyst 3550-12T
switch
Gigabit EtherChannel
Catalyst 2950-T
switch
Workstations
10/100
Switched
links
65187
Catalyst 2950-T
switch
Workstations
10/100
Switched
links
1000BASE-X 1000BASE-X

Cisco Catalyst 2950 Specifications

General

Forwarding Bandwidth	8.8 Gbps
Switching Capacity	13.6 Gbps
Forwarding Rate	6.6 Mpps
Weight	3.6 kg
RAM	16 MB
Flash Memory	8 MB
Operating Humidity	10% to 85% non-condensing
Uplink Ports	2 x 10/100/1000Base-T
Dimensions	4.4 cm x 44.5 cm x 24.2 cm
Remote Management Protocol	SNMP, Telnet, HTTP
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p
Status Indicators	system
Operating Temperature	0 to 45°C
Ports	24 x 10/100 Ethernet ports
MAC Address Table Size	8, 192 entries
Power Supply	Internal 100-240V AC, 50-60Hz
