Chapter 2 Getting Started with CMS
Front Panel View
Front-Panel Images
You can manage the switch from a remote station by using the front-panel images. The front-panel
images are updated based on the network polling interval that you set from CMS > Preferences.
Note The Preferences window is not available if your switch access level is read-only. For more information
about the read-only access mode, see the “Access Modes in CMS” sectiononpage2-31.
Figure 2-5 shows the port icons as they appear in the front-panel images. To select a port, click the port
on the front-panel image. The port is then highlighted with a yellow outline. To select multiple ports,
you can:
• Press the left mouse button, drag the pointer over the group of ports that you want to select, and then
releasethemousebutton.
• Press the Ctrl key, and click the ports that you want to select.
• Right-click a port, and select Select All Ports from the port popup menu.

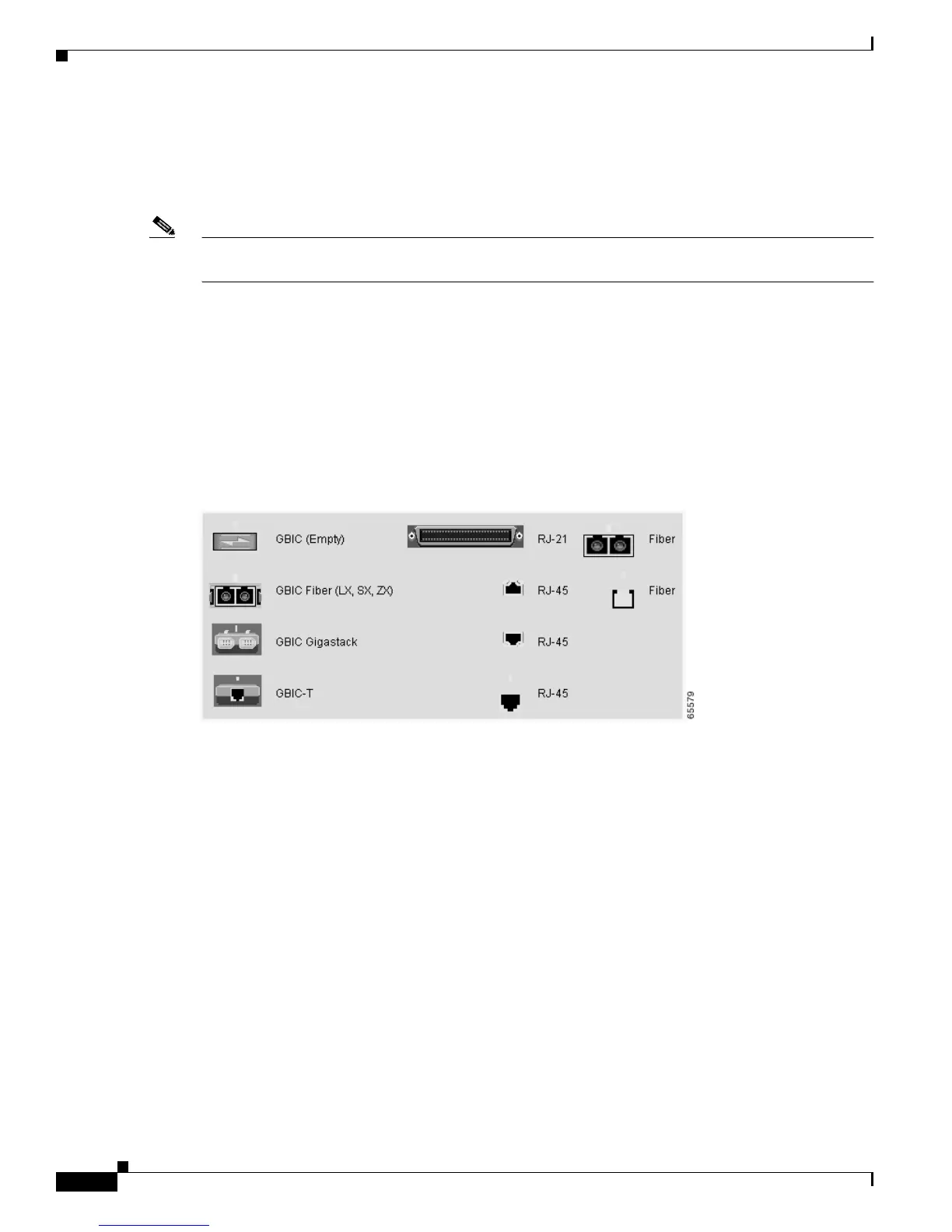

Figure 2-5 Port Icons
The following sections provide complete descriptions of the LED images. Similar descriptions of these
LEDs are provided in the switch hardware installation guide.

Cisco Catalyst 2950 Specifications

General

Forwarding Bandwidth	8.8 Gbps
Switching Capacity	13.6 Gbps
Forwarding Rate	6.6 Mpps
Weight	3.6 kg
RAM	16 MB
Flash Memory	8 MB
Operating Humidity	10% to 85% non-condensing
Uplink Ports	2 x 10/100/1000Base-T
Dimensions	4.4 cm x 44.5 cm x 24.2 cm
Remote Management Protocol	SNMP, Telnet, HTTP
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p
Status Indicators	system
Operating Temperature	0 to 45°C
Ports	24 x 10/100 Ethernet ports
MAC Address Table Size	8, 192 entries
Power Supply	Internal 100-240V AC, 50-60Hz
