Configuring EtherChannels
Information About Configuring EtherChannels

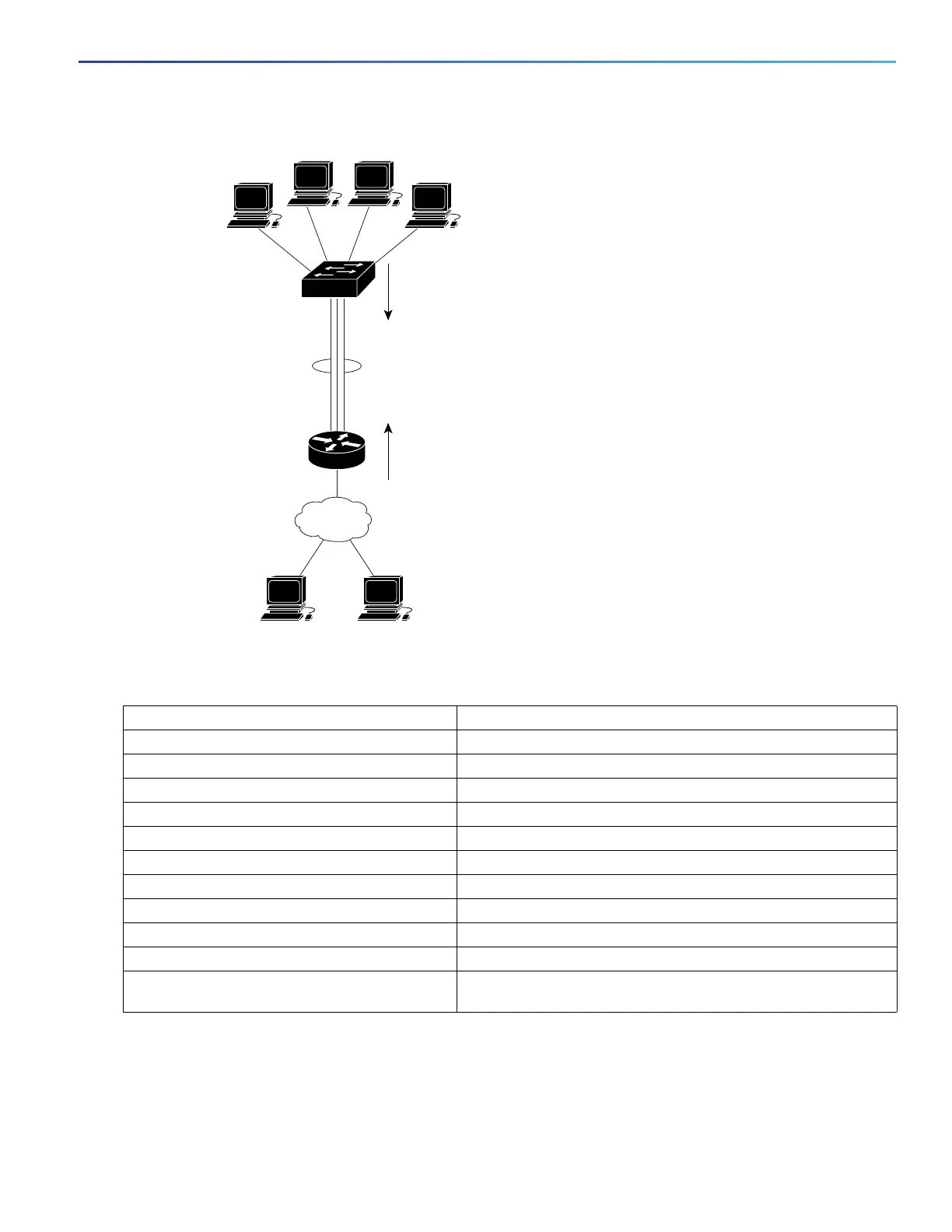

Figure 110 Load Distribution and Forwarding Methods
Default EtherChannel Settings
EtherChannel Configuration Guidelines
If improperly configured, some EtherChannel ports are automatically disabled to avoid network loops and other problems.
Follow these guidelines to avoid configuration problems:
101239
Cisco router
with destination-based
forwarding enabled
EtherChannel
Switch with
source-based
forwarding enabled
Feature Default Setting
Channel groups None assigned.
Port-channel logical interface None defined.
PAgP mode No default.
PAgP learn method Aggregate-port learning on all ports.
PAgP priority 128 on all ports.
LACP mode No default.
LACP learn method Aggregate-port learning on all ports.
LACP port priority 32768 on all ports.
LACP system priority 32768.
LACP system ID LACP system priority and the switch MAC address.
Load balancing Load distribution on the switch is based on the source-MAC
address of the incoming packet.

Cisco IE-5000 Specifications

General

Model	IE-5000
Category	Industrial Ethernet Switch
Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
MAC Address Table Size	16, 000 entries
Ports	16 or 24 10/100/1000 ports
Uplink Ports	4 SFP ports
Operating Temperature	-40°C to 70°C
Power Supply	Dual redundant power supplies
Mounting	DIN rail
Management	Web GUI, CLI, SNMP
Input Voltage	24 VDC or 110/220 VAC
Layer	Layer 2/3
Jumbo Frame Support	Up to 9216 bytes
