294 Gateway and Gateway 4 Manual v1.2
© Tieline Research Pty. Ltd. 2021
4
Output 4
5
Output 5
6
Output 6
7
Output 7
8
Output 8
9
Input 1
10
Input 3
11
Input 5
12
Input 7
13
Ground
14
Output 1
15
Output 2
16
Output 3
17
Output 4
18
Output 5
19
Output 6
20
Output 7
21
Output 8
22
Input 2
23
Input 4
24
Input 6
25
Input 8
Important Note: For more information about how to program relay operations with a
PC using the Toolbox Web-GUI, please see Creating Rules.

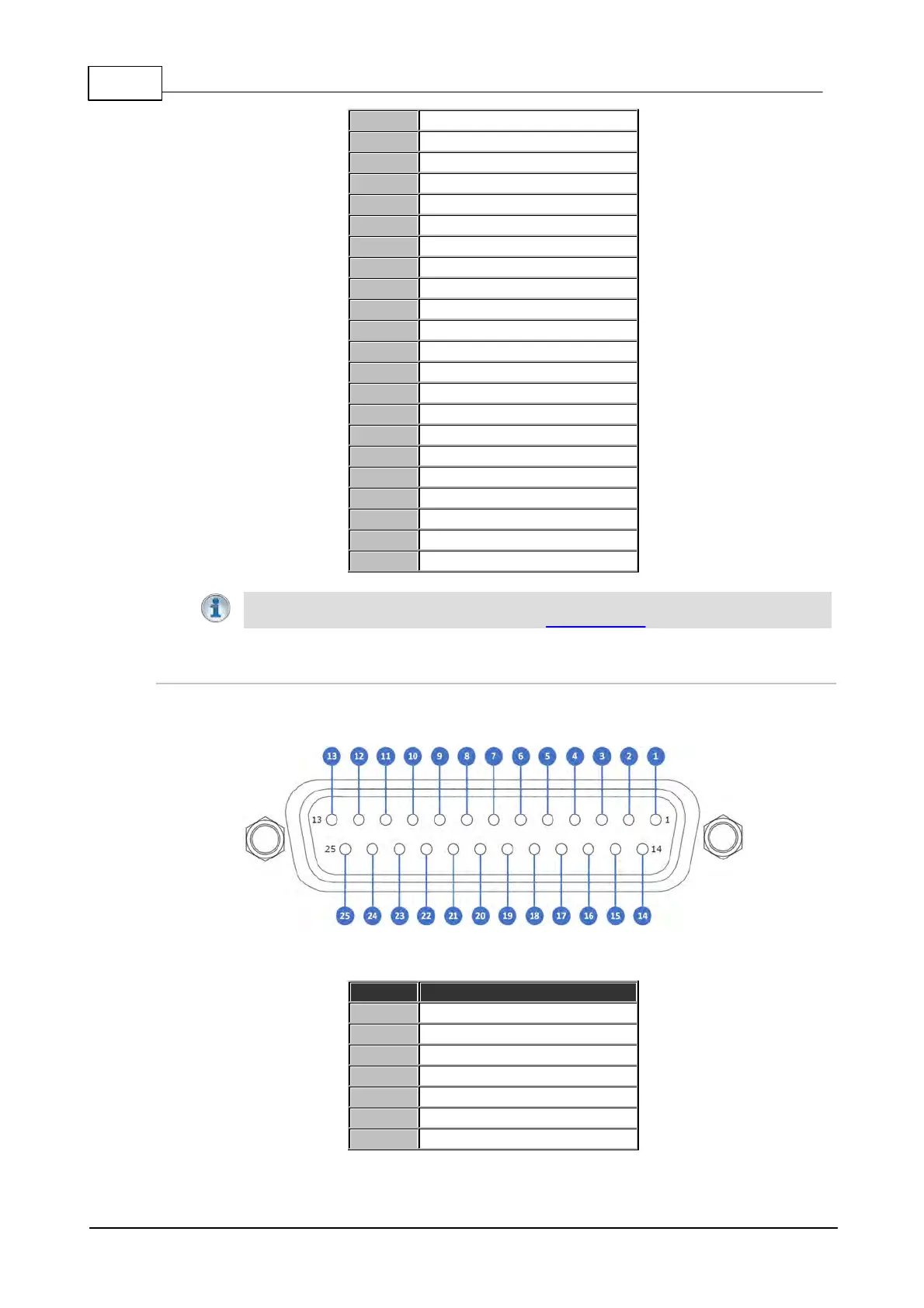

Control Port Pin-outs 9-16 (Gateway 8/16 Only)
A closing contact across Inputs 9-16 to Ground will provide a closing contact on remote codec
Outputs 9 to 16.
Female DB25
Codec Connector I/O 9-16
Pin
Pin Function
1
Output 9
2
Output 10
3
Output 11
4
Output 12
5
Output 13
6
Output 14
7
Output 15
