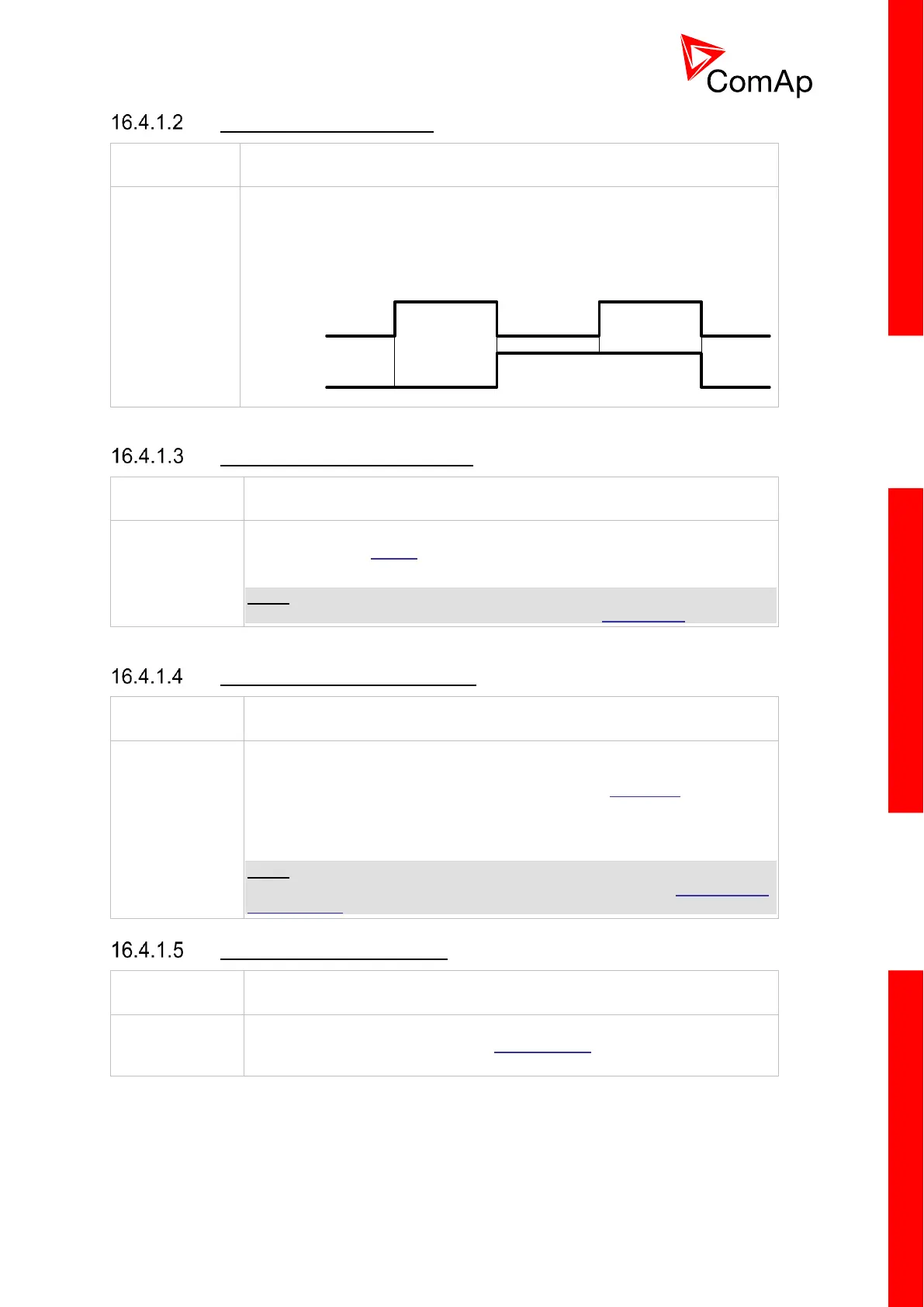

This output should be used in case that two batteries for starting are used.
Batter B output switches between two alternative sources of power, battery A
and battery B. Battery B output is opened for the first cranking cycle which is
designated for Battery A and closes for the second cranking cycle which is
designated for Battery B (in case that two batteries for cranking are used).
Starter
(=Cranking)
Battery B
1st attempt 2nd attemptCrank pause
Battery A in use Battery B in use
Binary output: Fuel Solenoid
This output is dedicated to controlling the fuel solenoid (valve). The output is
closed 0.5 before Starter and remains closed all the time the gen-set shall
run.
NOTE:
Learn more about starting procedure in the chapter Engine start.
Binary output: Stop Solenoid
This output is dedicated to control the stop solenoid (valve). The output is
closed in the moment when the gen-set shall stop and remains active until
the gen-set is stopped, but at least for time period of Stop Time. If the Stop
time has elapsed and the engine is still not stopped, the stop solenoid is de-
energized for 5 and then energized again for max. Stop time and this
repeats until the engine is stopped.
NOTE:
Learn more about evaluation of stopped engine in the chapter Stopped gen-
set evaluation.
Binary output: Stop Pulse
This output will give a 1 pulse whenever a stop command is issued to the
gen-set, i.e. when the binary output Stop Solenoid is activated.
