MAINTENANCE
TE3O715A

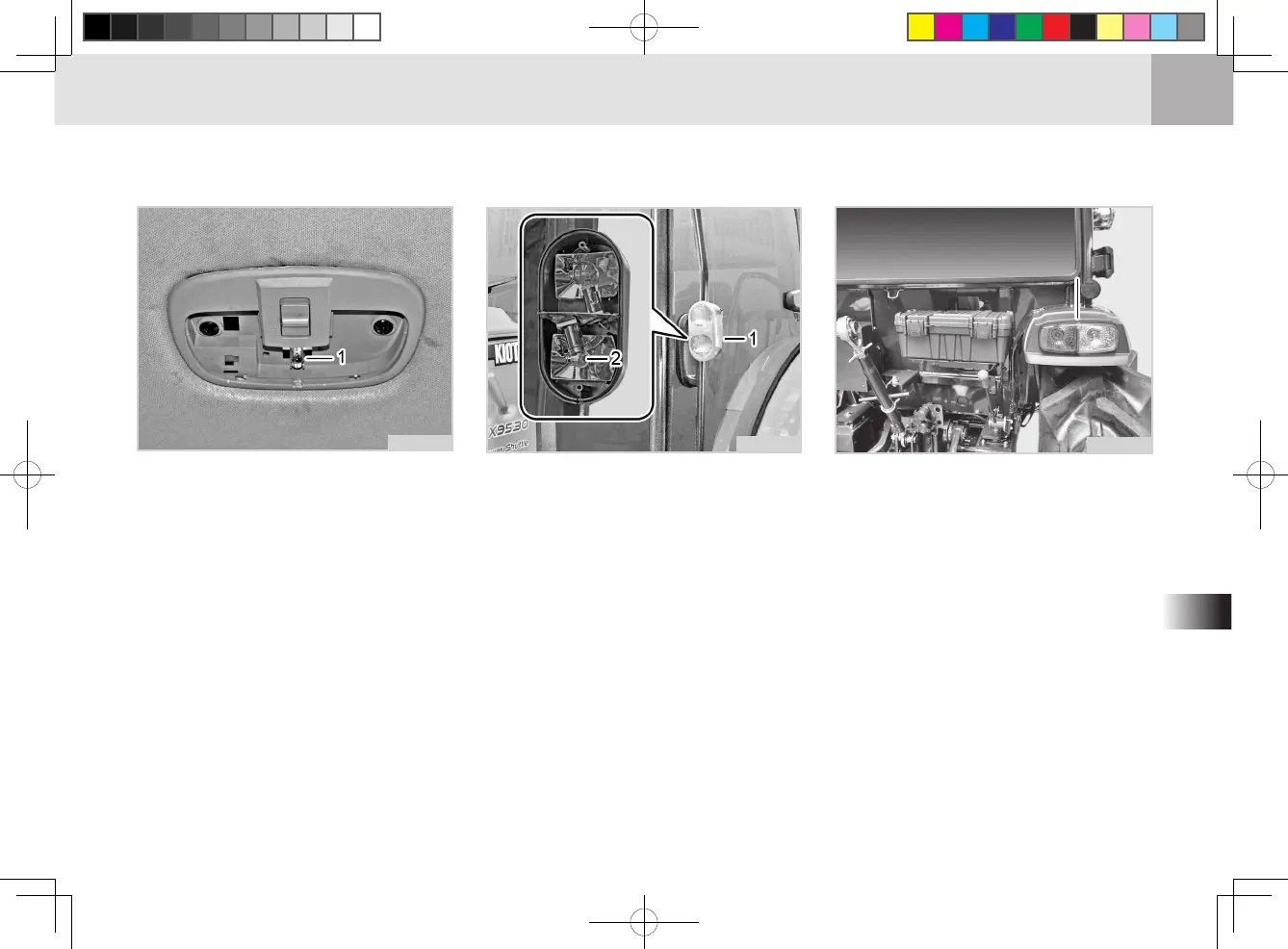

(1) Room Lamp Bulb
2. Remove the room lamp bulb by
pulling it up. Install a new bulb.
TURN SIGNAL LAMP (FRONT)
(1) Turn Signal Lamp (FRT)
(2) Turn Signal Lamp (FRT) Bulb
1. Remove the cap and unscrew the
mounting bolts to remove the front
turn signal lamp assembly.
2. Turn the bulb body counterclockwise
to remove it.
3. Remove the bulb by pressing it
down lightly and install a new bulb.
Fit the socket to the grooves and
turn it clockwise.
TG2O739B
REAR TURN SIGNAL LAMP AND
POSITION LAMP
(1) Turn Signal Lamp
1. The rear turn signal lamps are
mounted on the rear fender.
1
1
11
D21O715A
