DRIVING COMBINE HARVESTERDSF75
GT
6
-
6
6
-
7
DRIVING COMBINE HARVESTERDSF75
GT
6
-
6
5. Set and x the unloader to its sup-
port.
6. Confirm that the horn and head-
lamps are correctly operated.
7. Place the reaping and threshing
clutch levers in the OFF position
and the main shift lever in the OFF
position, and start the engine. Set
the engine speed over 2,000 RPM.
(The engine cannot be started un-
less the main shift lever is in the
"OFF" position.)
cf1O607a

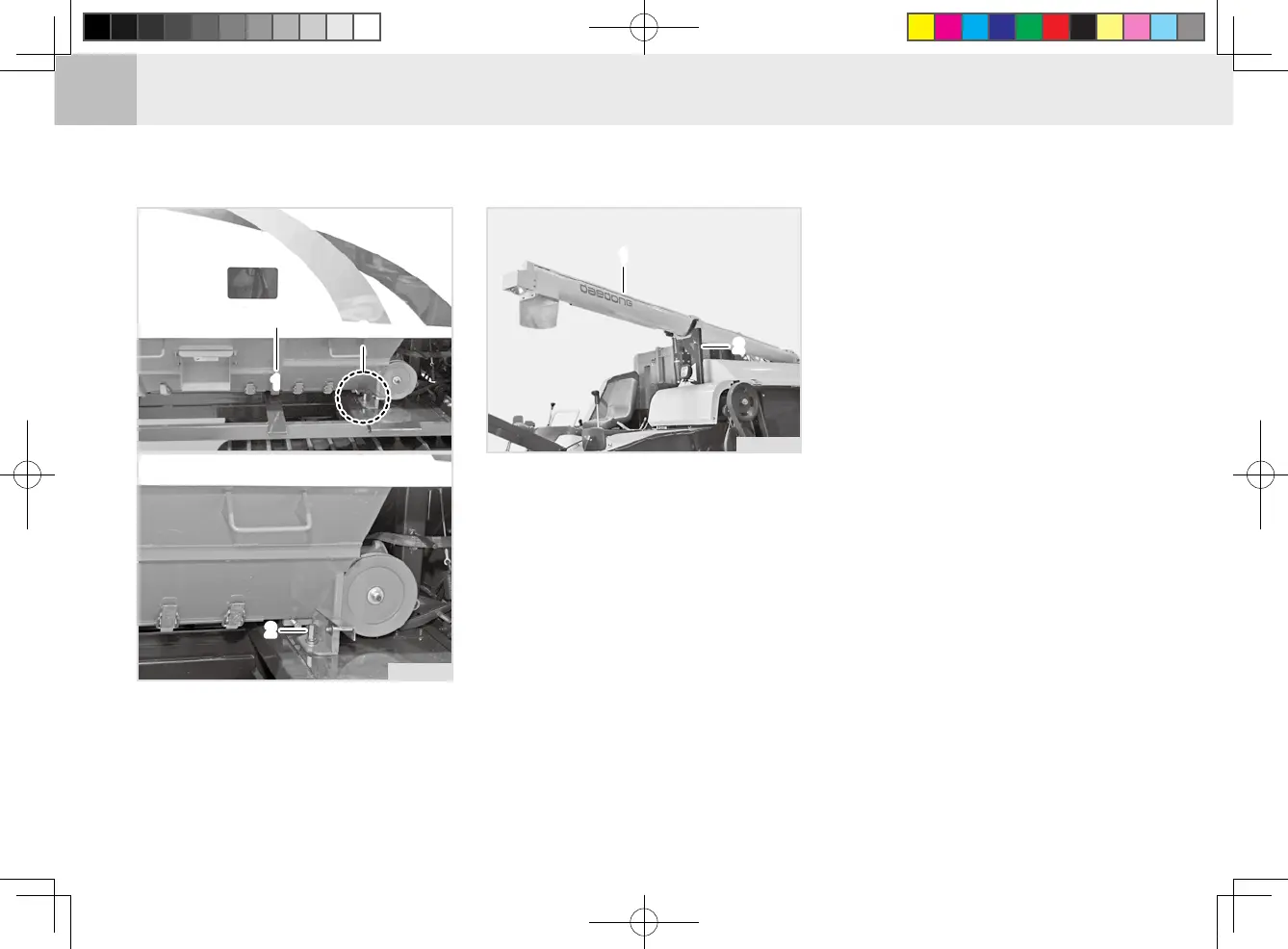

(1) Grain Tank (2) Fixing Bolt
3. Fix the grain tank to the vehicle
body with the xing bolt.
4. Fit the lower cover to the grain
tank.
cf1O606a
8. Lift and fix the reaping unit with
the power steering lever.
9. To steer the vehicle, move the
power steering lever to the left or
right gently.
(1) Unloader (2) Support
