Daedong DSF75GT - Oiling Chain Drive Case; CHECKING OIL LEVEL IN OIL TANK; CHECKING FAN DRIVE BELT

8
-
41
MAINTENANCED
SF75GT
8
-
40
8
-
41
MAINTENANCED
SF75GT
8
-
40
8

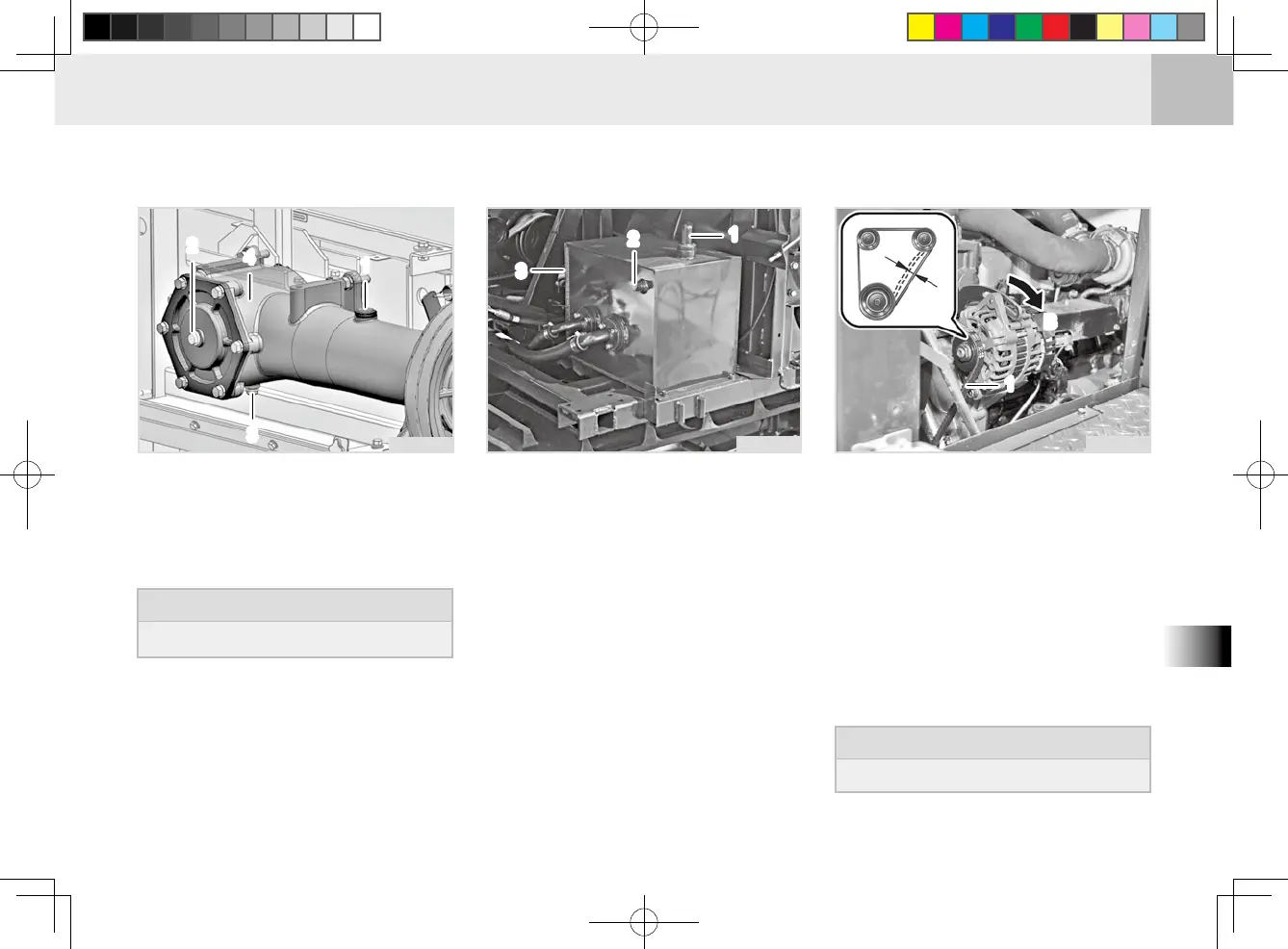

OILING CHAIN DRIVE CASE
Gear oil #90 or #80 or Daedong UTF55
1.5 L
Loosen the inspection bolt and check
for oil.
(1) Oil Filler (2) Inspection Bolt
(3) Drain Plug
(4) Threshing Unit Drive Case Assembly
22
111
33
4
4
CF1O888A
CHECKING OIL LEVEL IN OIL TANK
When unscrewing the inspection bolt
(M17), a small amount of oil owing
out of the hole means that the oil
level is proper.
If oil is insufficient, add oil through
the ller hole using a funnel.
(1) Oil Filler (2) Oil Gauge
(3) Oil Tank
11
2
2
3
3
CF1O813A
(1) Fan Drive Belt
(A) Deection (B) Pull
Check the deection of the fan drive
belt by pressing its center with force
of 10 kgf with a thumb. If the deect-
ed amount is over the specication,
unscrew the battery mounting bolt.
Then, tighten the mounting bolt while
pulling the battery to adjust the ten-
sion.
CHECKING FAN DRIVE BELT
Deection at center of belt
5 - 10 mm
11
B
B
A
CF1O814A
