When opening the cutter, pulling
the lever abruptly can open the
cutter very fast, resulting in an
injury. Make sure to remove and
install the cover with care.
•
CAUTION
Remove any grains remained in the
vehicle body after harvesting to avoid
mixture of varieties.
CLEANING INSIDE OF VEHICLE BODY
Disengage the threshing clutch and
stop the engine before adjustment,
inspection, replacement, removal/
installation and manual cleaning.
Fix the threshing cylinder and
close the grain tank and cutter dur-
ing idling.
When closing the cleaning-out,
move the lever 2 to 3 times to
check that no grains are attached
to the cleaning-out.
Cl
ean the vehicle body after drying
it. If the body is wet, grains tend to
remain inside the vehicle.
Fi
x the cover onto the cleaning-out
after cleaning. Grains may fly out
of it if it has no cover.
Re
move straws from the blower
shaft.
M
ake sure to clean the No. 1 auger
case after reaping watery crops.
•
•
•
•
•
•
•
CAUTION

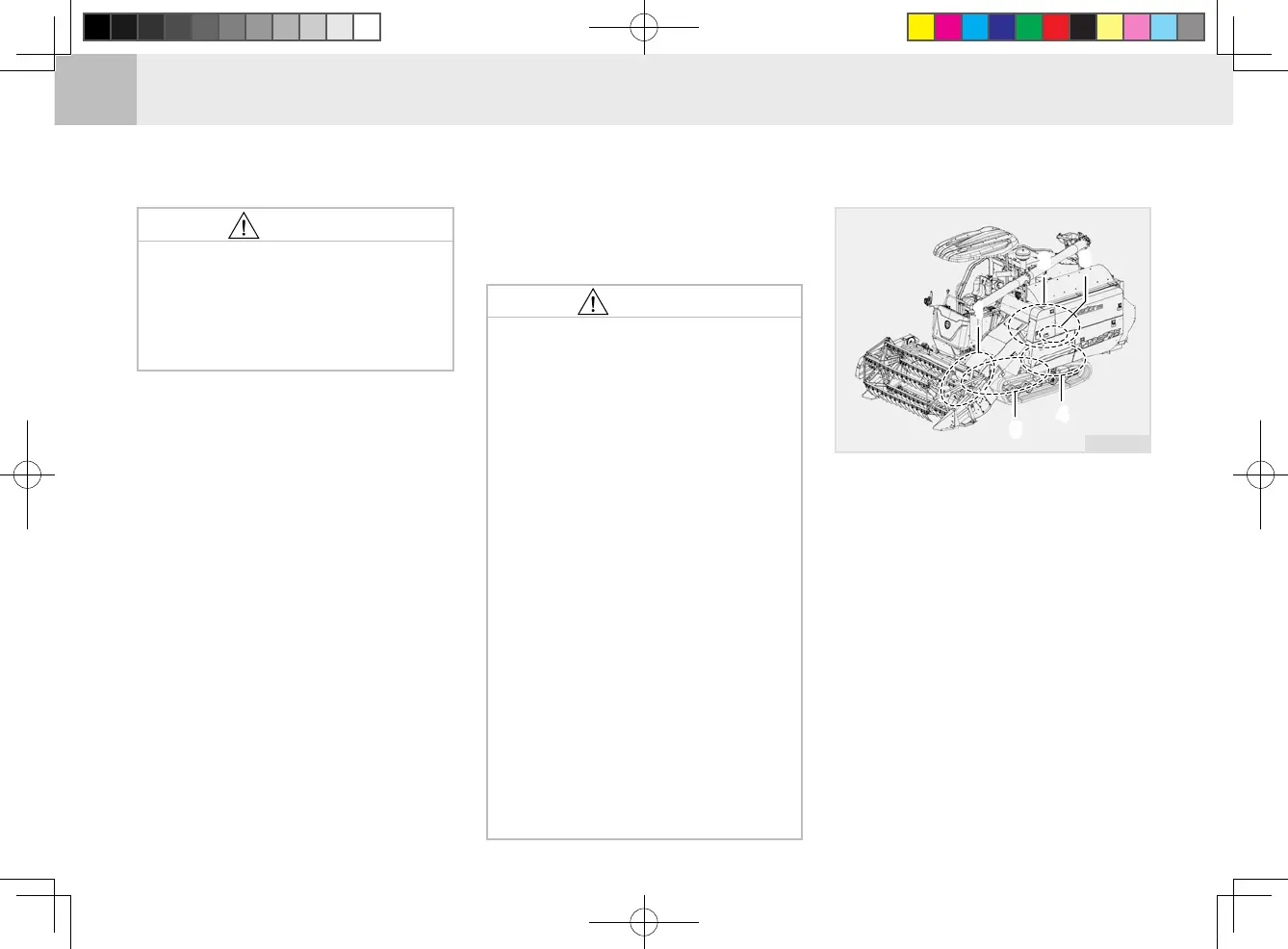

CLEANING SECTIONS (BODY)
CF1O850B
(1) Inside Of Feeding Unit Clean-out
(2) Inside Of Threshing Cylinder
(3) Inside Of Threshing Cylinder Side Cover
(4) Inside Of Clean-out On Left Plate Of
Threshing Unit, Inside Of Threshing Unit
Side Cover
(5) Below No. 1 And 2 Horizontal Augers
