PARKING BRAKE

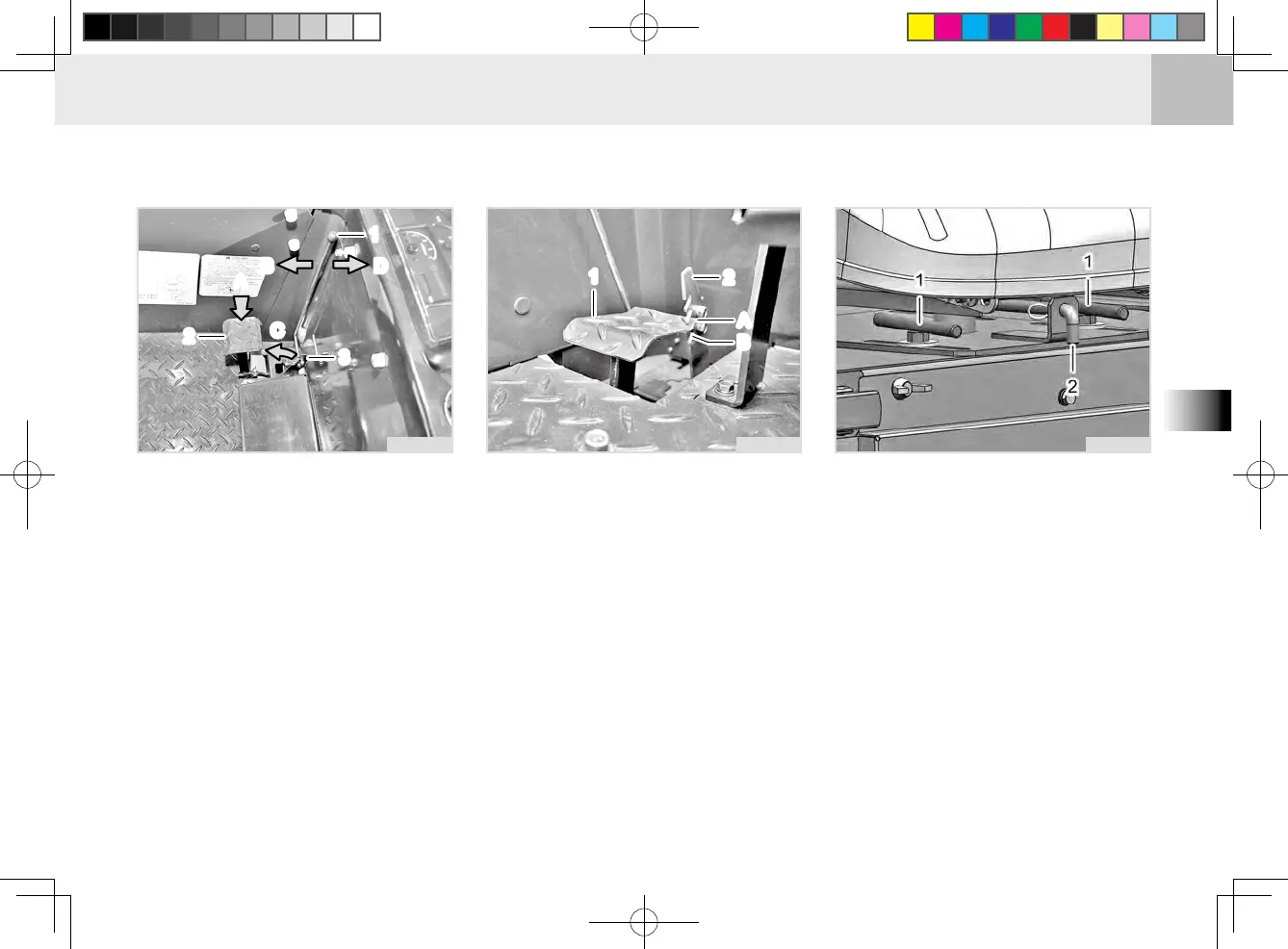

(1) Parking Brake Lever (2) Parking Brake Pedal
(3) Stopper
(A) Depress (B) Pull
(C) Lock (D) Unlock
1. To apply the parking brake, depress
the parking brake pedal rmly and
lock it with the parking brake lever.
To release it, depress the parking
brake pedal rmly again.
2. Make sure to release the parking
brake when starting off and driving.
If not, the brake shoe can be prema-
turely worn or damaged, resulting in
malfunction of the parking brake.
cf1O412A
(1) Parking brake pedal (2) Stopper
(A) 3rd hole (B) 4th hole
3. To apply the parking brake, lock
the pedal to the 3rd or 4th hole of
the block.
SEAT
(1) Mounting Bolt (2) Seat Fixing Pin
cf1O443A
To adjust the height of the seat, re-
move the seat fixing pin and move
the seat up and down as desired
before fixing the seat at the proper
position.
To adjust longitudinal position of the
seat, remove the mounting bolt, slide
the seat forward/backward to the
desired position and t the mounting
bolt.
