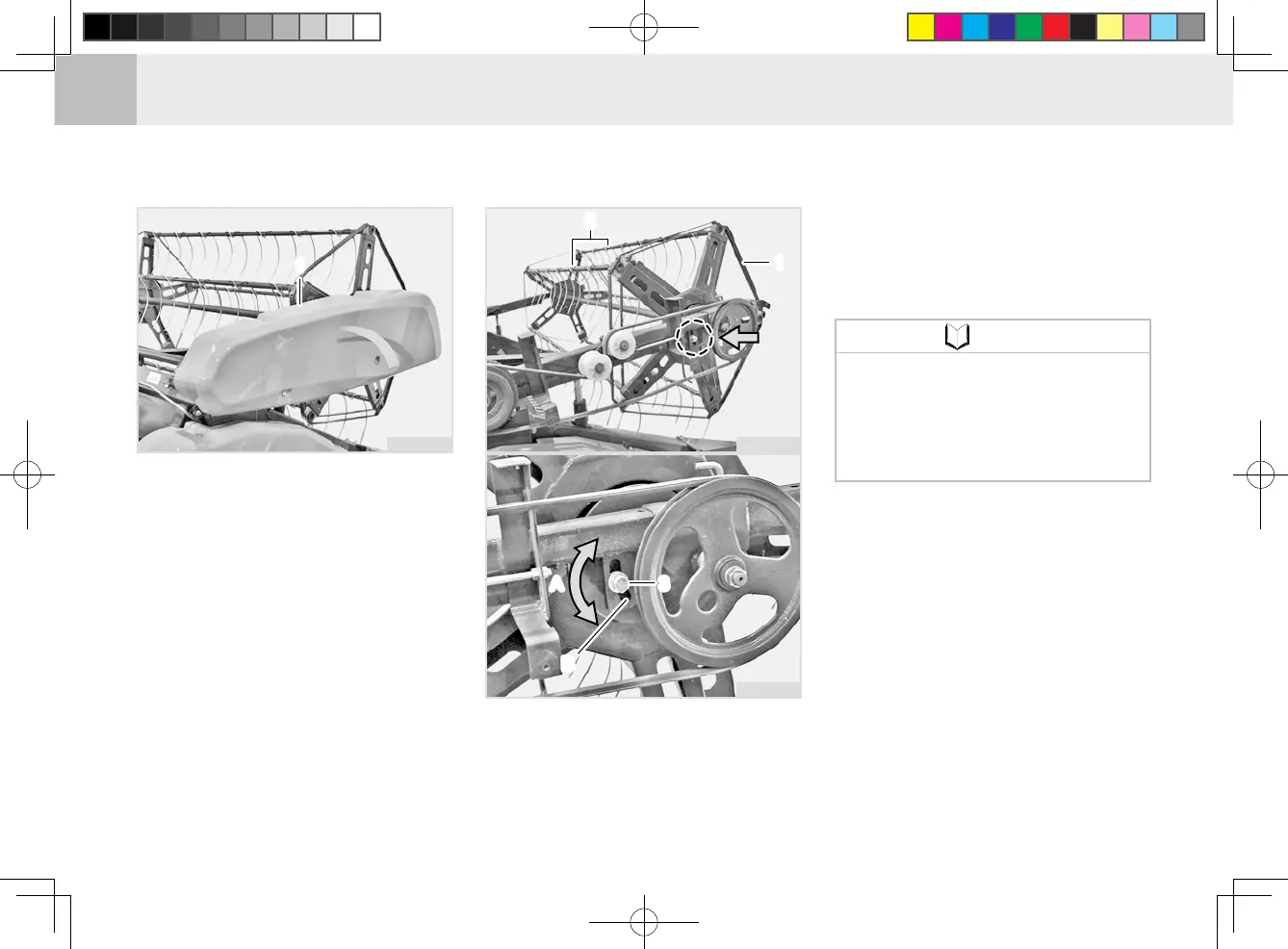

REEL TINE ANGLE ADJUSTMENT
11
cf1O714a
When reaping lodged crops, adjust
the angle of the reel tine according
to the reel rotating direction in case
crops are left in front of the auger.
1. After lowering the reel to the low-
est position, lower the reaping unit
to the ground.
2. Stop the engine.
3. Remove the side cover of the reel.
(1) Reel Cover
1
2
1
2
cf1O715a
3A
B
3A
B
cf1O716B
(1) Reel (2) Reel Tine Bar
(3) Screw
(A) Adjust (B) Initial Position
4. Loosen the screw.
5. Move the reel to the most suitable
position while checking the reel
tine angle before xing it.
If cut crops are entangled into
the reel tine and they are not fed
into the reaping unit but fall onto
the ground (reel spinning), adjust
the angle again.
•
