cf1O717a

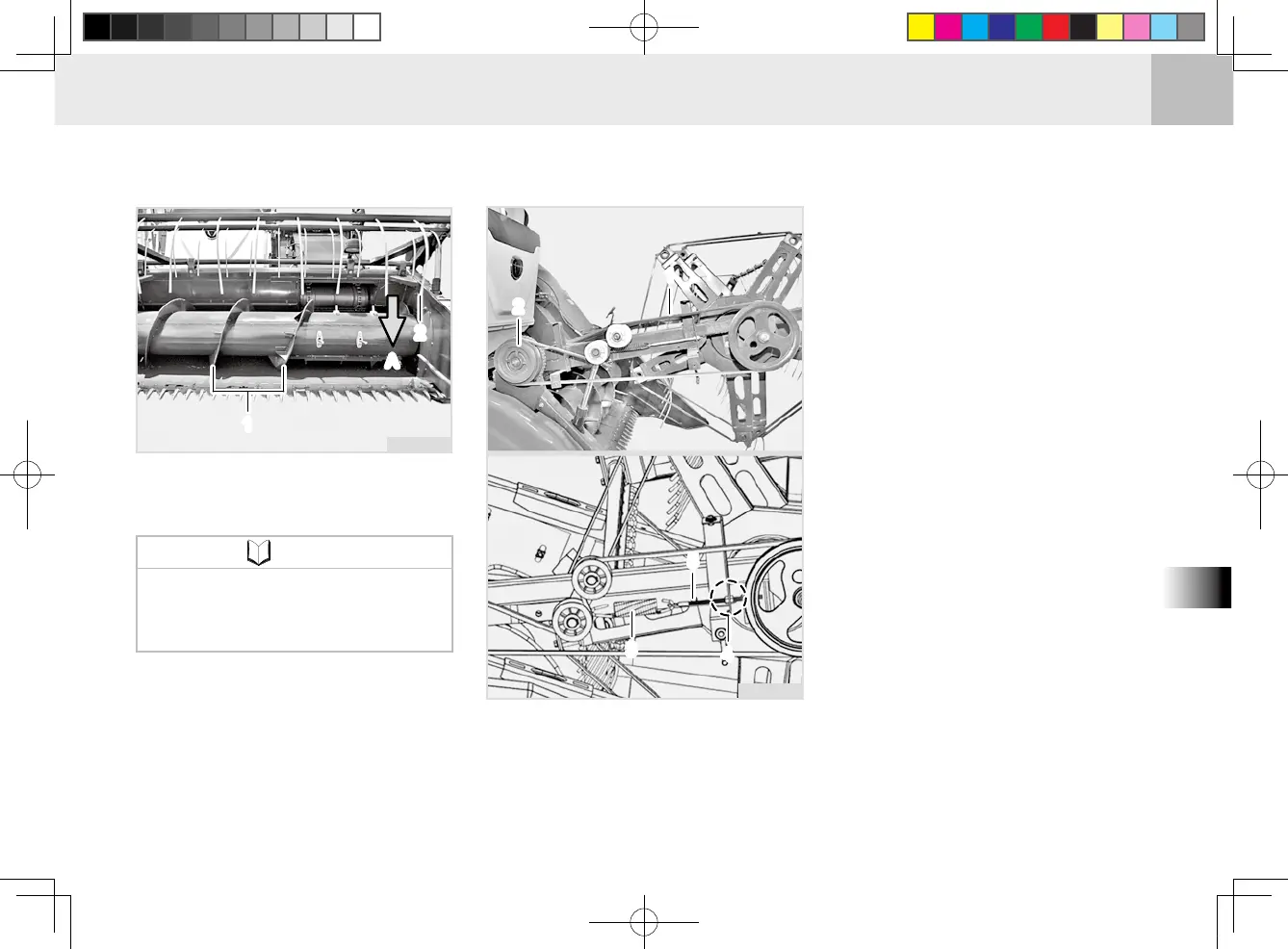

(1) Auger Blade (2) Reel Tine
(A) Lower
If the auger blade hits the reel
tine when the reel is lowered, re-
adjust it.
•
NOTE
ADJUSTING REEL ROTATING SPEED
cf1O718B
(1) Reel Drive Belt (2) V-pulley
(3) Tension Spring (4) Lock Nut
(5) Adjusting Bolt
If crops collected by the reel tines are
scattered excessively before being
fed to the reaping unit (grain loss),
change the reel drive belt pulley and
adjust the reel rotating speed.
1. After lowering the reel to the low-
est position, lower the reaping unit
to the ground.
2. Stop the engine.
3. Remove the side cover of the reel.
4. Loosen the lock nut and release
the tension of the belt by adjusting
bolt (5).
5. Remove the reel drive belt from
the V-pulley (2) and t it to groove
on another side.
To Next Page
