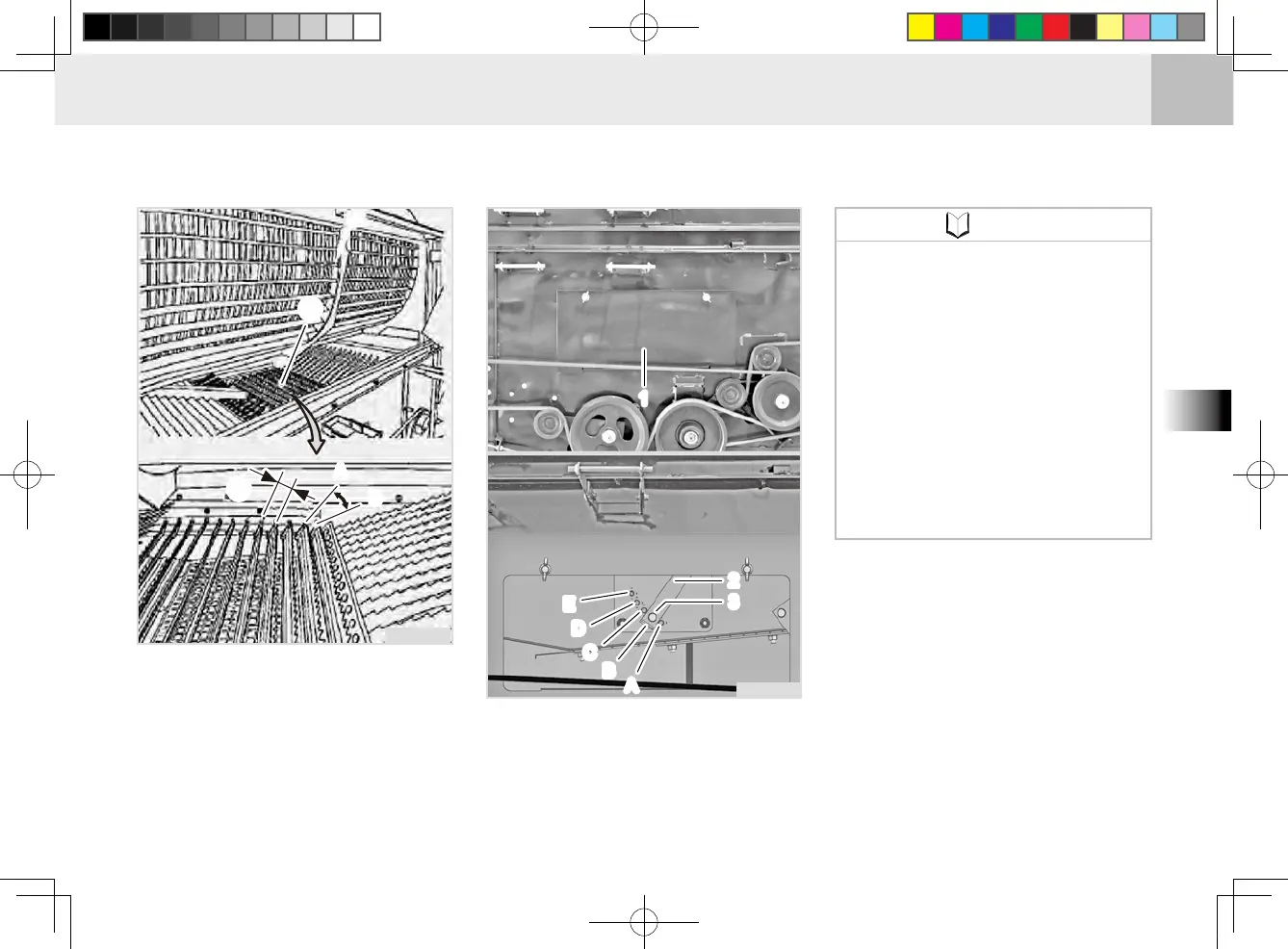

SIEVE CASE SIEVE CONTROL LEVER
This lever is used to adjust the spac-
ing (opening) of the sieve of the
sieve case depending on threshed
grains condition.
(1) Sieve Case Sieve (2) Space (Opening)
(A) Open (Fully Open)
(B) Close (Fully Closed)
cf1O456A
1
2
A
B
C
D
1
2
33
A
B
C
D
EE
(1) Clean-out Cover On Left Plate Of Threshing Unit
(2) Sieve Case Chaff Control Lever
(3) Lock Bolt
(4) Adjust
(A) 1st (Closed) (B) 2nd
(C) 3rd (D) 4th (Standard)
(E) 5th (Open)
cf1O420B
The sieve case chaff control
lever is visible and accessible
when the threshing unit left cov-
er and clean-out cover of the left
plate are removed.
The spacing (opening) of the
sieve case can be adjusted in
5 stages using the sieve case
chaff control lever.
The sieve case chaff control
lever is set in the 4th position
(standard) at factory.
•
•
•
