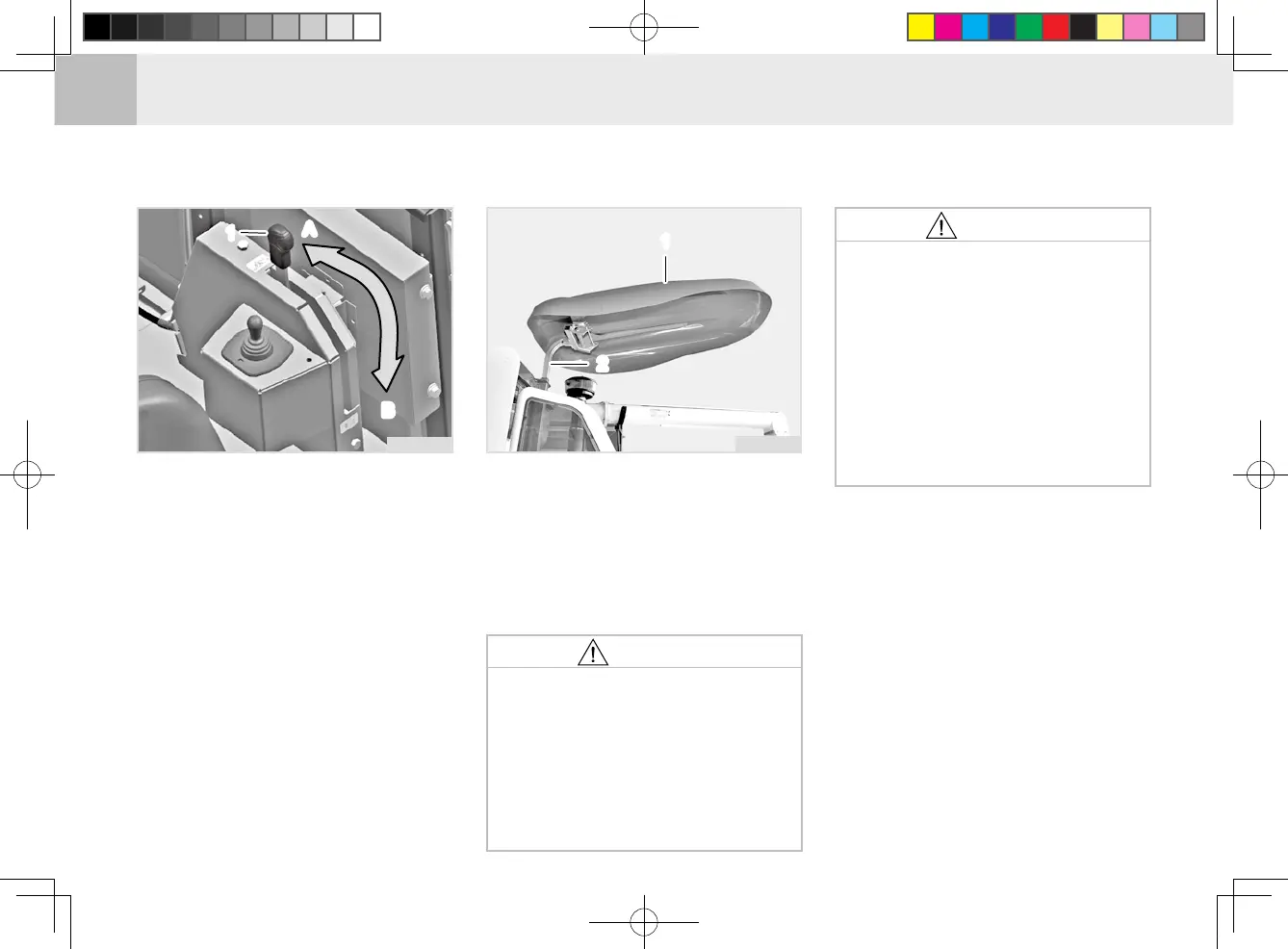

DISCHARGE CLUTCH LEVER
This lever is used to discharge grains
from the grain tank.
• Engage: Discharging grains
• Disengage: Stopping discharging
grains
(1) Discharge Clutch Lever
(A) Disengage (B) Engage
cf1O421B
USING THE CANOPY
HOW TO ADJUST THE CANOPY
Adjust the roof pole and cover angle
according to the sunshine amount
and other conditions, such as trans-
portation or storage.
(1) Canopy (2) Canopy Pole
cf1O422A
• Be careful not to get your face
or head injured by the canopy
during the following opera-
tion:
- Reaping operation
- Adjusting or folding the can
-
opy
CAUTION
Before transporting the com-
bine with a trailer or storing
the combine in a garage, fold
the canopy. As the canopy can
be damaged by wind during
transportation, x it rmly with
ropes. If the canopy is hit by a
tree or wire during transporta-
tion, it can be damaged and
dangerous to pedestrians.
•
CAUTION
To Next Page
