Daedong DSF75GT - Power steering lever

4
-
13
STRUCTURE AND
OPERATIONDSF75GT
4
-
12
4
-
13
STRUCTURE AND
OPERATIONDSF75GT
4
-
12
B55O429A

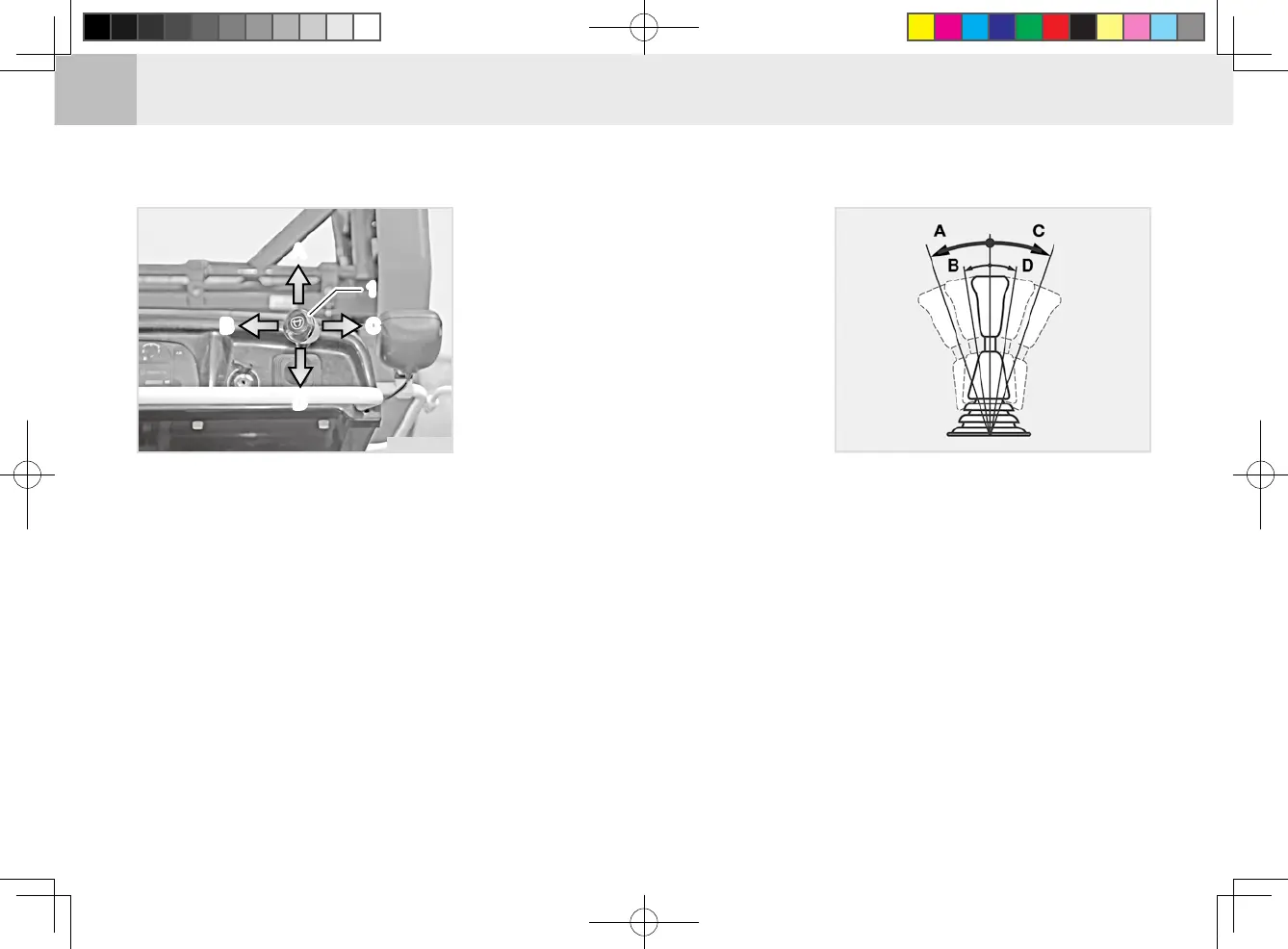

POWER STEERING LEVER
(1) Power Steering Lever
(A) Lower Reaping Unit
(B) Left Turn (C) Right Turn
(D) Raise Reaping Unit
(A) Left Turn (Fast) (B) Left Turn (Slow)
(C) Right Turn (Fast) (D) Right Turn (Slow)
2. Move the power steering lever
to the left or right to adjust the
moving direction. The amount
of movement of the lever deter-
mines the change of steering
angle. Move the lever according
to the current condition.
• Soft turn- Push the lever to the
left/right gently.
• Quick turn - Push the lever to the
left/right fully.
1
A
C
D
B
1
A
C
D
B
cf1O410A
1. The power steering lever is used
to switch the driving direction and
control the vertical movement of
the reaping unit. Move the lever
forward/backward to lift/lower the
reaping unit.
• Up - The driving direction of the
machine and height of the
reaping unit can be simultane-
ously adjusted with this lever.
• Down - The reaping unit can be
lifted and lowered by push-
ing
and pulling the lever.
