OPENING AND CLOSING EACH SECTION
OPENING ENGINE
COMPARTMENT
1. This combine harvester is de-
signed for convenient removal/in-
stallation of the threshing unit, full
opening of the engine hood, open-
ing the threshing unit and easy
access to the cutter in order to en-
sure easy inspection and service
of the internal parts.
2. Make sure to stop the engine be-
fore opening or closing each part.
CF1O801A

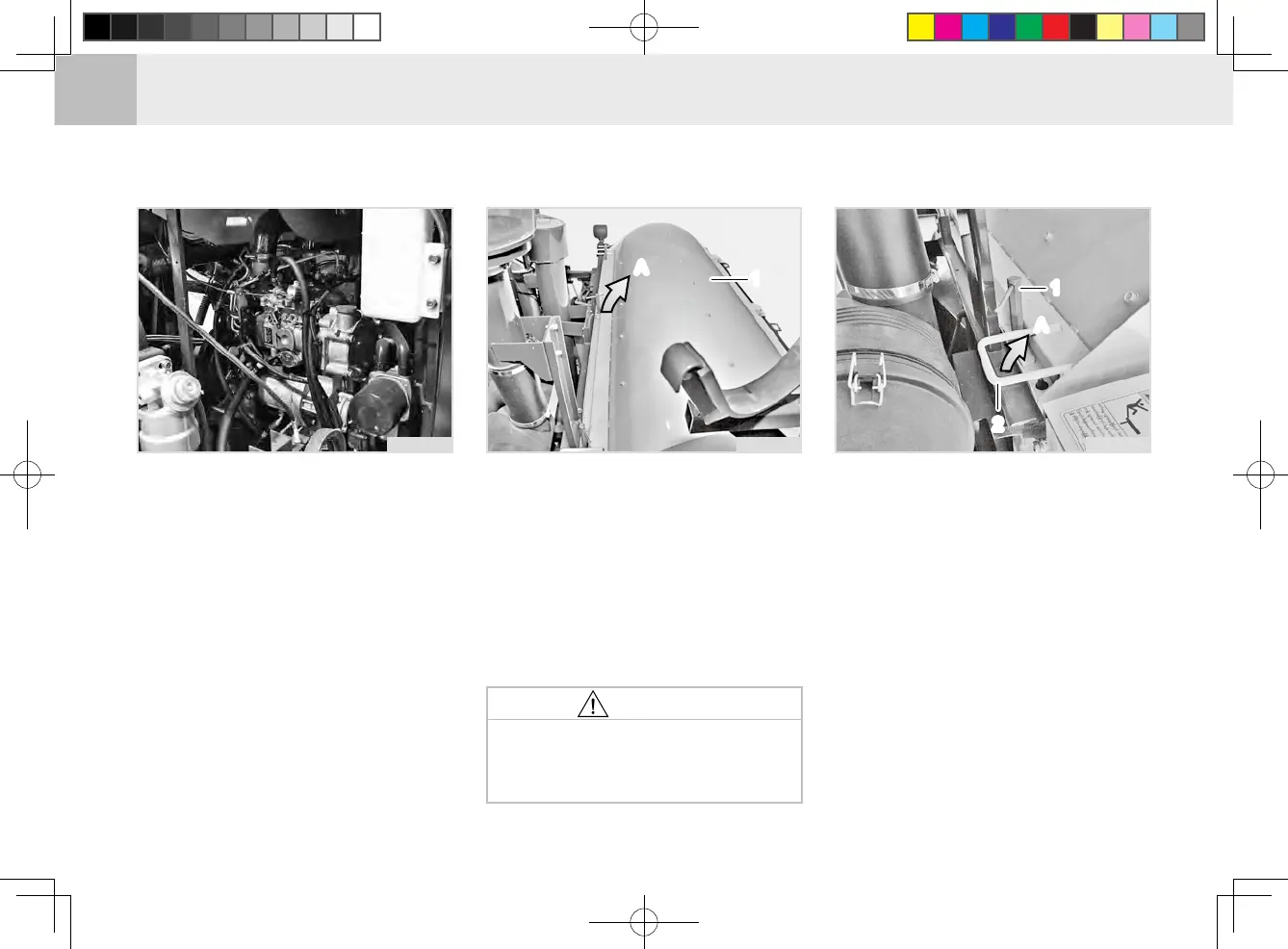

OPENING THRESHING UNIT
TOP COVER
(1) Fixing Handle (2) Handle
(A) Pull Up
1. After lifting the unloader, unscrew
the fixing handle and pull up the
handle to open the cover.
HOW TO OPEN
CF1O831A
(1) Threshing Unit Top Cover
(A) Open
1. If the threshing cylinder is clogged
by straws, open the threshing
unit top cover to remove them.
2. O pe n t h e t h re s h i n g u n i t to p
cover as well to remove or install
the threshing cylinder concave.
Make sure to close the thresh-
ing cylinder cover before reap-
ing or driving.
•
CAUTION
To Next Page
