1. When disconnecting the battery ca-
bles, disconnect the negative cable
rst. (Otherwise, a short circuit can
occur when touching it with a tool.)
2. When connecting the battery, con-
nect the positive battery cable first
and then the negative battery cable.
3. Never connect the battery cables to
the wrong terminals. The electrical
system can be damaged.
4
. Use the specied battery only.
5. Make sure to connect the positive and
negative cables correctly. Especially,
the positive battery cable should not
contact with any sharp edge.

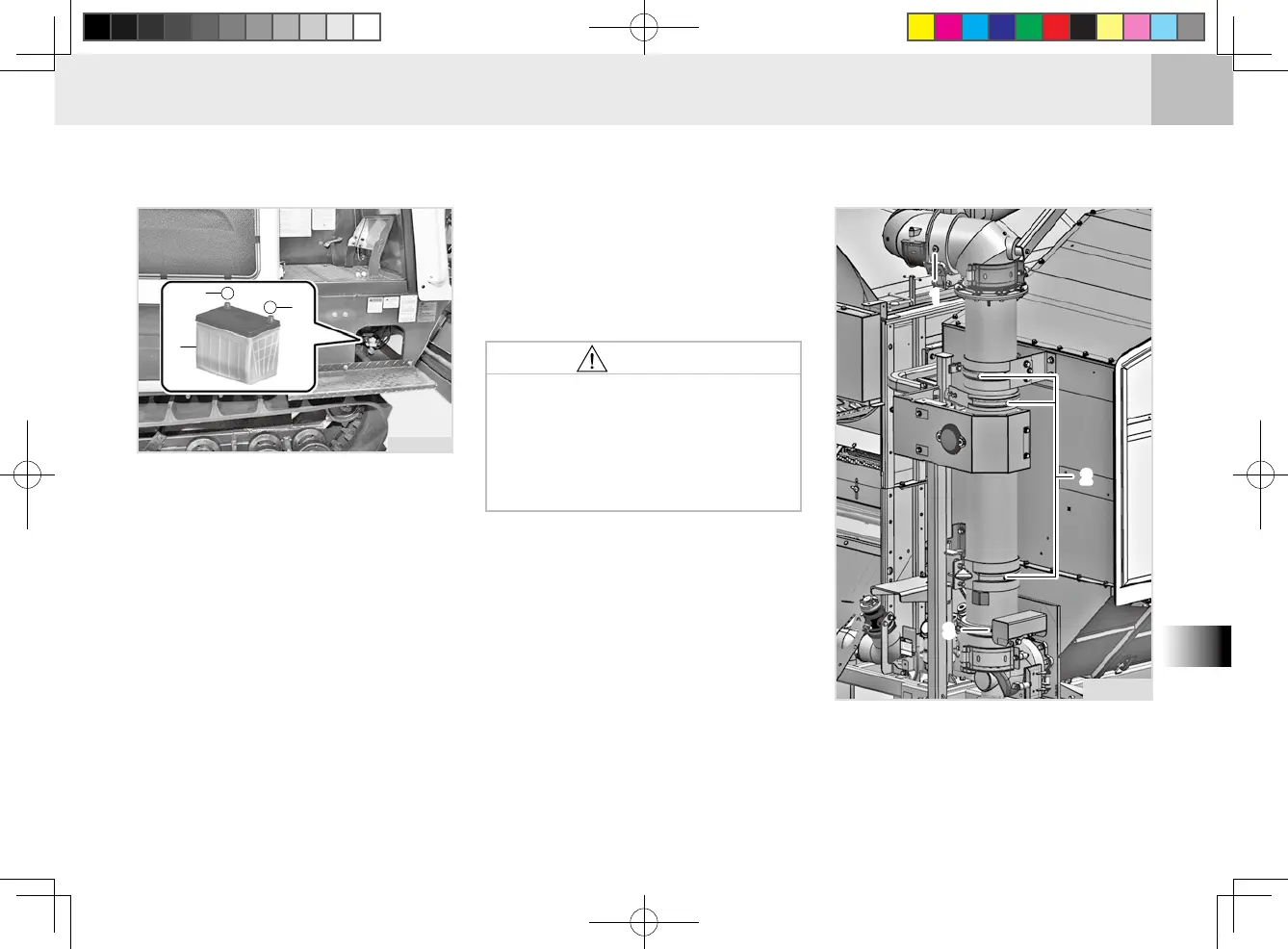

(1) Negative Cable (2) Positive Cable
(3) Battery
REMOVING AND INSTALLING BATTERY
+
-
1
2
3
CF1O806A
CHECKING POSITIVE BATTERY CABLE
If the wiring or positive battery cable
is damaged, a short circuit can occur.
Make sure to check the cable condition.
▶Otherwise,
It can lead to re or damage.
1. The wiring holder is not dam-
aged and the clamp is tight.
2.
They are rmly connected to ter-
minals and contact of the socket.
3. Each switch operates correctly.
CAUTION
GREASING AND LUBRICAT-
ING EACH SECTION
UNLOADER SECTION
(1) Grease Nipple (Unloader Case 3)
(2) Grease Nipple (Unloader Holder)
(3) Grease Nipple (Unloader Case 1)
111
22
3
3
CF1O808B
