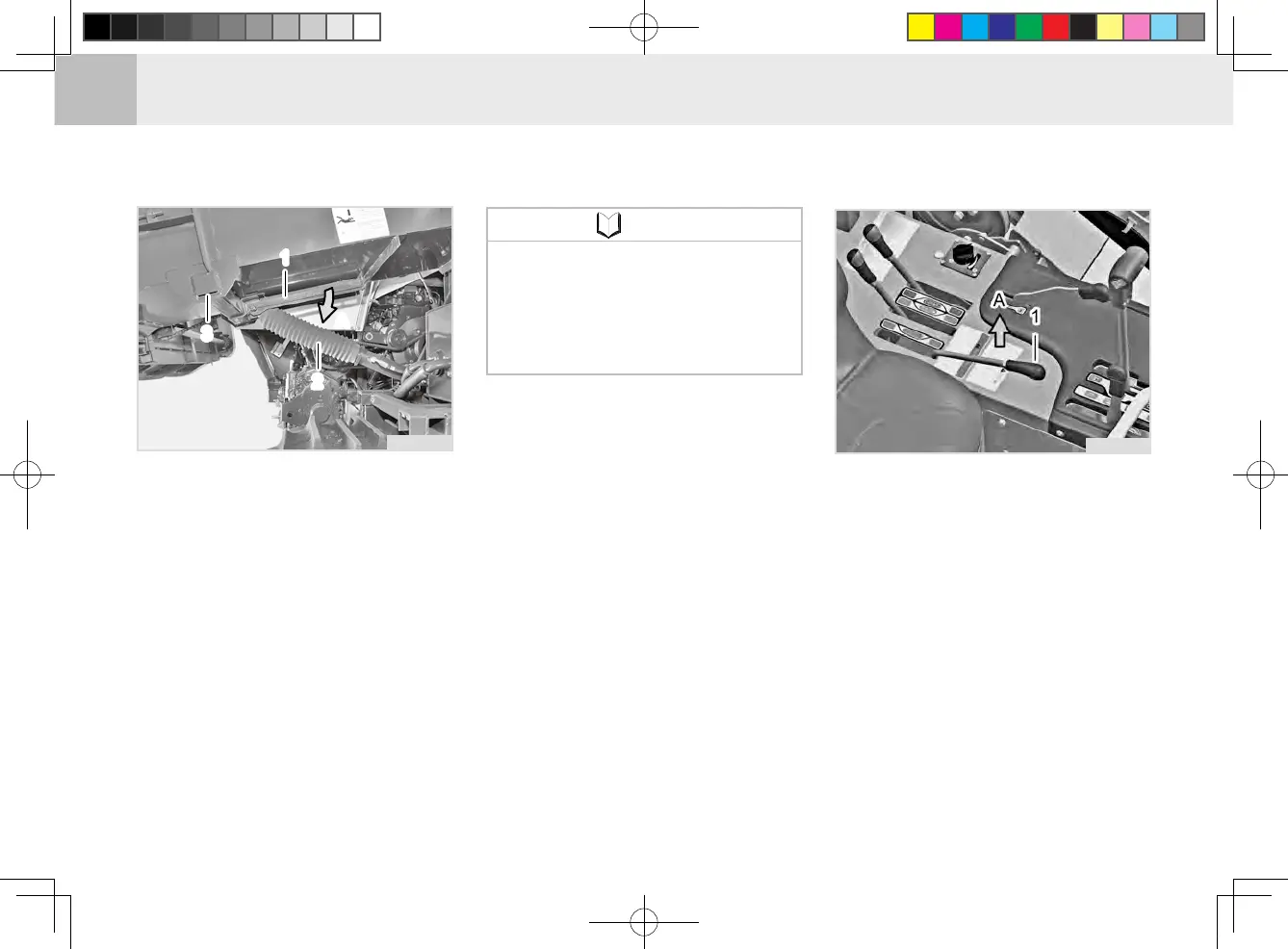

SAFETY DEVICE FOR REAPING UNIT
This is a safety device to prevent the
reaping unit from dropping. When
this safety device is engaged with
the reaping unit hydraulic cylinder,
the reaping unit cannot be lowered
by operating the power steering le-
ver.
To fix the reaping unit, remove the
lock and engage the safety device
with the reaping unit hydraulic cylin-
der.
(1) Safety Device For Reaping Unit
(2) Reaping Unit Hydraulic Cylinder
(3) Reaping Unit (A) Engage
cf1O418A
REAPING UNIT REVERSING
CLUTCH LEVER
If the reaping unit or feeding unit
is producing abnormal noise or is
stopped as they are clogged with
straws, use this lever to turn the
reaping unit in the reverse direction
to remove straws.
(1) Reaping Unit Reversing Clutch Lever
(A) Up
cf1O455A
To reinstall the lock, place it back
to its original position.
The reaping unit cannot be
moved vertically unless the en-
gine
is started.
•
•
NOTE
