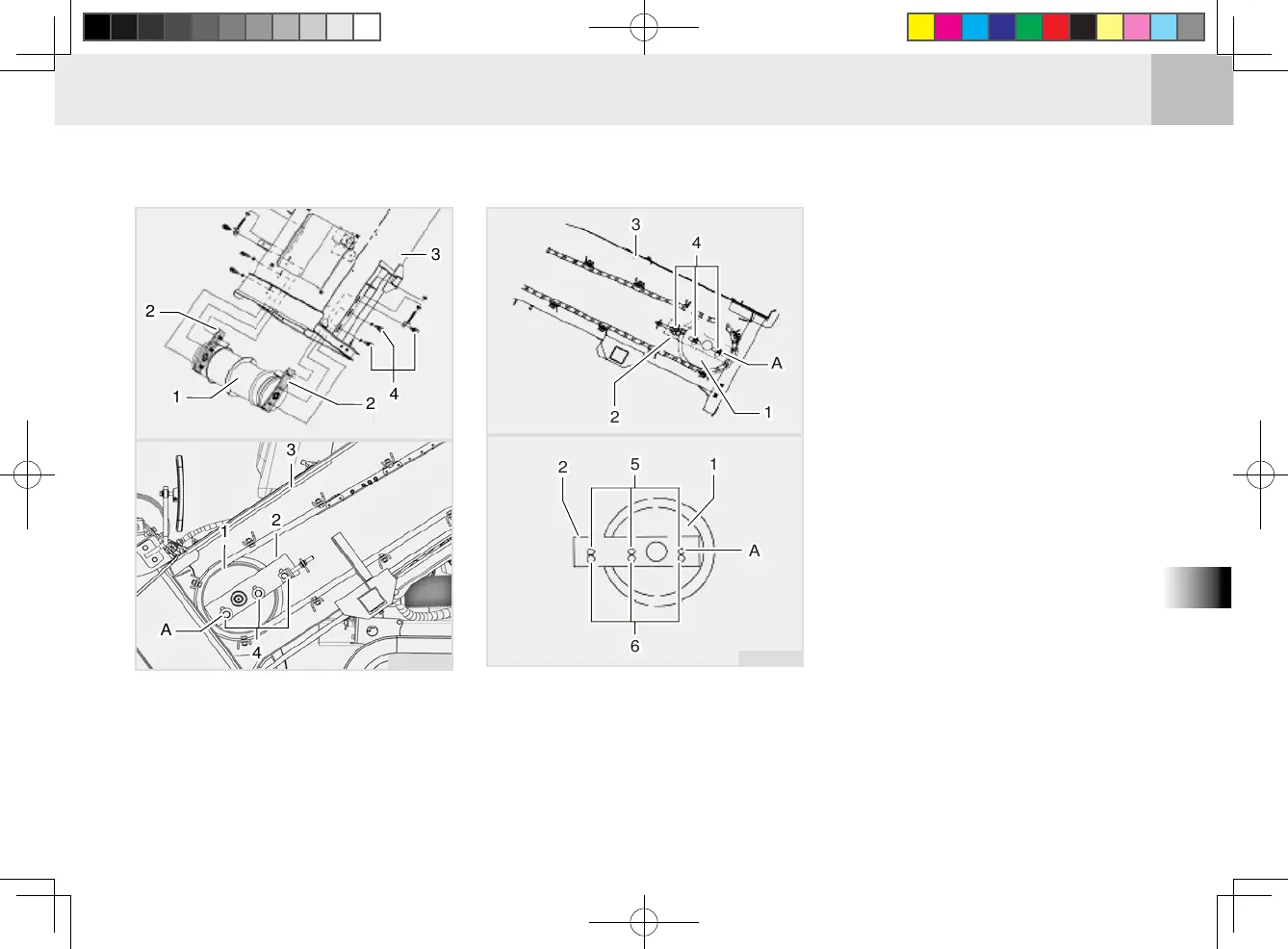

(1) Feeding Drum (2) Drum Support
(3) Feeding Unit (4) Mounting Bolt
(A) Default Position
cf1O746a
1. Lower the reaping unit to the
ground and stop the engine.
2. Remove the right cover of the
feeding unit.
3. Remove the clean-out cover 2 on
top of the feeding unit.
4. Loosen the left and right screws
that fix the feeding drum to the
feeding unit from the feeding drum
mounting panel.
5. With the feeding drum raised, in-
sert the screw into the upper hole
on the top of the drum support to
x the drum in place.
6. Adjust the tension of the feeding
chain.
7. Install the clean-out cover 2 onto
the top of the feeding unit.
1
4
A
A
1
5
6
2
3
2
1
4
A
A
1
5
6
2
3
2
(1) Feeding Drum (2) Drum Support
(3) Feeding Unit (4) Mounting Bolt
(5) Lower Adjusting Hole
(6) Upper Adjusting Hole (Default)
(A) Feeding Drum Lower Position
cf1O747a
