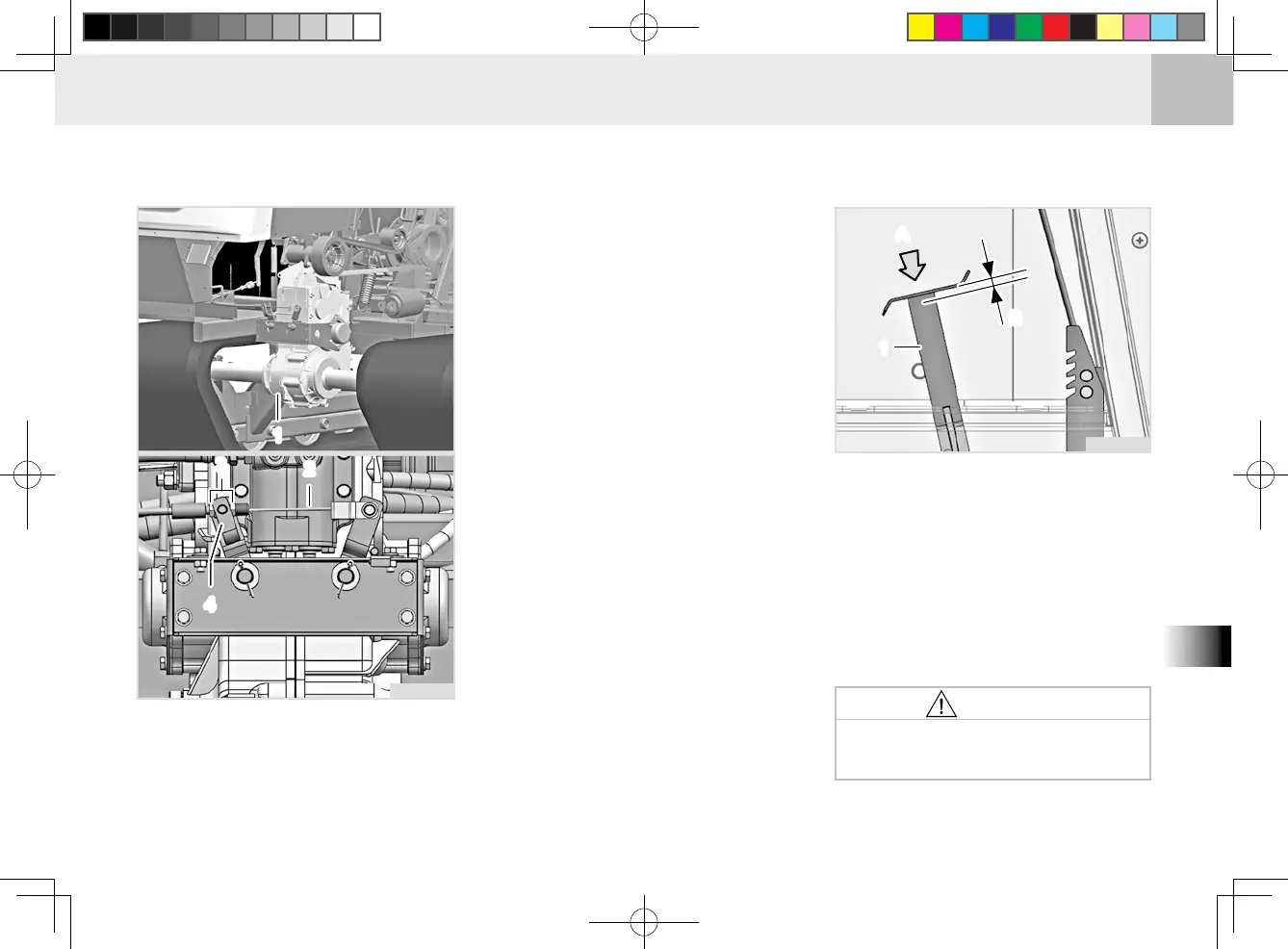

ADJUSTING PARKING BRAKE PEDAL
(1) Transmission (2) Parking Brake Cable
(3) Adjusting Screw
(4) Right-hand Clutch Lever
22
111
33
4
4
CF1O889A
Adjust the free play of the parking
brake pedal to 3 - 10 mm.
1. Raise the reaping unit to the high-
est position and set its safety lock
in the Lock position to prevent it
from dropping. Then, stop the en-
gine.
2.
If the parking brake is applied, re-
lease it.
3. Loosen the adjusting screw that
tightens the right-hand clutch lever
of the transmission.
4. Press the brake pedal with your
hand gently to check for free play
(backlash).
5. If the free play of the brake pedal
is not within 3 - 10 mm range, ad-
just it with the adjusting
A
B
111
A
B
CF1O890A
(1) Parking Brake Pedal
(A) Press Gently With Hand
(B) Free Play (Backlash): 3 - 10 Mm
6. Tighten the adjusting nut.
7. When engaging the pedal fixing
lever, make sure that the brake
pedal plate is engaged with the
3rd or 4th groove of the xing le-
ver.
Replace it every 300 hours of
use or every 2 years.
•
CAUTION
