6. Adjust the tension of the tension
spring.
7. Install the side cover of the reel.

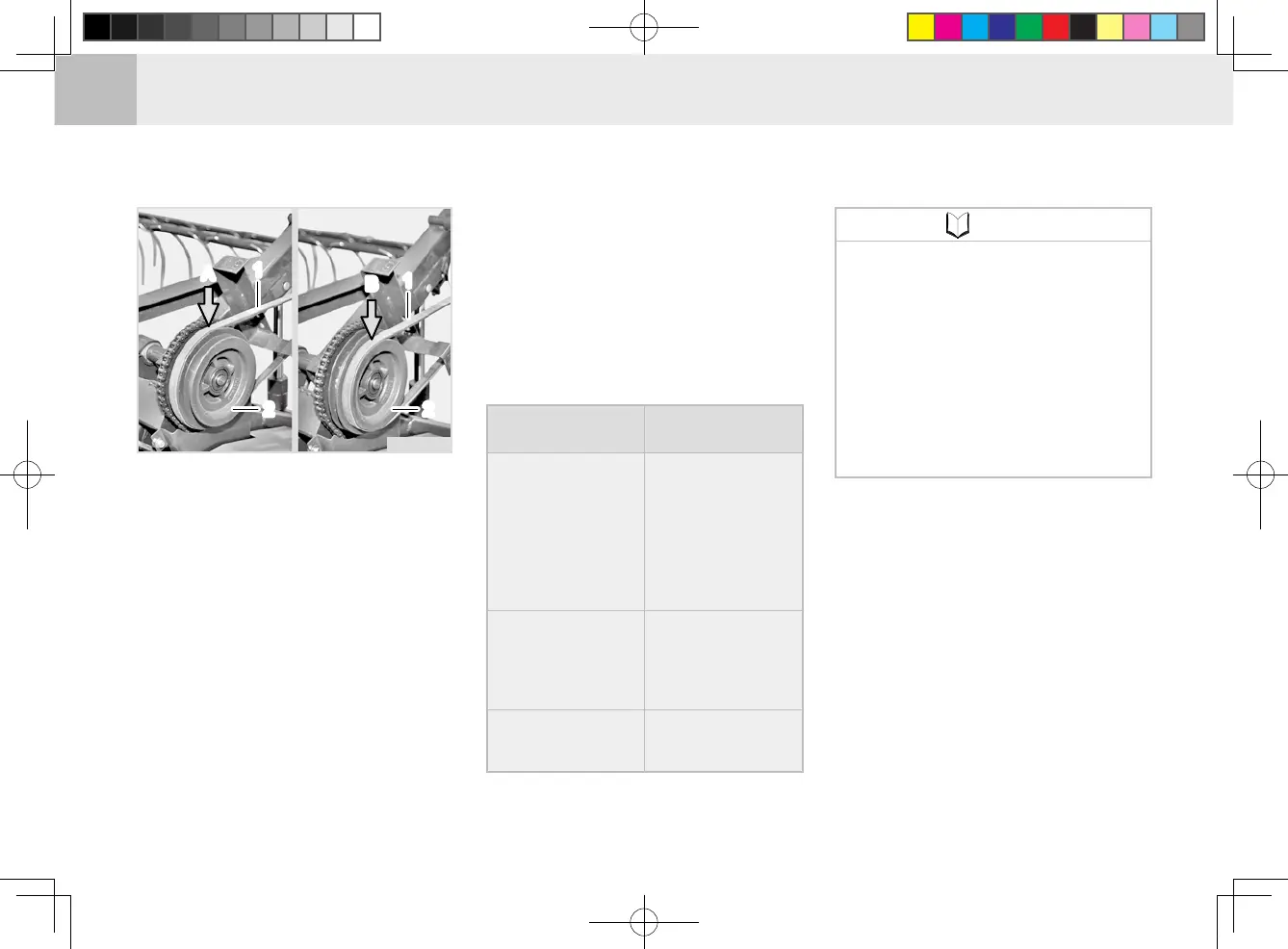

(1) Reel Drive Belt (2) V-pulley
(A) Under Normal Condition
(B) For Excessive Grain Loss
THRESHING UNIT
The separation quality of grains in
the threshing cylinder or grain tank
is poor or grains discharged from the
dust discharge cover are not intact,
adjust, install, remove or replace
each part accordingly.
Refer to the following table for major
information for the above conditions.
Symptom
(condition)
Contents
•
Poor separation
quality
•
A large amount
of straw debris or
foreign materials
is mixed in grains.
•
A lot of grains are
cut or attached
with awns and
stems
•
Excessive loss
from dust dis-
charge (grains
scattered exces-
sively)
•
Adjust the reel
height as low as
possible
•
Excessive grain
loss
•
A lot of grains are
hulled and shat-
tered
For abnormal grain conditions, re-
fer to the following:
Ear falling off - several grains
clumping together
G
rains mixed with foreign mate-
rials - grains attached to straws
H
ulled grains - grains are hulled
Cracked - grains are cracked or
dented
•
•
•
•
NOTE
