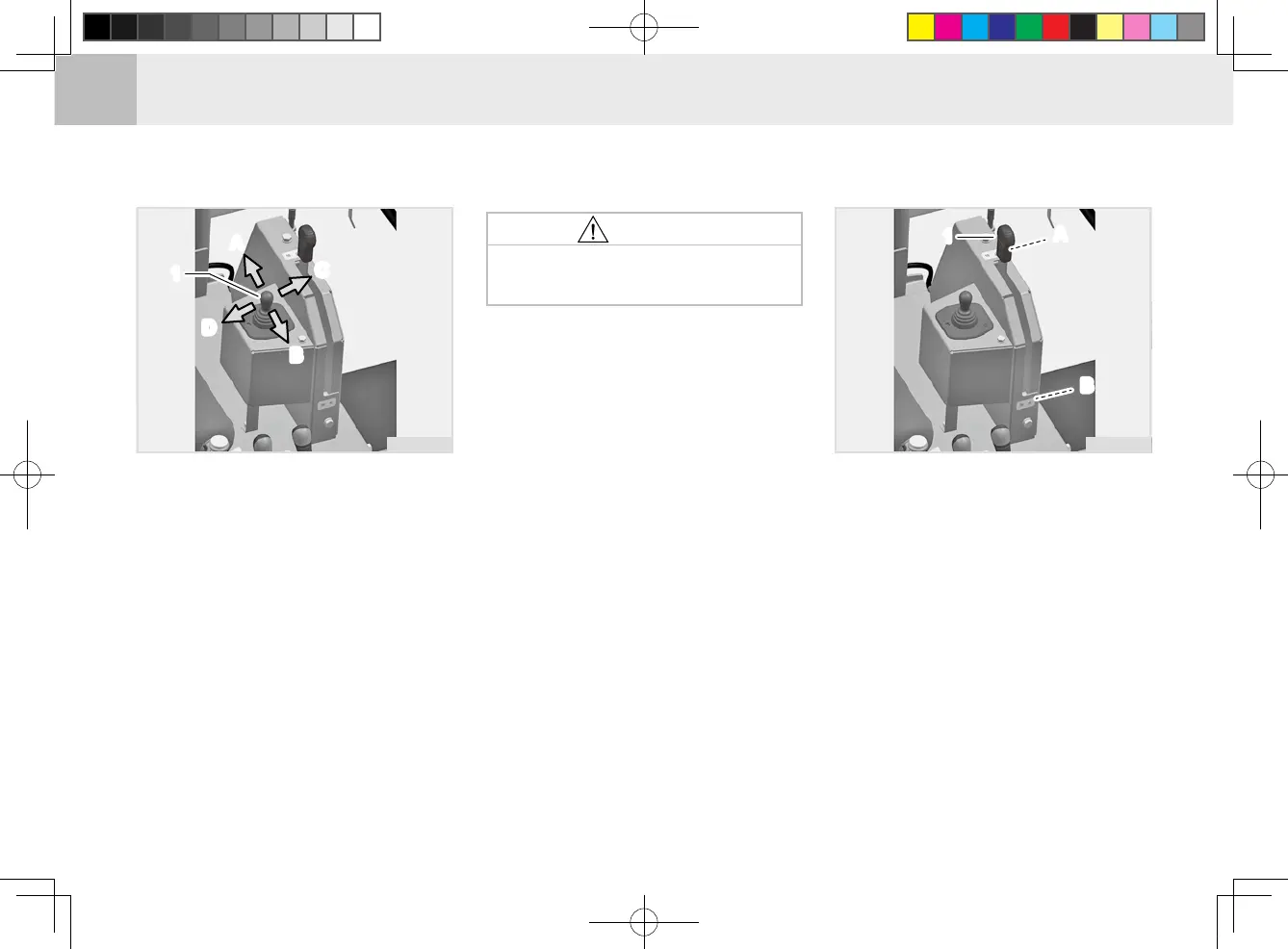

TURNING UNLOADER
HOW TO DISCHARGE GRAINS
(1) Unloader Lever
(2) Unloader Discharge/stop Switch
(A) Up (B) Down
(C) Left Turn (D) Right Turn
1. Move the unloader lever "Up" (↑)
to lift the unloader.
2. Move the unloader lever "Down" (↓)
to lower the unloader.
3. Move the unloader lever to the
"Left" (←) to turn the unloader to
the left.
4. Move the unloader lever to the
"Right" (→) to turn the unloader to
the right.
GRAIN DISCHARGE LEVER
Place the grain discharge lever in
the ON position to discharge grains.
Placing it in the OFF position stops
discharging.
HOW T
O DISCHARGE GRAINS
The grain indicators on the instru-
ment cluster come on according to
the grain level in the tank. When
the tank becomes full, the buzzer
sounds. In this case, stop working
and discharge grains.
A
B
A
B
1
1
cf1O449A
(1) Grain Discharge Lever
(A) Off (B) On
A
B
C
D
A
B
C
D
1
1
cf1O448A
Before turning the unloader,
lift it to the highest position.
•
CAUTION
