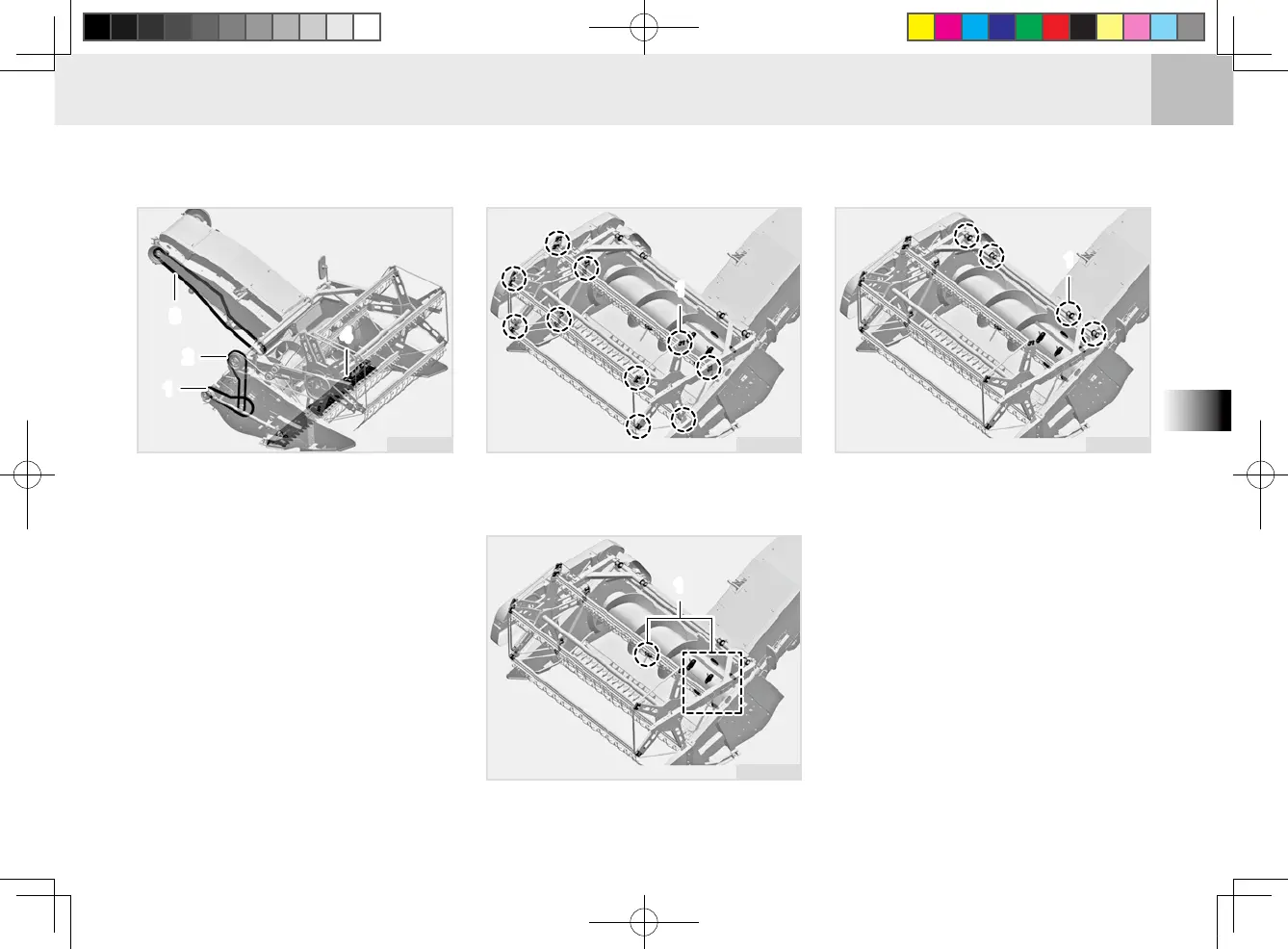

REAPING UNIT LUBRICATION POSITION
APPLY OIL
(1) Reaping Unit Drum Drive Chain
(2) Reel Drive Chain
(3) Reaping Unit Drive Chain
(4) Cutting Blade
APPLY GREASE
111
22
3
3
4
4
cf1O415B
(1) Reel Tine Bar Support
111
cf1O445A
(1) Finger Guide
111
cf1O446A
(1) Reel Frame Bush
111
cf1O447A
