In a normal condition, adjust the reel
tine height so that it is placed below
ears of crops for easy passing. In
other cases, set the reel height prop-
erly according to the reaping direc-
tion and lodged condition of crops.

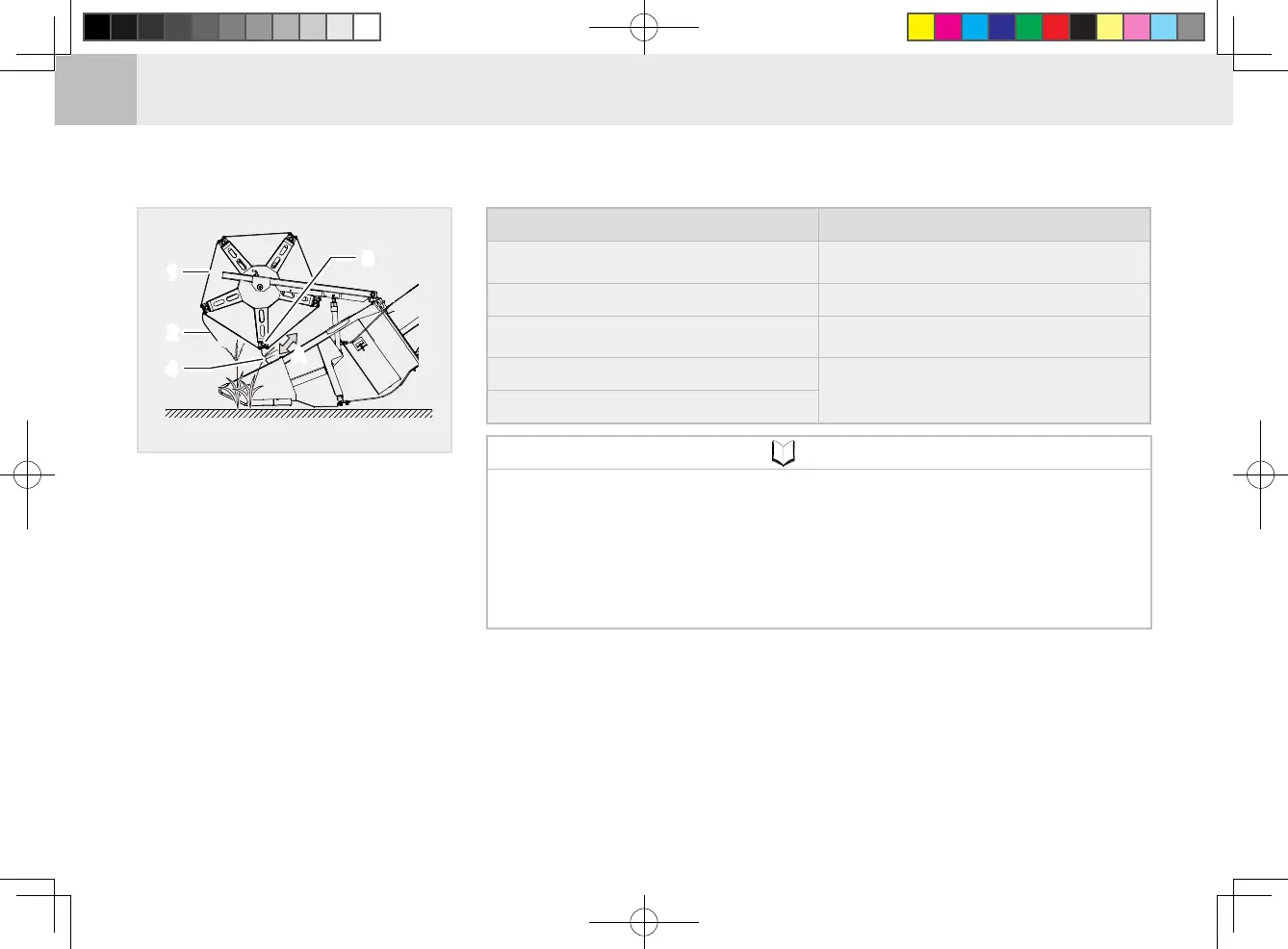

(1) Reel (2) Reel Tine
(3) Reel Tine Bar (4) Ear
(A) Adjust
REEL TINE HEIGHT ADJUSTMENT
Crop condition and reaping direction Adjusting reel height
1. Stand erect
Adjust the reel height so that the reel tine
can pass under ears of grains
2. Cutting head rst A
djust the reel height as low as possible
3. Cutting bottom rst
A
djust the reel height so that the reel tine
can raise ears of crops
4. Cutting from sides
A
djust the reel height as low as possible
5. Completely lodged crops
Set the reel height as low as possible when reaping crops while facing
crops' head side.
Lower the reel as soon as reaping operation is completed so crops do not
fall off the reaping unit.
I
f reaping crops with the reel tine set under ears of crops, crops may be
entangled into the reel or may fall onto the ground.
•
•
•
NOTE
