REMOVAL
111
22
CF1O834B

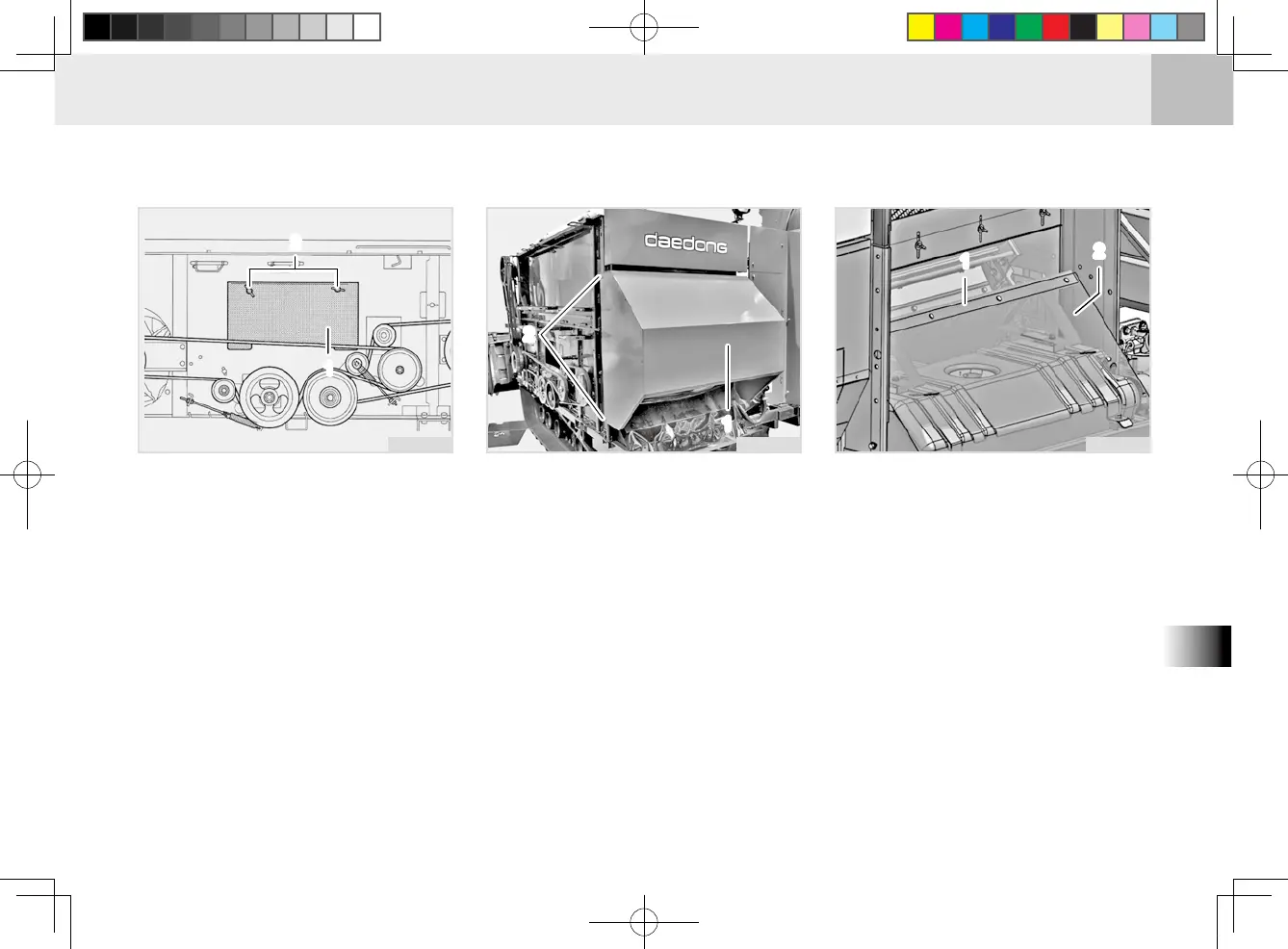

(1) Clean-out Cover On Left Plate Of Threshing
Unit
(2) Wing Bolt
1. Remove left-hand covers (3 & 4)
of the threshing unit.
2. Loosen the wing nut to remove the
clean-out cover panel of the left
plate of the threshing unit.
11
2
2
CF1O835A
(1) Dust Cover (Rear) (2) Screw
3. Remove the dust cover (rear).
(1) Loosen the screw that xes the
dust cover (rear).
(2) Lift the dust cover (rear) with
two people or more to remove
it.
4. Fold up the rocker shaft seal to-
ward the sieve case and fix it in
place with adhesive tape.
111
22
(1) Seal Fixing Base (2) Fuel Tank Seal
5. Remove the seal xing base.
CF1O836B
