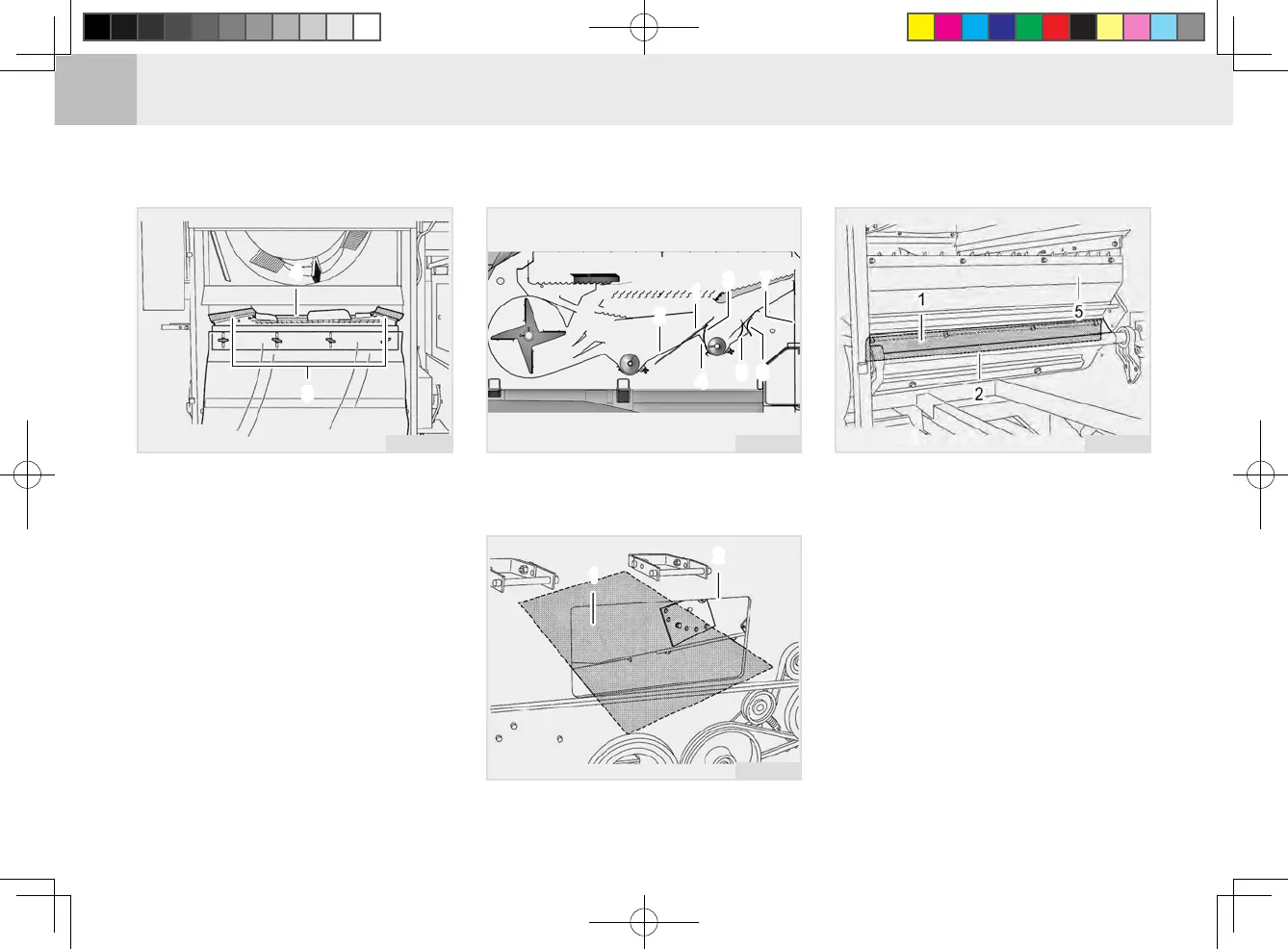

(3) Side Seal (4) Sieve Case
2. Install each seal.
(1) Pull the front seal of the sieve
case up to the back of the front
seal position of the threshing
rack for installation.
(2) When installing the side seals,
make sure that their tips are not
folded.
CF1O845B
1
4
5
6
2
3 7
1
4
5
6
2
3 7
1
4
5
6
2
3 7
1
4
5
6
2
3 7
22
111
(1) Separator Seal (2) No. 1 Walker
(3) Seal 4 (4) No. 2 Walker (5) Seal 5
(6) No. 2 Walker Seal (7) Rocker Shaft Seal
(1) Separator seal (Inside)
(2) Clean-out on left plate of threshing unit
CF1O846B CF1O848B
CF1O847B
(1) Seal 5 (2) No. 2 Walker Seal
(3) Pull the separator seal and seal 4
from the left plate clean-out of the
threshing unit up to the No. 1 and
2 walkers for correct installation.
(4) Pull the No. 2 walker seal to the
back of the seal 5 for installation.
