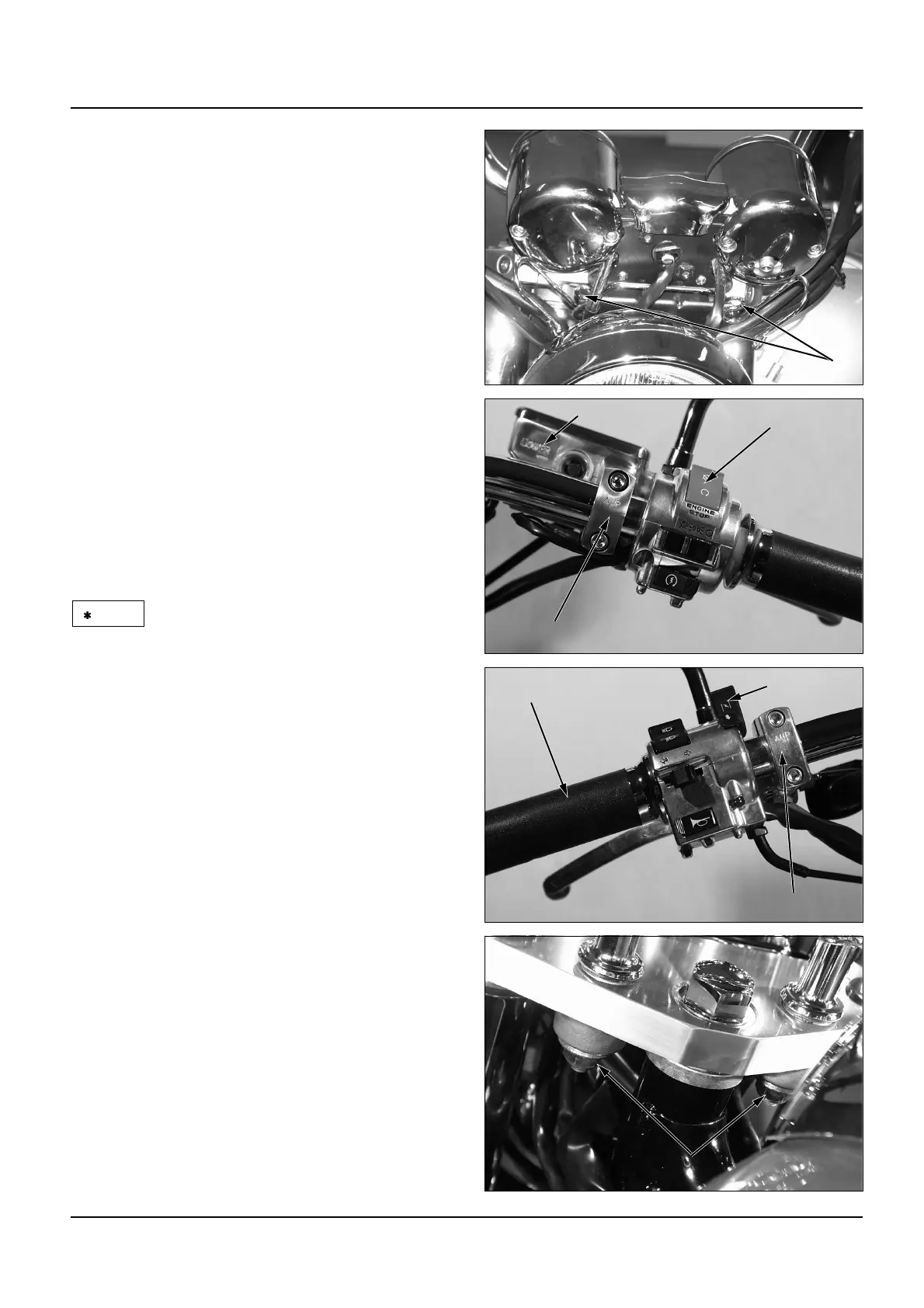

Front Wheel/Front Fork/Steering

handle Bar

Removal

● Loosen the cable guide bolt and remove the

guide.

● Remove the starter kick switch, Throttle cable

and throttle grip.

● Remove the master cylinder holder socket bolt

with L.wrench.

● Remove the master cylinder holder.

● Remove the master cylinder from the handle

bar.

● Support the master cylinder in order not to leak

brake fluid.

• Master cylinder should be equipped with the

frame correctly without fail to avoid an inferior

phenomenon, air mixed with the air caused by

hungdown equipt master cylinder.

● Remove the winker switch.

● Remove the chock cable out of the choke lever.

● Remove the clutch lever holder.

● Remove the clutch lever from the handlebar.

● Loosen the handle connecting nut and washer

of fork top bridge.

Bolt

BoltBolt

Bolt

Engine Stop Switch

Engine Stop SwitchEngine Stop Switch

Engine Stop Switch

Choke Lever

Choke LeverChoke Lever

Choke Lever

Handle Grip

Handle GripHandle Grip

Handle Grip

Clutch Lever Holder

Clutch Lever HolderClutch Lever Holder

Clutch Lever Holder

Nut

NutNut

Nut

Master Cylinder

Master CylinderMaster Cylinder

Master Cylinder

Master Cylinder Holder

Master Cylinder HolderMaster Cylinder Holder

Master Cylinder Holder

NOTE

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers

DAELIM DAYSTAR Service Manual
