DAELIM DAYSTAR Service Manual

7-6
A.C Generator / Starter Clutch

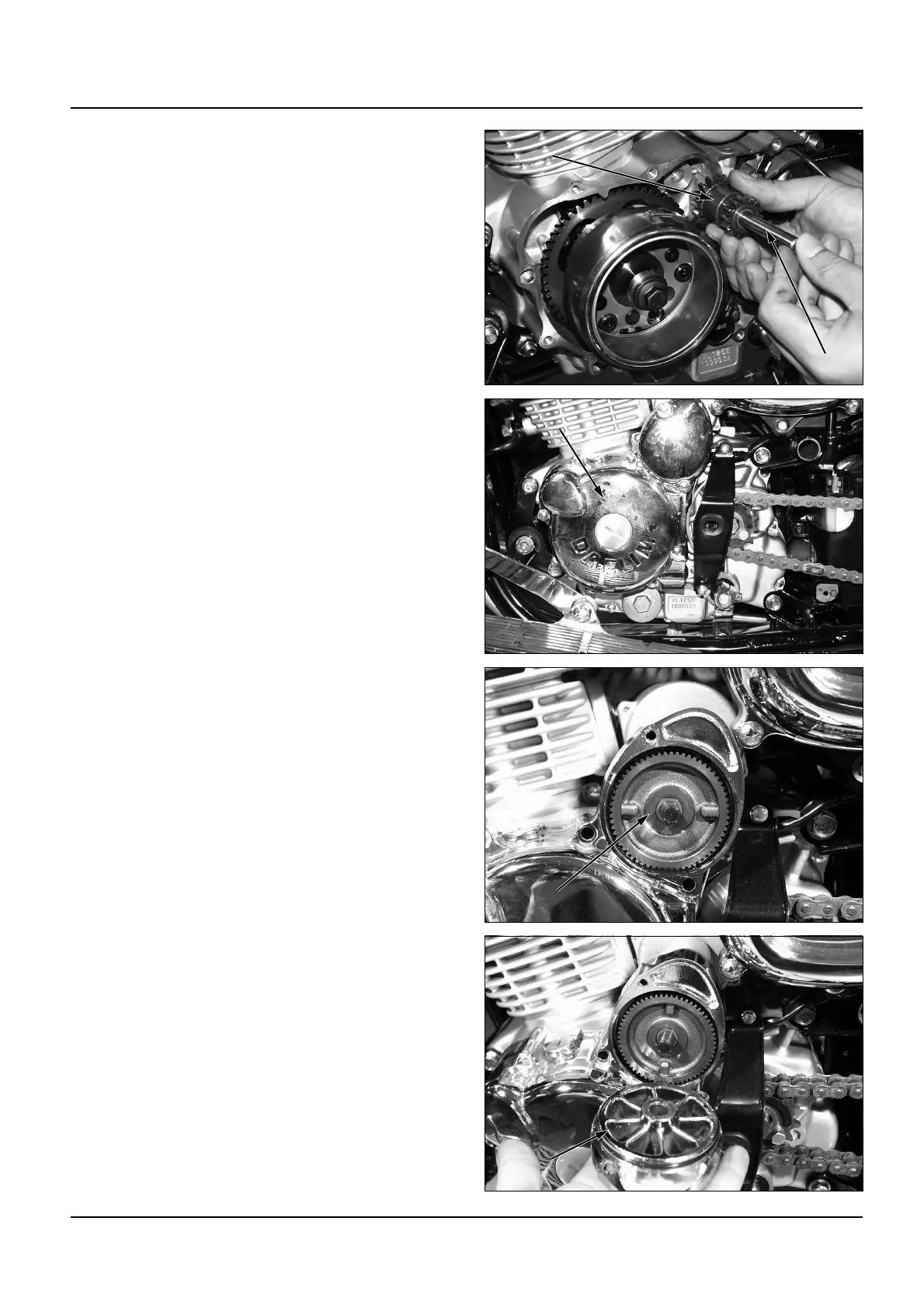

● Install the starter idle gear and shaft.
● Install the new gasket and dowel pin.
● Install the l. crankcase cover and tighten the
bolt.
Torque : 1.1kgf-m(11N.m)
● Install the starter gear and shaft.
