DAHAO A88 User Manual

Chapter 12 Directions on Coiling, Taping and Zigzag Embroidery

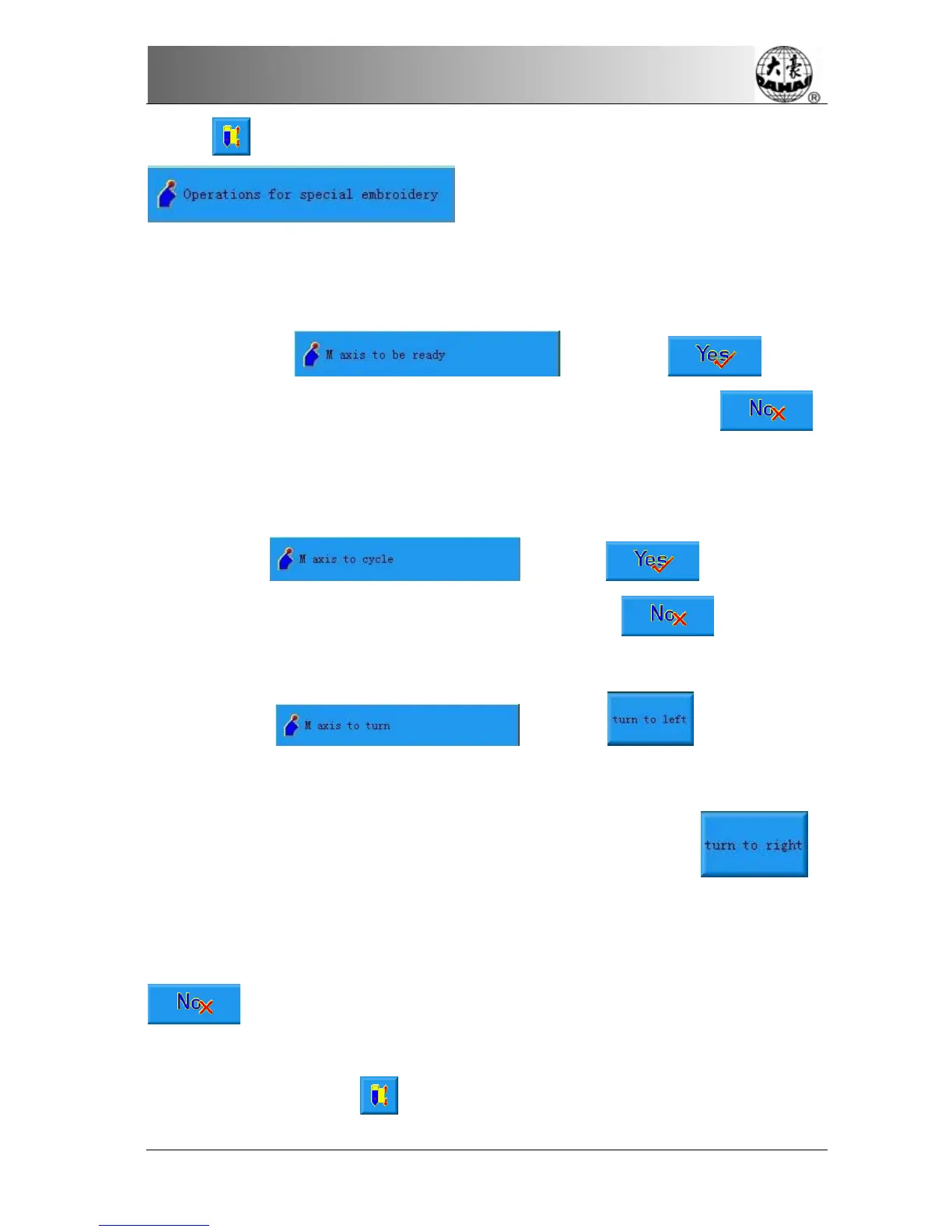

BECS-A88/C88 computerized embroidery machine owner’s manual 163
click to enter into the “Assistant Operation” screen, select
to show the special embroidery window, “M
axis to be ready”, “M axis to cycle” and “M axis to turn”.
1. Return the M-axis to the Working Point
Press the key
and click on the
dialogue window to let the M axis back to the working point, click
to
exit.
2. Return the M-axis to the Origin Point
Press the key
and click on the dialogue
window to let the M axis rotate to the “zero point”, click
to exit.
3. M-axis rotated manually
Press the key
and click on the dialogue
window to let the M axis rotate to the left. It will rotate 18° left once you click the
button. After 20 times click, it will return to its origin; while click
on
the dialogue window to let the M axis rotate to the right. It will rotate 18° right
once you click the button. After 20 times click, it will return to its origin; click
to exit.
12.4.3 Operations of Clamp Foot
In the main screen, click
to enter into the “Assistant Operation” screen, select
