Product Reference Guide 103

Add-ons (continued)

START / END

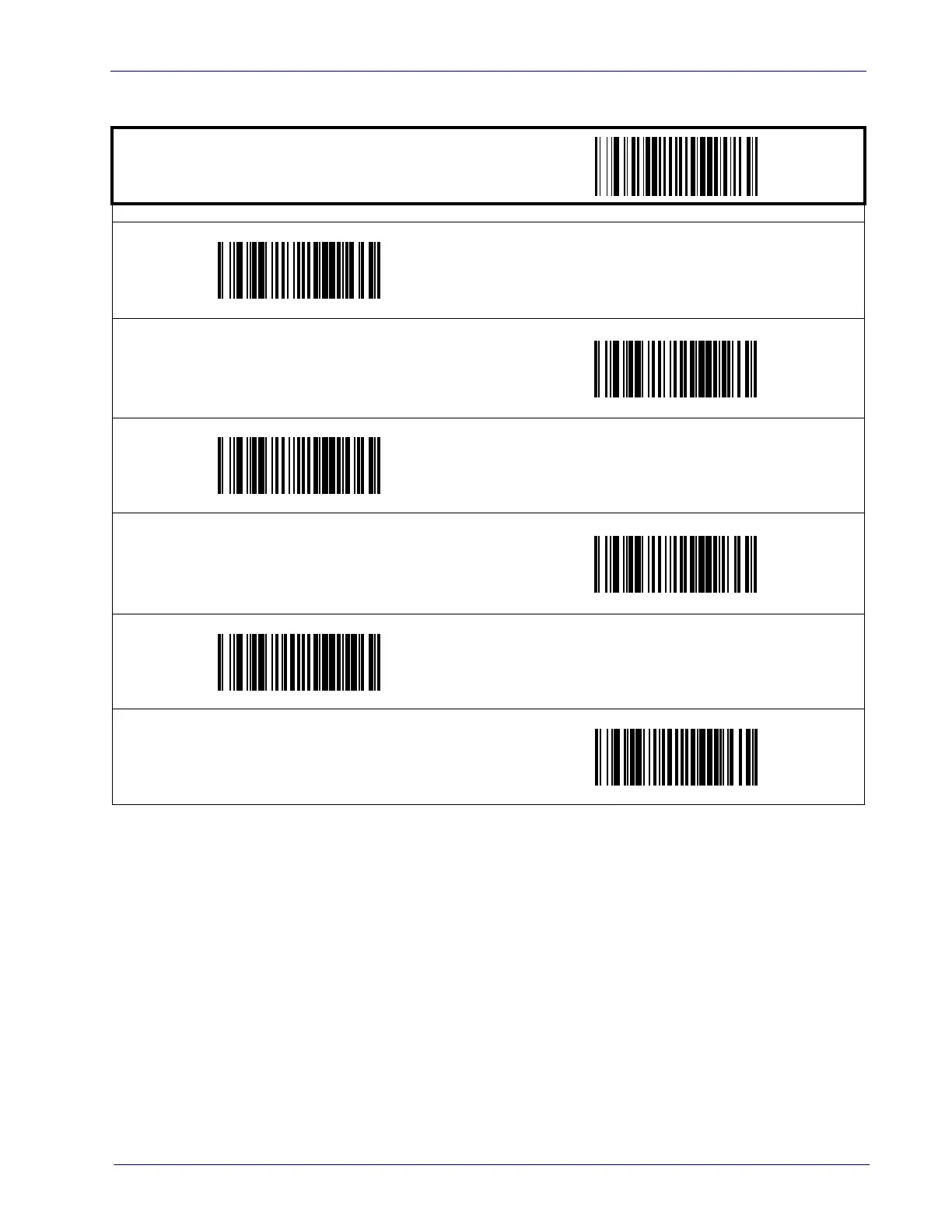

PROGRAMMING bar codes

Disable Optional 2-Digit Add-ons

DEFAULT

Enable Optional 2-Digit Add-ons

Disable Optional 5-Digit Add-ons

DEFAULT

Enable Optional 5-Digit Add-ons

Disable Optional Code 128 Add-ons

DEFAULT

Enable Optional Code 128 Add-ons

³0 1101
