Datalogic Magellan 3300HSi User Manual

58 Magellan™ 3300HSI

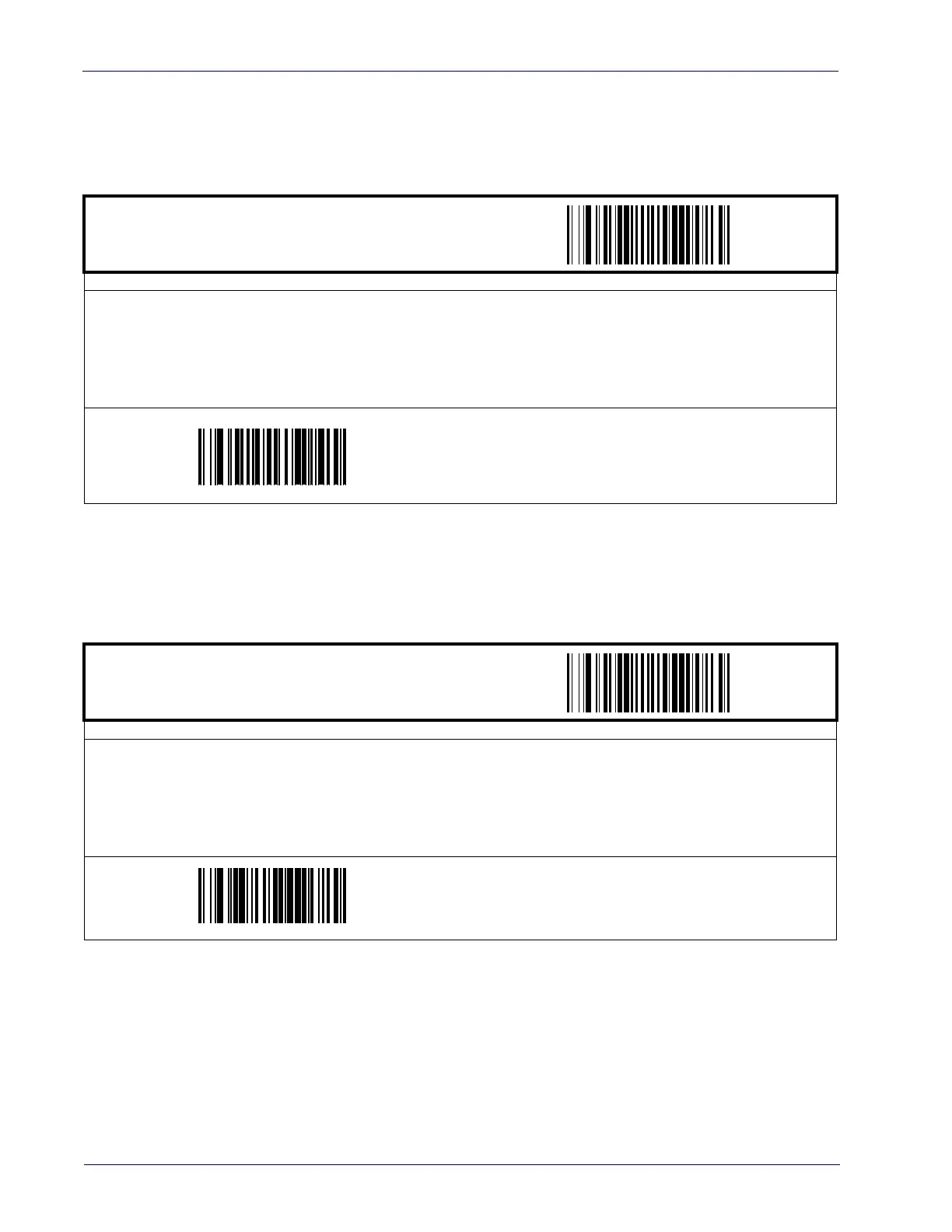

RS-232 Interface Features (continued)
ACK Character
NAK Character
START / END
PROGRAMMING bar codes
Sets the ACK character from the set of ASCII characters or any decimal value from 000 to 255. Pad entries
of less than three digits with zeros, as in “005”. To configure this feature, scan the “START/END” bar code
above to place the unit in Programming Mode, then the “Set ACK Character,” followed by the digits from
the Alphanumeric table in Appendix C, representing your desired character. Exit programming mode by
again scanning the “START/END” bar code above.
DEFAULT SETTING FOR THIS FEATURE: 006
Set ACK Character
START / END
PROGRAMMING bar codes
Sets the NAK character from the set of ASCII characters or any decimal value from 000 to 255. Pad entries
of less than three digits with zeros, as in “005”. To configure this feature, scan the “START/END” bar code
above to place the unit in Programming Mode, then the “Set NAK Character,” followed by the digits from
the Alphanumeric table in Appendix C, representing your desired character. Exit programming mode by
again scanning the “START/END” bar code above.
DEFAULT SETTING FOR THIS FEATURE: 021
Set NAK Character

Datalogic Magellan 3300HSi Specifications

General

Scanner type	1D
Decoding standards	GS1, MicroPDF417, PDF417
Optical sensor resolution	1280 pixels
Light levels (direct sunlight)	0 - 86100 lx
Dimensions (WxDxH)	152 x 87 x 152 mm
Power consumption (active)	9.9 W
Standard interfaces	USB, RS-232
Input voltage	90 - 264 V
Power requirements	47 - 63 Hz
Power consumption (standby)	2 W
Certification	RoHS, EN 60825-1, IEC 60825, IEC 60825-1
Product color	Stainless steel
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Weight	790 g
