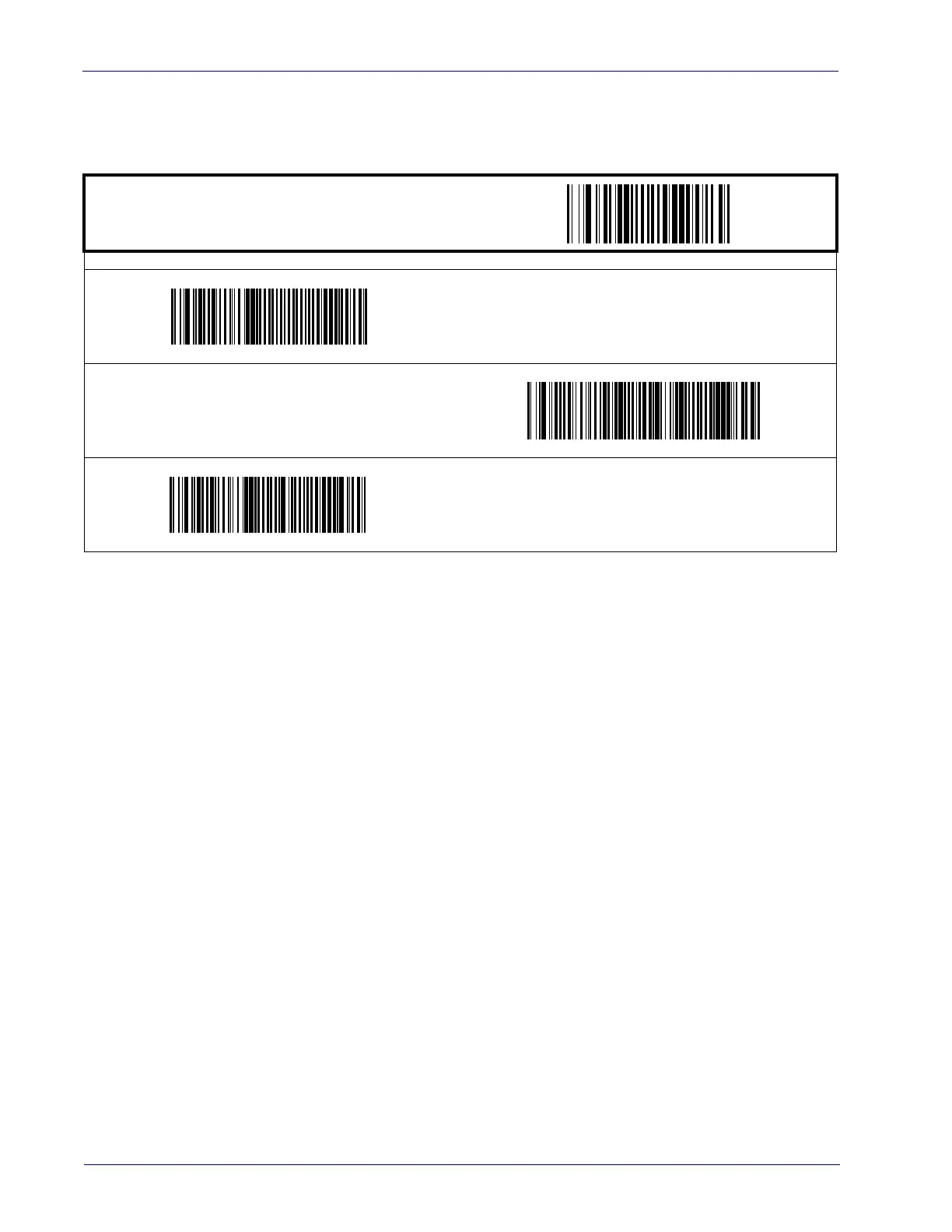

154 Magellan™ 3300HSI

UPC/EAN Quiet Zone

This feature sets a Quiet Zone requirement for UPC/EAN labels.

START / END

PROGRAMMING bar codes

UPC/EAN Quiet Zone = 5 Modules

UPC/EAN Quiet Zone = 3 Modules

UPC/EAN Quiet Zone = 1.5 Modules

Table of Contents

Default Chapter3
- Table of Contents3
Chapter 1 Getting Started9
- About this Manual9
  - Manual Conventions9
- Connecting the Scanner10
- Error Codes12
- Installation12
- LED and Beeper Indicators14
- Programming15
  - Using the Programming Bar Codes15
- Resetting the Standard Product Defaults16
- Data Matrix Programming Labels16
- Bar Code Mask17
  - Going Green18
- LED Class18
Chapter 2 Programming19
- Introduction to Label Programming19
- Understanding the Basics19
- Bar Code Mask22
- Double Read Timeout for Linear Labels23
- Double Read Timeout for 2D Labels25
- Scanner Button Options26
- Camera Button Mode27
- LED Level28
- Auxiliary Port Mode29
- Auxiliary Port Baud Rate30
- Productivity Index Reporting (PIR)31
- Sleep Mode32
  - Wake up Intensity34
- LED and Beeper Indicators36
- Cell Phone Mode41
- Image Capture43
Image Compression46
Image Format46
Image Size47
Image Brightness48
Image Contrast48
- Interface Related Features49
Interface Selection51
Interface Features53
- Obey/Ignore Host Commands53
- Host Transmission Buffers54
- RS-232 Interface Features55
- ACK NAK Error Handling69
  - Transmission Failure Indication70
Single Cable RS-23270
- Single Cable RS-232 Options70
- Single Cable RS-232 RTS CTS Selection71
- Single Cable RS-232 Use BCC72
- Single Cable RS-232 Use ACK/NAK72
- Single Cable RS-232 Use STX73
- Set Single Cable RS-232 STX Character73
- Single Cable RS-232 Use ETX74
- Set Single Cable RS-232 ETX Character74
- Single Cable Pacesetter Plus75
- Single Cable Datalogic Extensions75
- USB-OEM Interface Features76
  - USB-OEM Device Usage76
- Ibm76
  - IBM Transmit Labels in Code 39 Format76
- Keyboard Wedge77
- USB Keyboard77
  - Caps Lock State79
USB COM Interface Set-Up83
Data Editing Overview85
- Please Keep in Mind85
Global Prefix/Suffix86
Aim ID87
Label ID88
Case Conversion94
Character Conversion95
Upc-A97
- Disable/Enable UPC-A97
- Check Digit Transmission98
- Number System Transmission98
- Expand UPC-A to EAN-1399
- Upc-E100
- EAN Two-Label108
- EAN Two-Label Combined Transmission108
- Price Weight Check Digit109
- Add-Ons110
- GS1 Databar Omnidirectional / Stacked Omnidirectional112
  - Disable/Enable GS1 Databar Omnidirectional112
  - UCC/EAN 128 Emulation112
- GS1 Databar Expanded / Expanded Stacked113
- GS1 Databar Limited116
  - Disable/Enable GS1 Databar Limited116
  - GS1-128 Emulation116
- Code 39117
- Code 32 Italian Pharmacode121
- Code 128123
Interleaved 2 of 5126
- Disable/Enable Interleaved 2 of 5126
- Check Digit Calculation127
- Check Digit Transmit127
- Length Control128
- Interleaved 2 of 5 Length 1, Length 2 Programming Instructions129
Codabar129
- Disable/Enable Codabar129
- Check Character Verification130
- Check Character Transmit130
- Length Control131
- Codabar Length 1, Length 2 Programming Instructions131
- Start/Stop Character Type132
- Start/Stop Character Transmission132
- Start/Stop Character Match133
Code 93133
- Disable/Enable Code 93133
- Length Control134
- Code 93 Length 1, Length 2 Programming Instructions134
Msi135
- Disable/Enable MSI135
- MSI Check Character Transmit135
- MSI Check Character Calculation136
- MSI Number of Check Characters136
- MSI Length Control137
- MSI Length 1, Length 2 Programming Instructions138
2D Symbologies139
- Pdf 417140
- Micro PDF 417143
- Datamatrix146
- QR Code149
- Maxicode152
- Aztec155
- Composite Labels158
Inverse Label Reading161
- UPC/EAN Quiet Zone162
Chapter 3. REFERENCES163
- Global Prefix/Suffix163
- Label ID165
- Length Control166
  - Length 1, Length 2 Programming Instructions166
Appendix A. Optical and Read Performance Parameters167
- Product Specifications167
- Scanner Dimensions168
- Physical Properties169
- Electrical Parameters169
- Environmental Parameters169
- Other Parameters169
Appendix B. Standard Cable Pinouts (Primary Interface Cables)171
- Cable Pinouts (Handheld Scanner Attached Via the Aux Port)172
Appendix C. Appendix D. Factory Defaults by Interface175
- Factory Default Settings175
Appendix E. Keyboard Model Cross Reference183
Appendix F. Accepting RS-232 Commands191
Appendix G. SAMPLE SYMBOLS193
- 1D Symbol Samples193
- 2D Sample Symbols195
- Composite Sample Symbols196
Appendix H. Microsdhc Compatibility197
- Microsd Card Insertion197
  - Microsd Card Removal198
- Autorun File Processing199
- Microsd Function Summary199
- Microsd Function Details200
  - From Scanner to Microsd Card200
  - From Microsd Card to Scanner202
    - Application Code Load to Scanner202
    - Configuration Load to Scanner202
Appendix I. Handheld Data Format Requirements General203
- Datalogic Handheld Data Format Requirements204
- AIM Formats210
