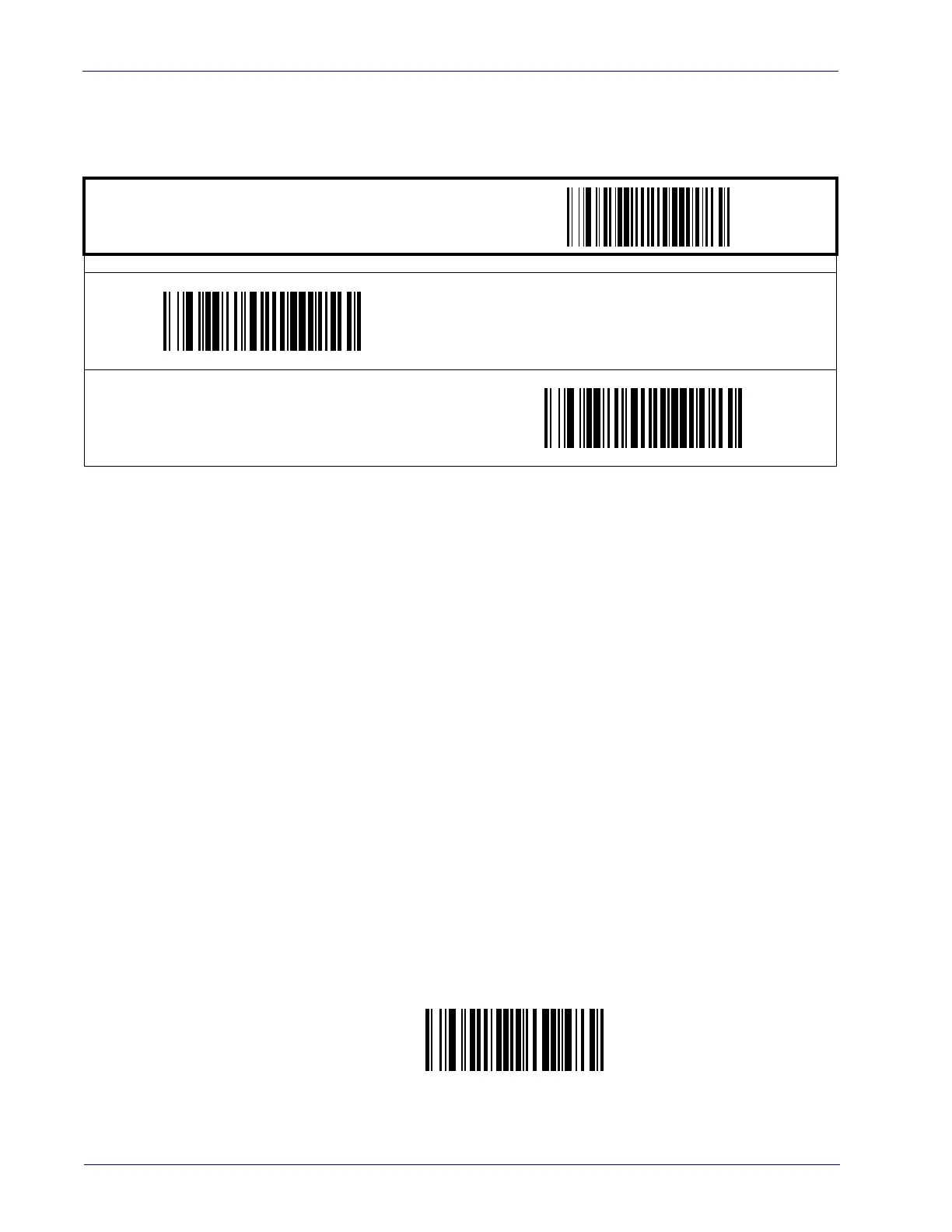

66 Magellan™ 3300HSI
Single Cable RS-232 Use ETX
START / END
PROGRAMMING bar codes
Disable ETX
Enable ETX
DEFAULT
Enables/disables the ability of the scanner to use ETX.
Set Single Cable RS-232 ETX Character
Allows selection of the ETX character.
To specify the ETX Character:
1. Scan the START/END bar code.
2. Scan the bar code, SET SINGLE CABLE RS-232 ETX CHARACTER below.
You’ll need to cover any unused bar codes on this and the facing page to
ensure the scanner reads only the bar code you intend to scan.
3. Scan the appropriate characters/digits from the keypad in Appendix C,
that represent the decimal designation
for the desired character. A table
containing the ASCII Character Set and their corresponding hex values is
available in the inside back cover of this manual. ASCII parameters must be
input by scanning decimal digits for each character. Pad all numbers with
leading zeroes to yield a three-digit entry (001-127). Thus, to set a single
character value of A, bar codes containing the digits ‘0’, ‘6’ and ‘5’ must
be scanned. The selectable range for this option is any decimal value from
001 to 127.
4. The scanner will automatically exit Programming Mode when the appro-
priate amount of digits
have been scanned.
SET SINGLE CABLE RS-232 ETX CHARACTER
