Single Cable RS-232 RTS CTS Selection
Specifies how RTS and CTS are used to control the data flow. RTS is controlled
by the Scanner and can be continuously held high/low, or can be asserted
during label transmission. The scanner looks at CTS, as the configuration val-
ues state, to determine when to send label data.
Choices are:
• Option 0 = RTS is held in low state and CTS is ignored
• Option 1 = RTS is held in high state and CTS is ignored
• Option 2 = Assert RTS and wait for CTS to be asserted
• Option 3 = Assert RTS and ignore CTS
• Option 4 = RTS held low, wait for CTS to be asserted
• Option 5 = RTS held high, wait for CTS to be asserted

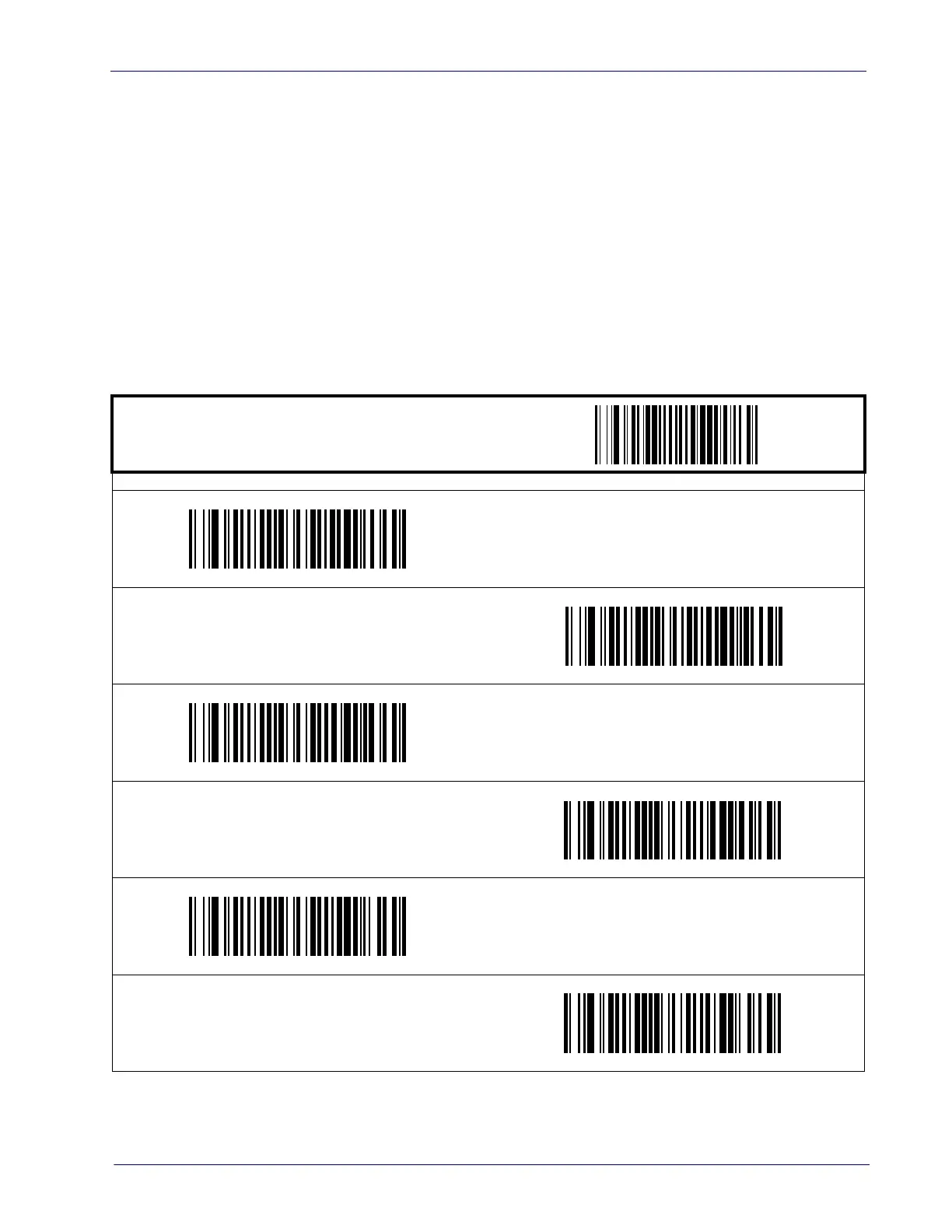

START / END
PROGRAMMING bar codes
RTS CTS Selection =
RTS is held in low state and CTS is ignored
RTS CTS Selection =
RTS is held in high state and CTS is ignored
RTS CTS Selection =
Assert RTS and wait for CTS to be asserted
RTS CTS Selection =
Assert RTS and ignore CTS
RTS CTS Selection =
RTS held low, wait for CTS to be asserted
RTS CTS Selection =
RTS held high, wait for CTS to be asserted
DEFAULT

Datalogic Magellan 3300HSi Specifications

General

Scanner type	1D
Decoding standards	GS1, MicroPDF417, PDF417
Optical sensor resolution	1280 pixels
Light levels (direct sunlight)	0 - 86100 lx
Dimensions (WxDxH)	152 x 87 x 152 mm
Power consumption (active)	9.9 W
Standard interfaces	USB, RS-232
Input voltage	90 - 264 V
Power requirements	47 - 63 Hz
Power consumption (standby)	2 W
Certification	RoHS, EN 60825-1, IEC 60825, IEC 60825-1
Product color	Stainless steel
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Weight	790 g
