Product Reference Guide 39

Image Size

Specifies the size of the image capture. Choices are:

•VGA

•WVGA

•SXGA, Full Size

•CIF

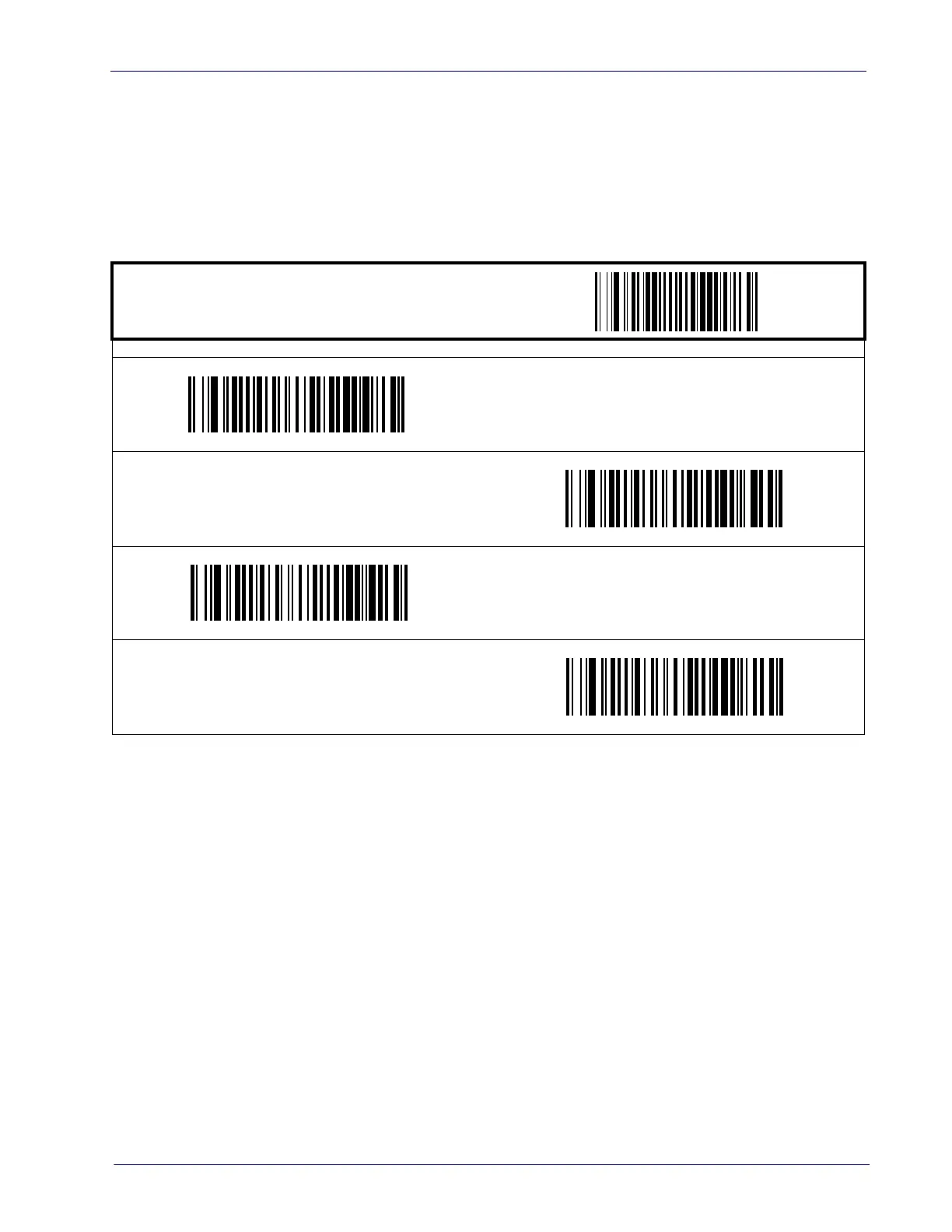

START / END

PROGRAMMING bar codes

Image Size = VGA

DEFAULT

Image Size = WVGA

Image Size = SXGA, Full Size

Image Size = CIF
