Data Editing
Data Editing Overview
CAUTION
It is not recommended to use these features with IBM
interfaces.
When a bar code is scanned, additional information can be sent to the host
computer along with the bar code data. This combination of bar code data and
supplementary user-defined data is called a “message string.” The features in
this chapter can be used to build specific user-defined data into a message
string.
There are several types of selectable data characters that can be sent before
and after scanned data. You can specify if they should be sent with all symbol-
ogies, or only with specific symbologies. Figure 1 shows the available elements
you can add to a message string:

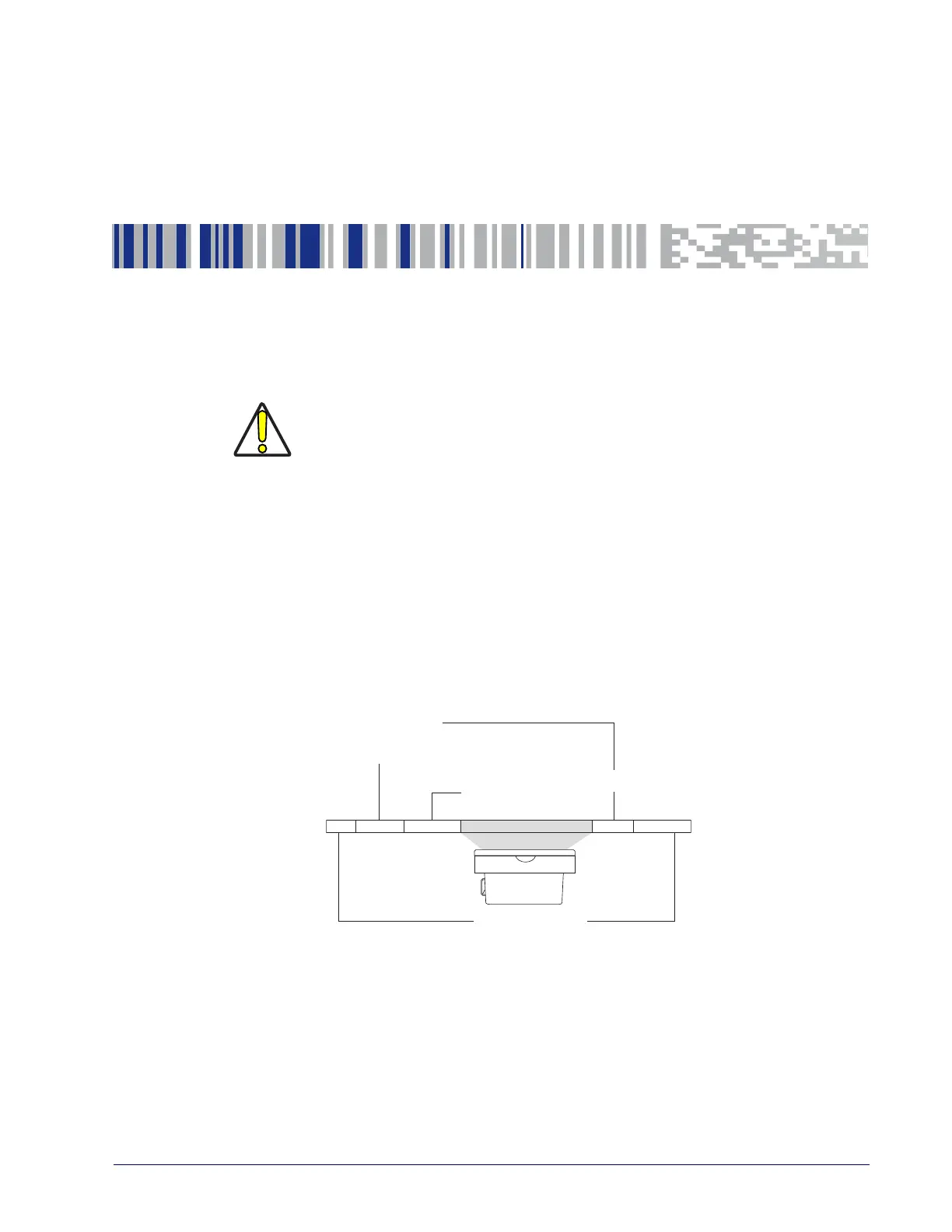

Figure 1. Breakdown of a Message String
Prefix SuffixAIM IDLabel ID Label IDBar Code Data
00 - 20 Characters (ASCII)
Label ID Transmission:
Enable this option to
transmit the Label ID you
configure for the scanned
symbology.
AIM ID: This function is
used to identify and
display the common label
identifier for its symbology.
When enabled, this ID
code will be transmitted
before the scanned bar
code data.
OR...
Please Keep In Mind...
• Modifying a message string is not a mandatory requirement. Data editing is
sophisticated feature allowing highly customizable output for advanced users.
Factory default settings for data editing is typically set to NONE.
• A prefix or suffix may be applied (reference the Symbologies chapter for these
settings) across all symbologies (set via the G
lobal features in this chapter).
• You can add any character from the
ASCII Character Set (from 00-FF) on the
inside back cover of this manual as a prefix, suffix or Lab
el ID.
• Enter prefixes and suffixes in the order in which you want them to appear on the
output.
