Datalogic Magellan 3300HSi User Manual

Product Reference Guide 85

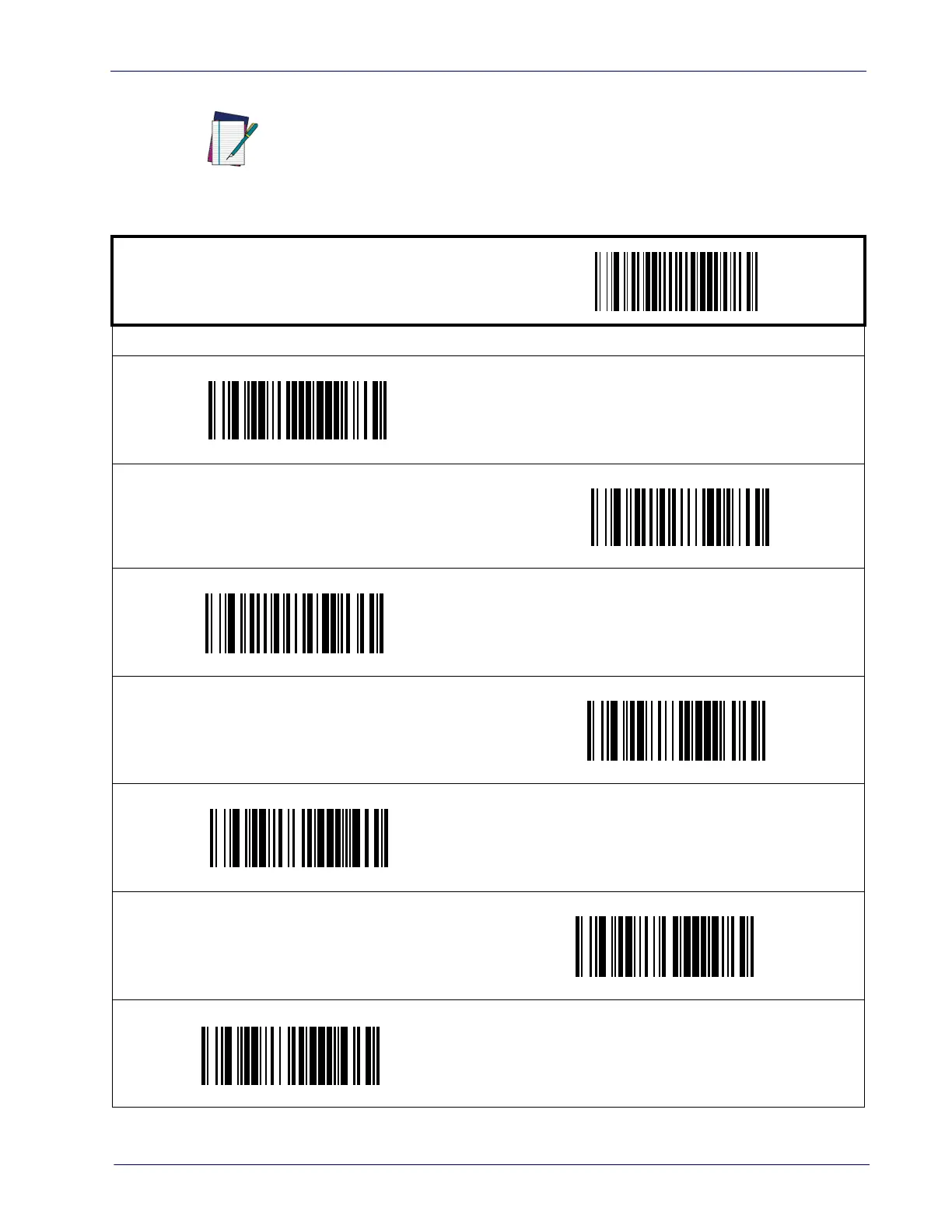

Label ID (continued)
NOTE
For the 2D symbologies on this page, the Label ID is 4 bytes. The first 3
bytes are characters for the label ID. A 00 (hex) value in the first 3 bytes
indicates the end of the label ID characters. The 4th byte is a control byte.
The use of the control byte is as follows:
bit 0-if set to 1, the AIM ID is appended for that label type
START / END
PROGRAMMING bar codes
DEFAULT SETTING FOR THIS FEATURE: mP (6D500000 hex)
Set Micro PDF 417 Label ID Character(s)
Set QR Code Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: QR (51520000 hex)
DEFAULT SETTING FOR THIS FEATURE: MC (4D430000 hex)
Set Maxicode Label ID Character(s)
Set Aztec Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: Az (417A0000 hex)
DEFAULT SETTING FOR THIS FEATURE: R4 (52340000 hex)
Set GS1 DataBar Omnidirectional 2D Composite
Label ID Character(s)
Set GS1 DataBar Limited 2D Composite
Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: RL (524C0000 hex)
DEFAULT SETTING FOR THIS FEATURE: RX (52340000 hex)
Set GS1 DataBar Expanded 2D Composite
Label ID Character(s)

Datalogic Magellan 3300HSi Specifications

General

Scanner type	1D
Decoding standards	GS1, MicroPDF417, PDF417
Optical sensor resolution	1280 pixels
Light levels (direct sunlight)	0 - 86100 lx
Dimensions (WxDxH)	152 x 87 x 152 mm
Power consumption (active)	9.9 W
Standard interfaces	USB, RS-232
Input voltage	90 - 264 V
Power requirements	47 - 63 Hz
Power consumption (standby)	2 W
Certification	RoHS, EN 60825-1, IEC 60825, IEC 60825-1
Product color	Stainless steel
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Weight	790 g
