1.1 How-To Procedures – Operations

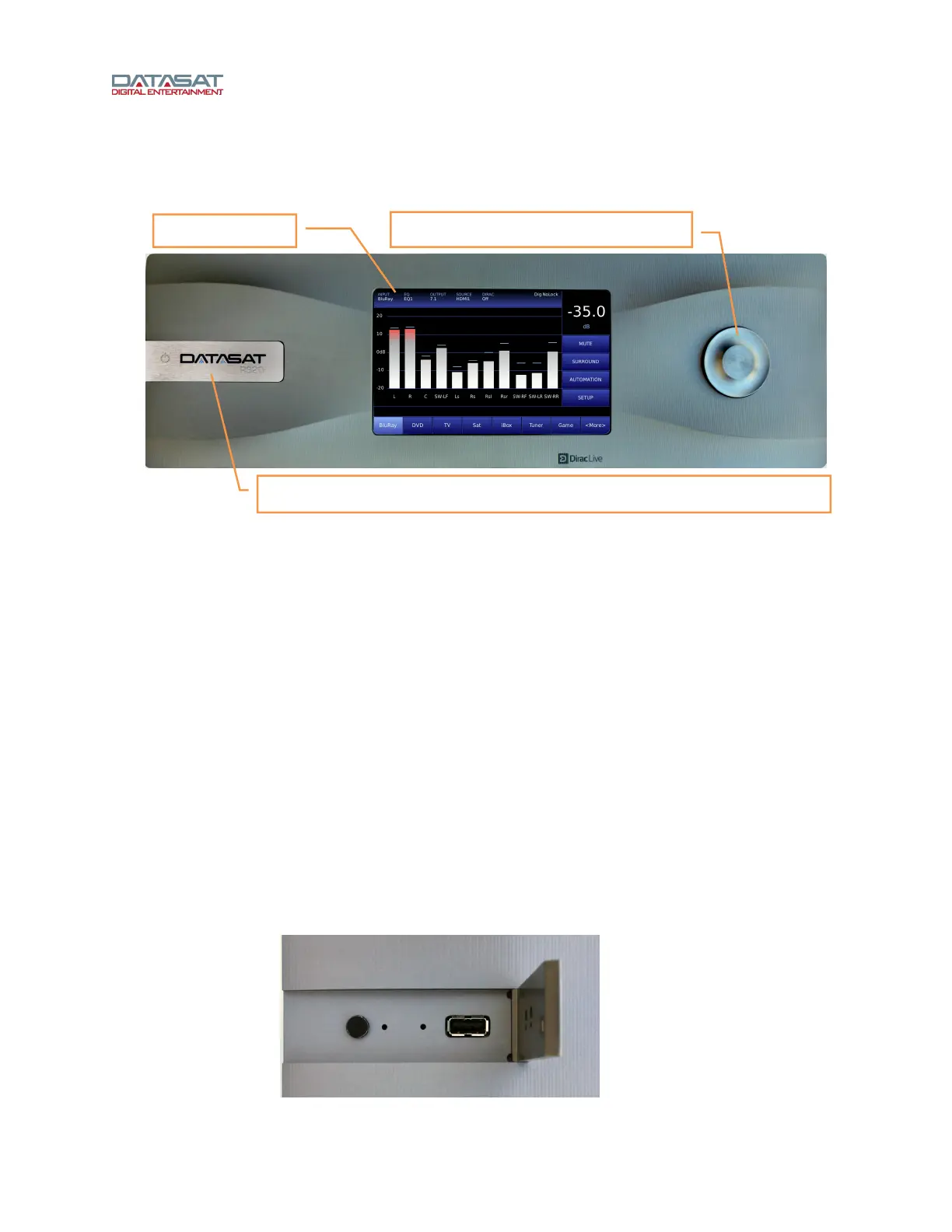

Figure 1. Front Panel Controls and Indicators
The front panel contains the following controls and indicators for operating the RS20i.
LCD display/Touch Screen: Displays system configuration and status, and allows configuration
changes. Most selections can be made by touching the screen with your finger or by using a soft stylus.
The LCD screen operates in two modes:
• Home screen. The operator can select Input Presets and mute volume from this screen. You can
also change the surround processing modes and execute manual automation commands via
the popup windows. During playback, the screen displays information about the content currently
being played.
• Setup (System) mode. In setup mode, the screen displays menus for viewing and adjusting
operational settings by the installer. The operator does not need to enter these menus.
Volume Control and adjustment knob: On the Home screen, this knob adjusts the volume control level.
It is used within the setup screens to adjust values, EQ filter, volume controls, and other values. First
select the focus by touching the control on the touch screen display. Then move the knob clockwise to
increase the value, or counterclockwise to decrease the value.
Soft Power Button and USB Connector: Press the power symbol on the door to turn power on/off, and
open the door to access the USB connector. Use the USB port for software updates and for loading and
saving of configurations. See topics
Update System Software From USB Device and USB Sav
e/Restore
on page 88 for more
details.
Figure 2: Power Button Door, open position
Touch screen
Volume control and adjustment knob
Soft power button (press the door) and USB connector (open door to access)
