RS20i Installation & Operating Guide Document # 9301H52900 Ver. 1.02
Field Description
Gateway
Current and configured gateway or router, which connects to other
networks (for example, to the Internet).
DNS Server 1
Domain Name Server 1, current and configured
DNS Server 2
Domain Name Server 2, current.
NTP Server
Network Time Protocol server, configured, where the correct time
will be obtained.
Log Server
Server where the log files will be stored.
DHCP or Static
DHCP mode means that when the RS20i is connected to the
network, an IP Address is automatically assigned to it.
The boxes for IP Address, Mask, Broadcast Addr, Gateway and
DNS Server 1 are filled in.
In Static IP mode, the installer must assign the IP Address, Mask,
Gateway and DNS Server 1.
Speed
Auto, 100 MB/s or 10 Mb/s
Link Up
When the RS20i is successfully connected to the network, the text
Link Up will be displayed along with the connection type. The
options are: 10Mbps Full-duplex or 100Mbps Full-duplex
Net Diag
See 4.10.1 Network Diagnostics, pag
e 99.
SNMP
See 4.10.2 SNMP Agent, page 100.
4.10.1 Network Diagnostics
Setup > Network > Net Diag

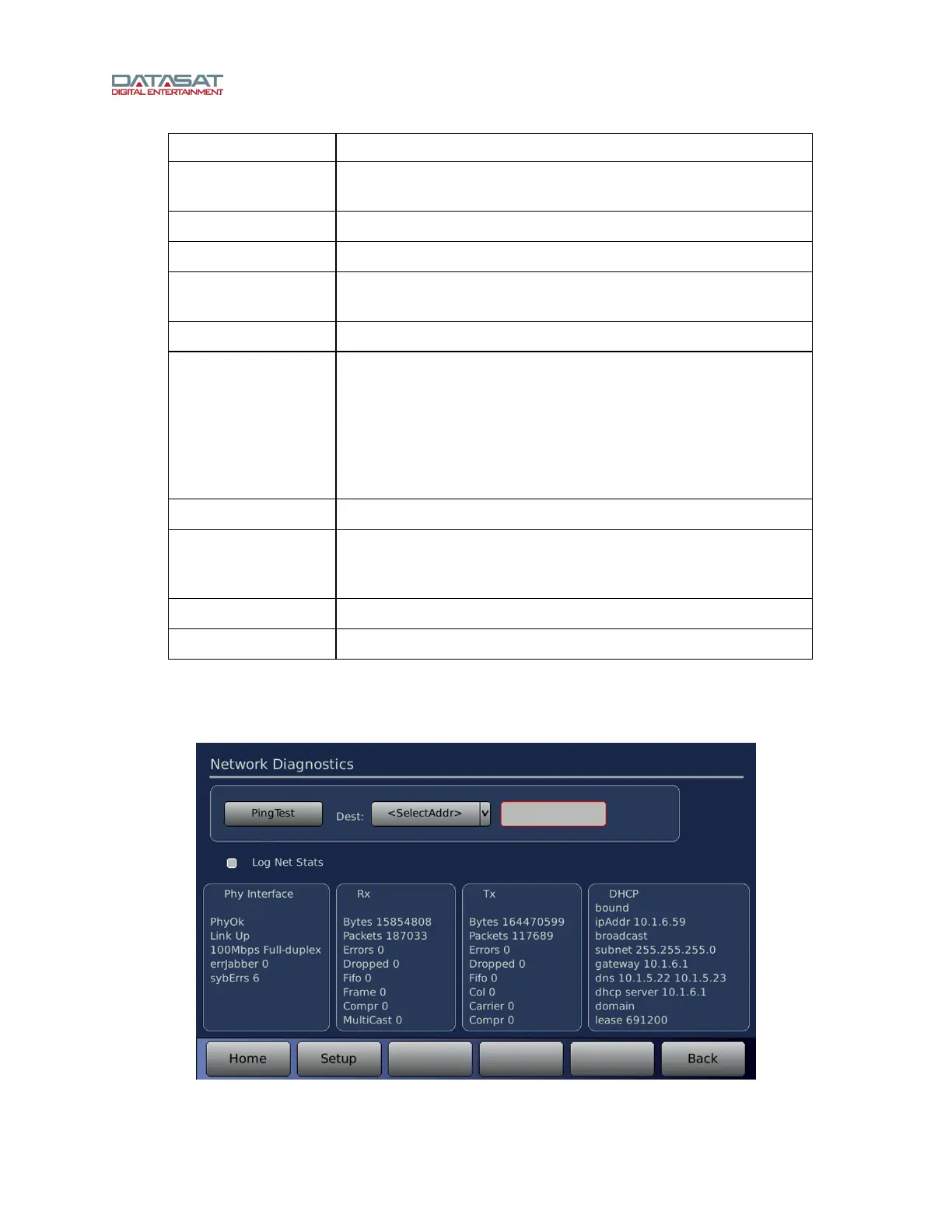

Figure 67. Network Diagnostics Screen
