RS20i Installation & Operating Guide Document # 9301H52900 Ver. 1.02
Table 5. RS20i Factory Presets
Input
Name
Assigned
Button
Signal Source EQ Set Output
Preset
HDMI 1 1 HDMI Port 1 EQ1 7.1
HDMI 2 2 HDMI Port 2 EQ1 7.1
Digital1 3 Digital Ch: 1-8 EQ1 7.1
TOS A 4 TosLink A EQ1 7.1
SPDIF 5 S/PDIF Coax EQ1 7.1
Analog 6 Analog 8Chan EQ1 7.1
Stereo 1 7 Stereo1 EQ1 7.1
The default EQ set is named EQ1 and includes all EQ settings flat and all filters off. This EQ set may be
used and altered during the theater setup process. The default output preset is 7.1, which includes the
default 8-channel assignments and trim values flat
.

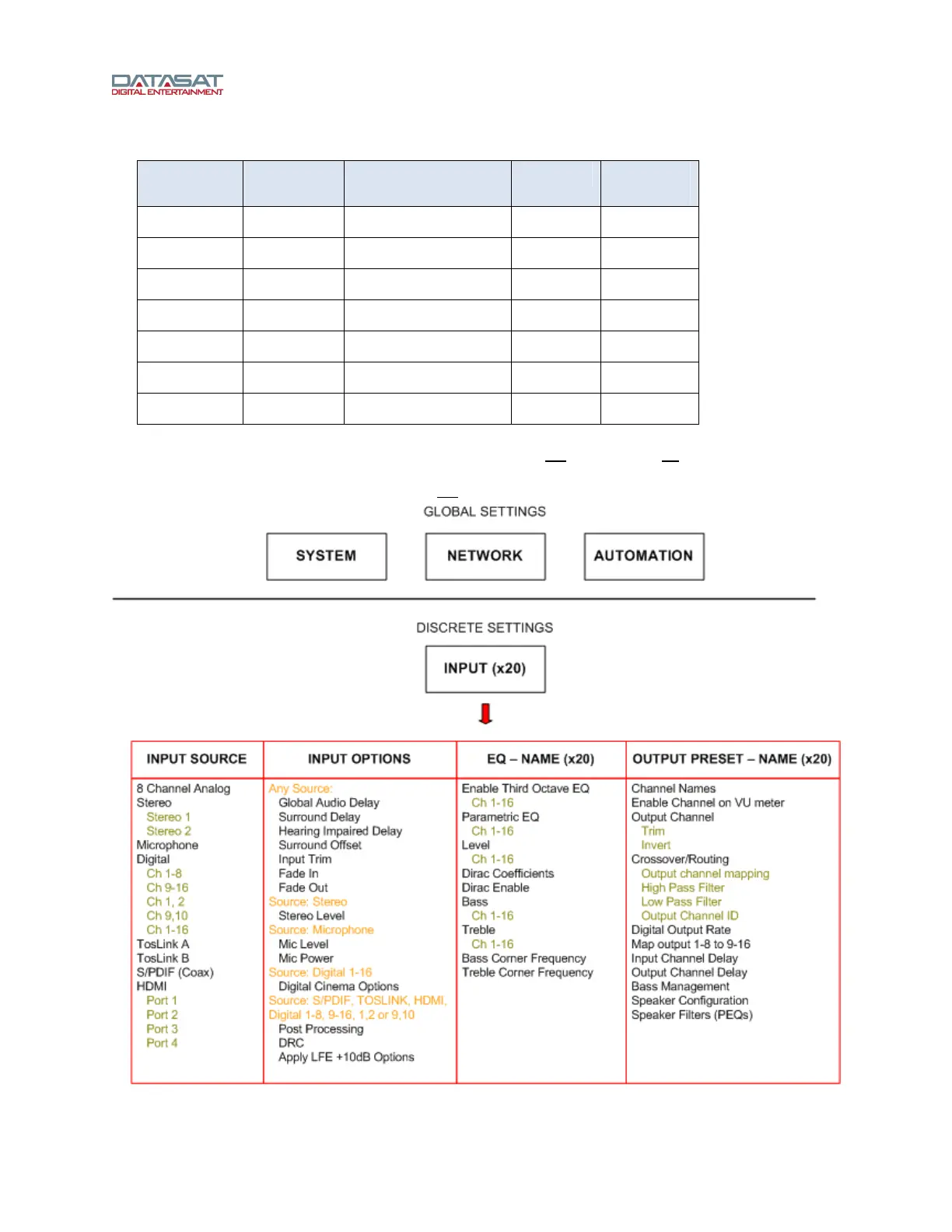

Figure 17. Global Settings and Input Discrete Settings
