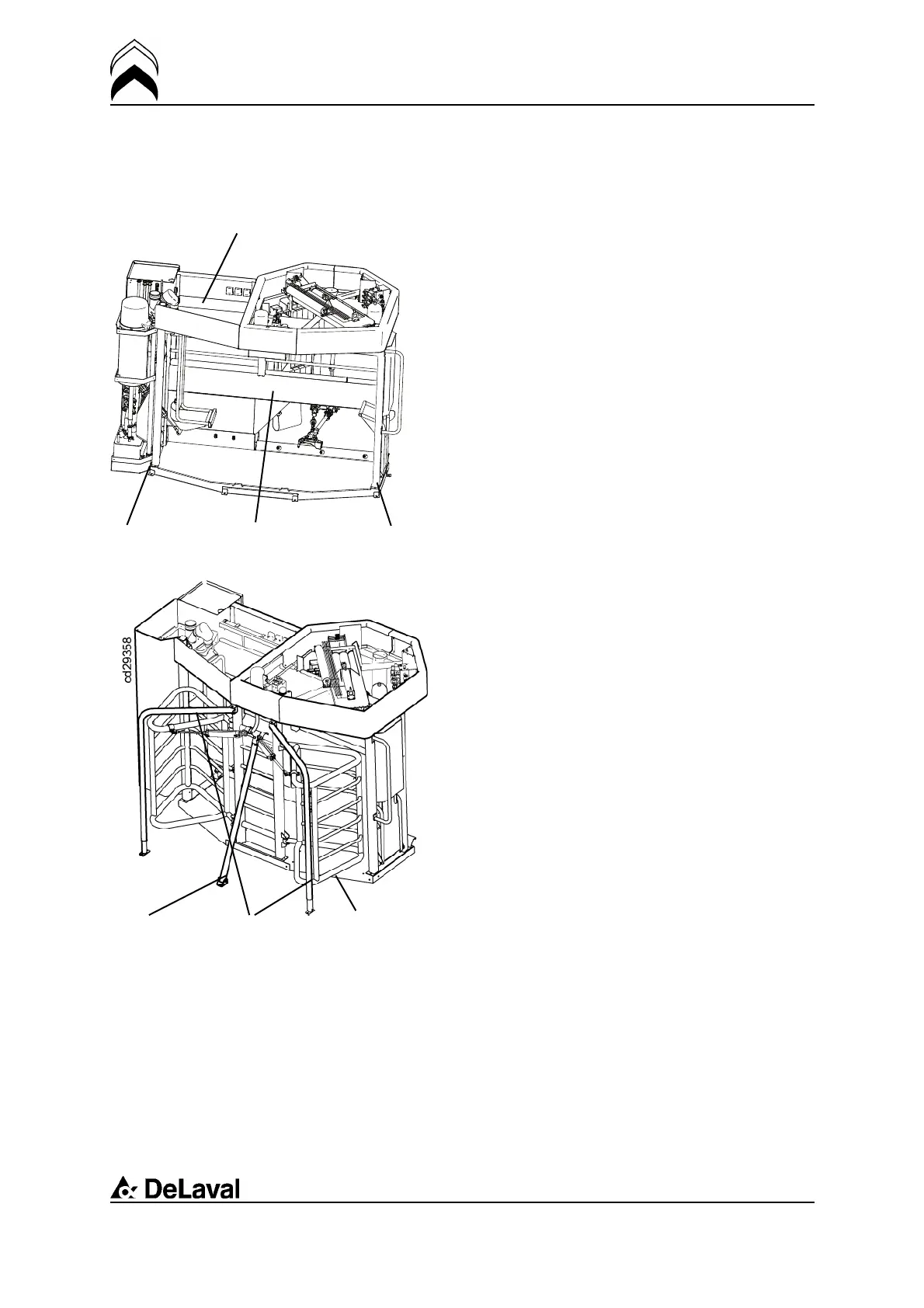

General description
DeLaval voluntary milking system VMS
94897201.pdf
2007-12-18
cd29900
Blocking
frames
Gate
support
Rear gable
Front gable
Lower beam
Upper beam
Gate
section
Stall and gates
The stall consists of five parts:
•
Rear gable
•
Front gable
•
Upper beam
•
Lower beam
•
Gate section
30(198)
37
39
