Operation
DeLaval voluntary milking system VMS
94897201.pdf
2007-12-18

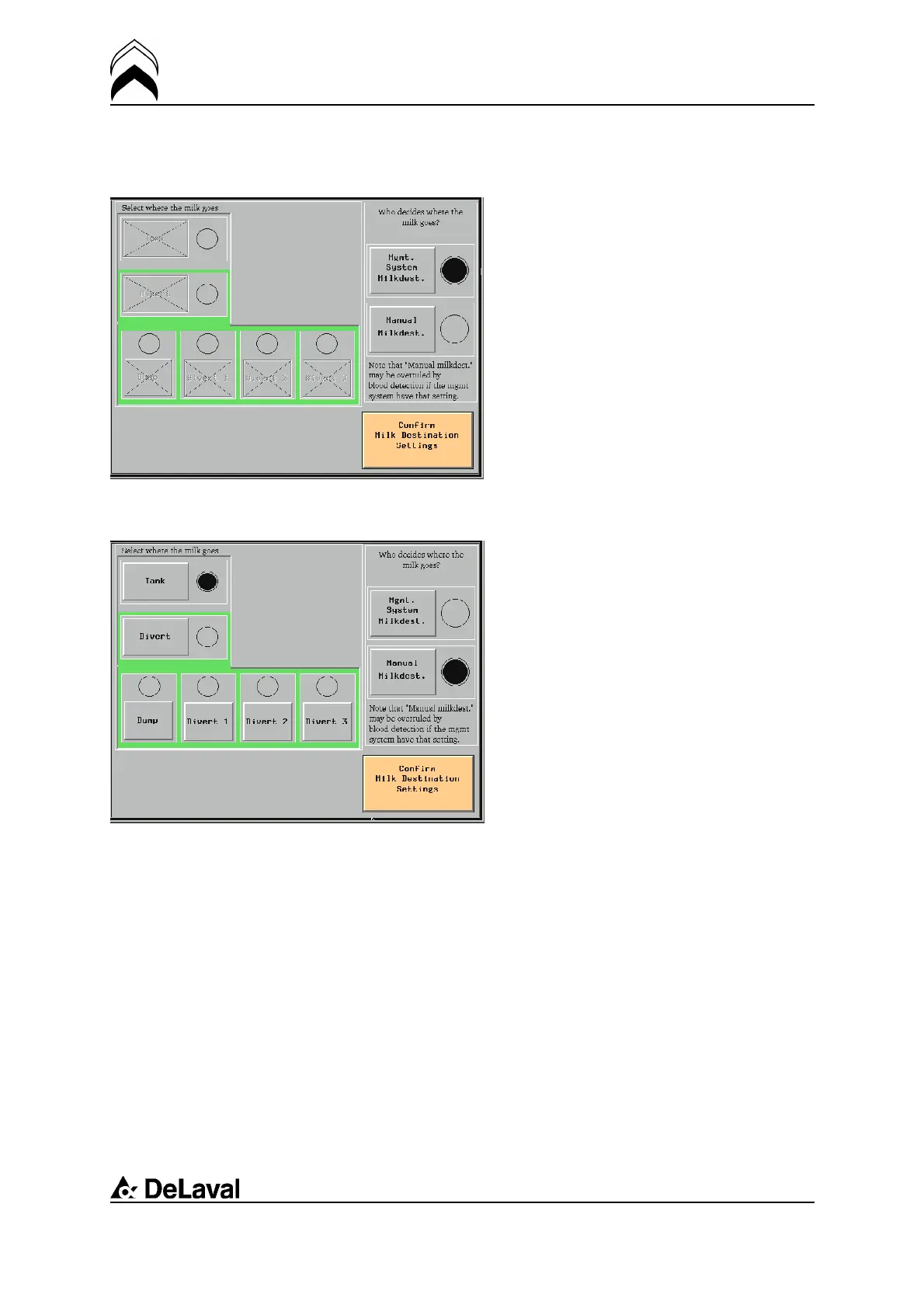

Milk destination set to Management System Milk
Destination.
Milk destination set to Manual Milk Destination.
This is the setting for the Management
System Milk Destination current milking
session.
It is possible to change milk destination by
clicking Manual Milk Destination. The milk
destination can now be set manually.
62(198)
69
71
