13 Maintenance
224
4

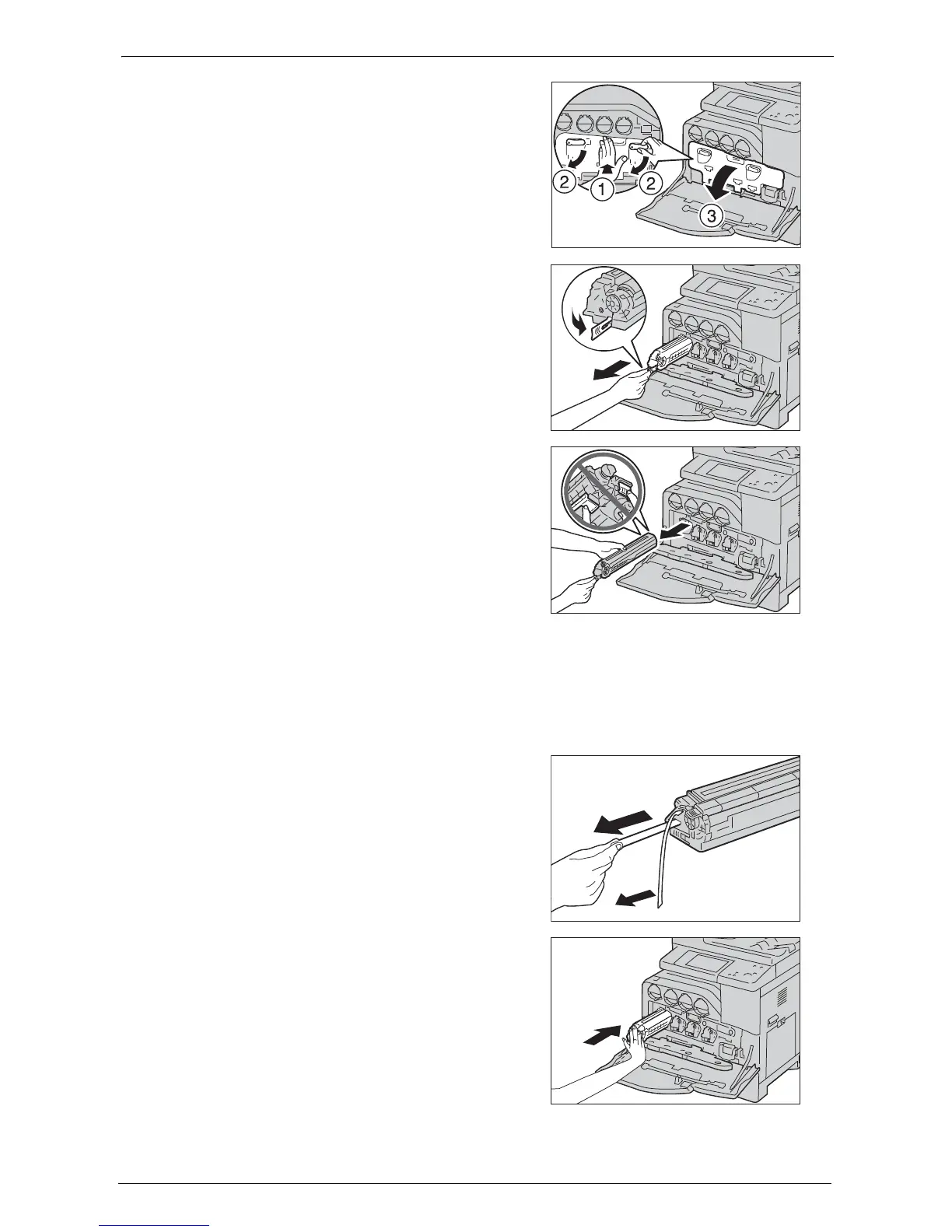

Rotate the lock levers of the inner cover to open
it.
5
Grasp the handle of the drum cartridge C, M,
Y, or K indicated in the message and gently
slide out the cartridge.
Note • When removing the drum cartridge, be careful
not to drop it on the floor.
• The illustrations in this section explains how
to replace the drum cartridge Y, as an
example.
6
Hold the bottom of the drum cartridge as
shown in the illustration, and pull it out from
the machine.
Note • Do not touch the parts as shown in the
illustration. Toner can dirty and stain your
hands.
• Be careful not to spill toner when handling the
drum cartridge.
7
Take the new drum cartridge out of the box, and insert the used drum cartridge into the
supplied plastic bag and place it into the box.
Note • To protect the drum from overexposure to bright light, do not remove the orange protective covering
until you insert the cartridge in the machine.
• Do not place the new drum cartridge in an upright position.
• Be careful not to spill toner when handling the drum cartridge.
8
Pull out the two ribbons.
9
Slide the cartridge into the correct slot.
To Next Page
