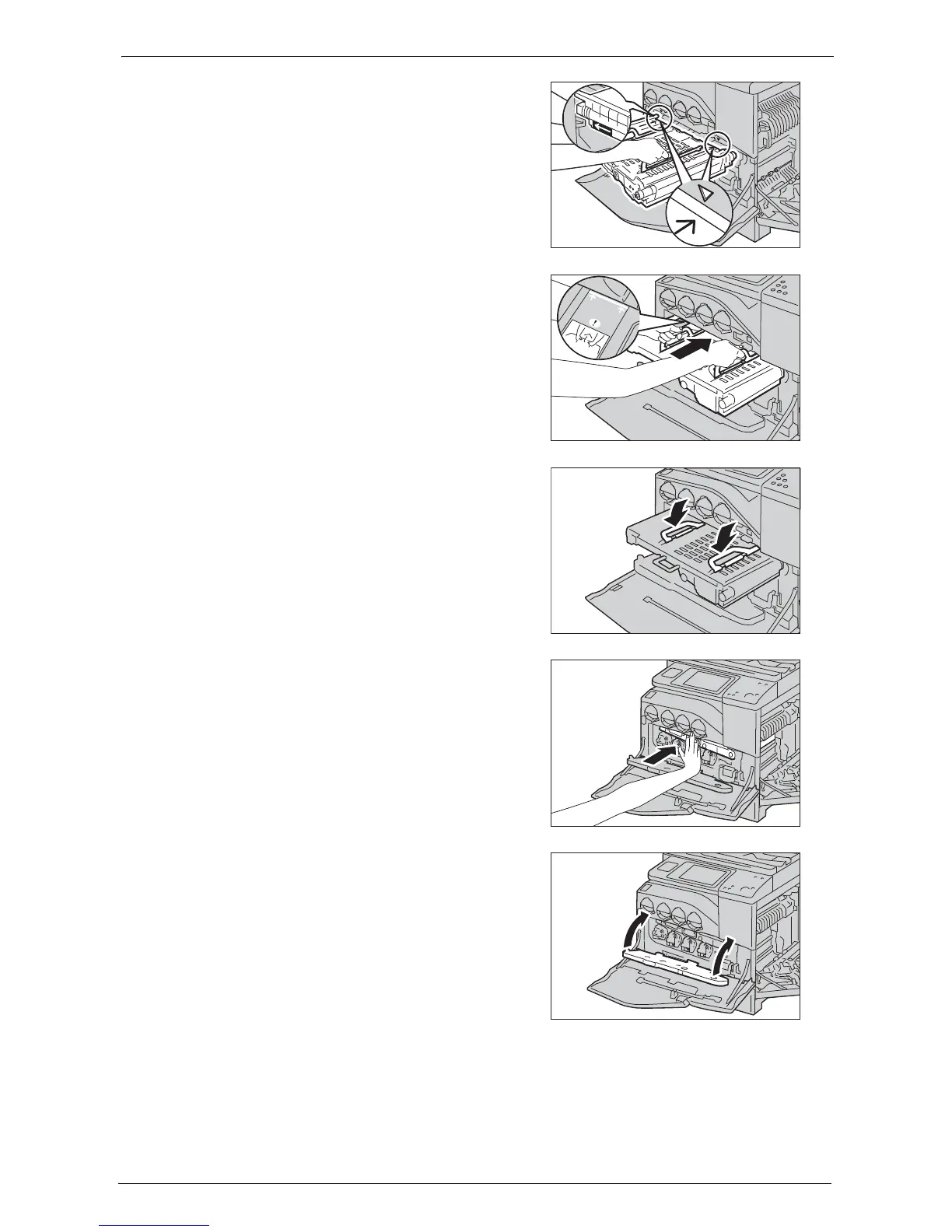

13 Maintenance
244
11
Align the arrows on the tr
ansfer belt unit with
the arrows on the machine.
12
Slide the unit into the machine and stop when
the visible line reaches the machine.
13
Lower the handles.
14
Push the front of the transfer belt unit to
reinstall it in the machine until it stops.
15
Close the inner cover.
243
245
