Dell C5765DN User Manual

Machine Components
33

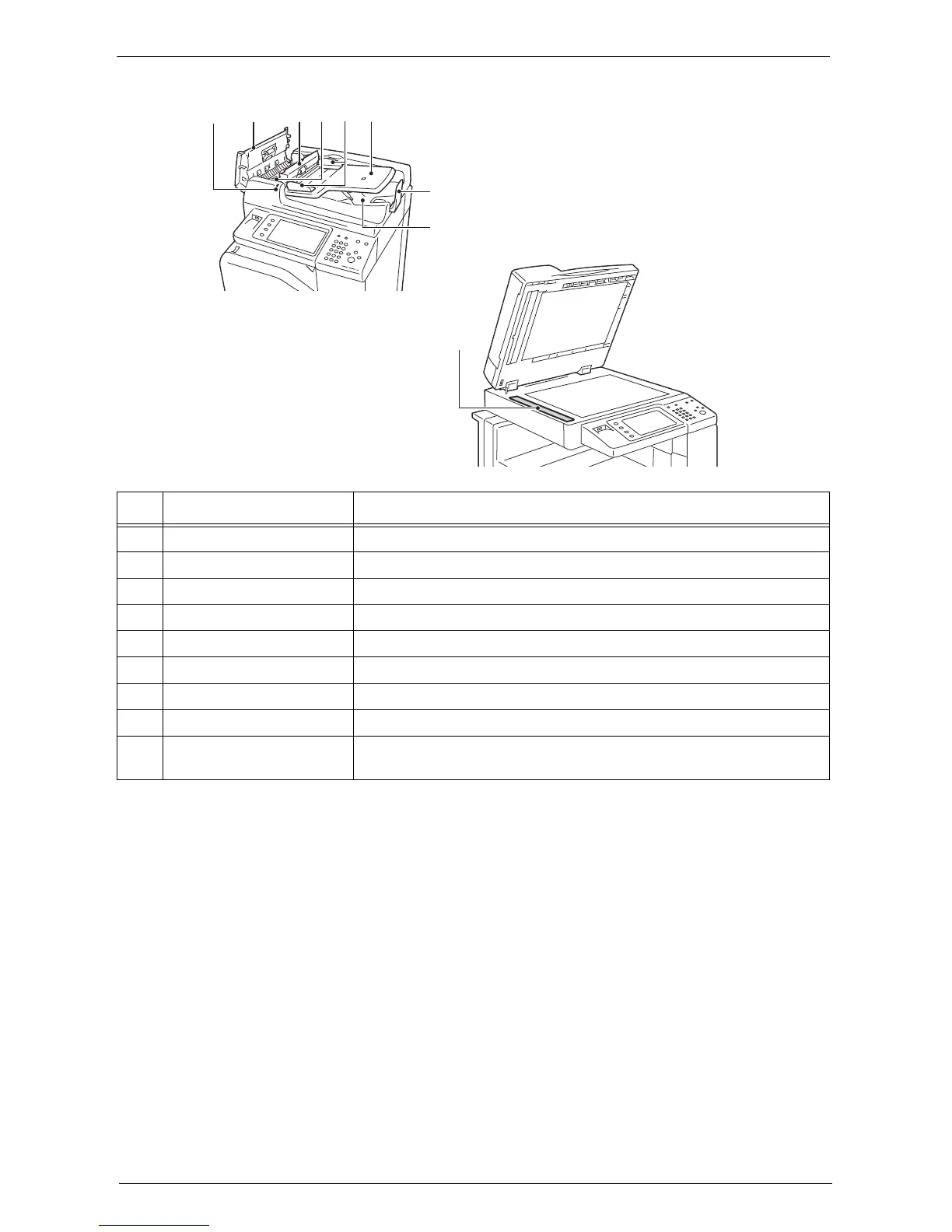

Top View (Duplex Automatic Document Feeder)
Note • In this guide, "document feeder" means the Duplex Automatic Document Feeder.
9
8
12 3
5
6
4
7
No. Component Function
1 Confirmation indicator Lights up when a document is loaded correctly.
2 Left cover Open this cover to clear paper jams.
3 Inner cover Open this cover to clear paper jams.
4Knob Rotate this knob to clear paper jams.
5 Document guides Use these guides to align the edges of documents.
6 Document input tray Load documents here.
7 Document output tray Scanned documents are delivered here.
8 Document stopper Prevents outputs from falling off.
9 Constant velocity transport
glass
Scans a loaded document.
