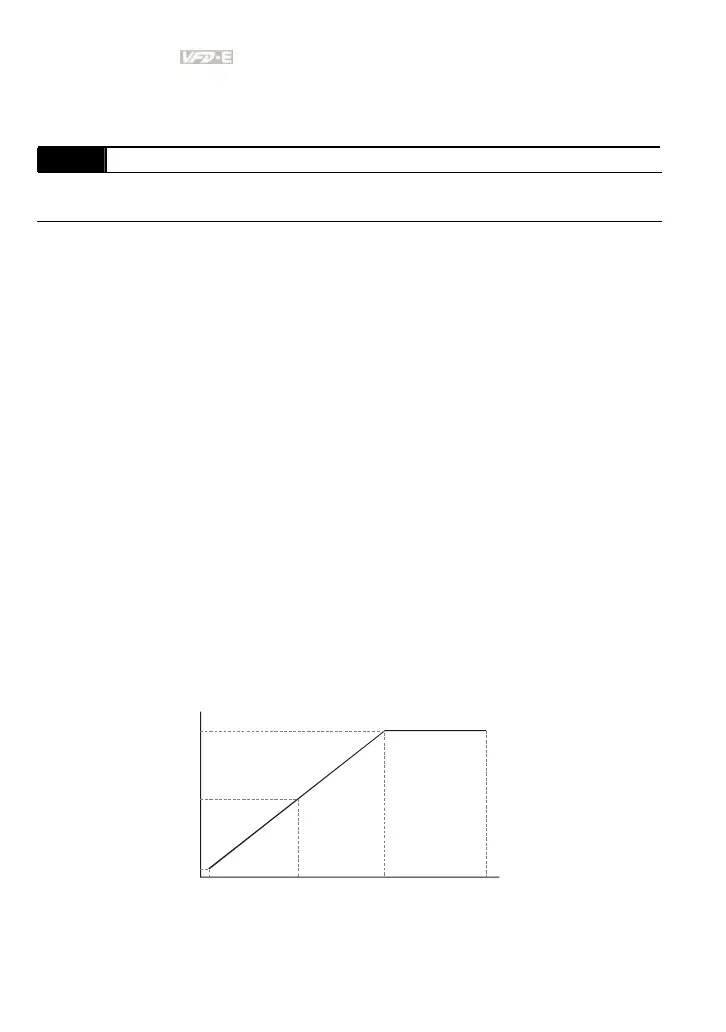

Delta VFD-E User Manual

Chapter 4 Parameters|
4-48 Revision Jan. 2009, 06EE, SW--PW V1.12/CTL V2.12
(Motor 0)), Pr.01.04(Mid-Point Voltage (Vmid) (Motor 0)) and Pr.01.06(Minimum Output
Voltage (Vmin) (Motor 0))
01.06 Minimum Output Voltage (Vmin) (Motor 0) Unit: 0.1
Settings 115V/230V series 0.1 to 255.0V Factory Setting: 10.0
460V series 0.1 to 510.0V Factory Setting: 20.0
 This parameter sets the Minimum Output Voltage of the AC motor drive.
 If the setting is too large, it may cause over current to damage motor or trigger the over current
protection.
 If the setting is too small, it may cause insufficient motor torque.
 The settings of Pr.01.01 to Pr.01.06 have to meet the condition of Pr.01.02 ≥ Pr.01.04 ≥
Pr.01.06 and Pr.01.01 ≥ Pr.01.03 ≥ Pr.01.05. By this condition, V/f curve is shown in the
following figure.
 In vector control mode (Pr.00.10 is set to 1), Pr.01.03, Pr.01.04 and Pr.01.06 are disabled. But
Pr.01.05 is still the minimum output frequency.
 The V/f curve of motor 0 to motor 3 can be selected by setting the multi-function input
terminals MI3~MI6 (Pr.04.05 to Pr.04.08) to 27 and 28. To set the voltage and frequency for
each motor, please refer to Pr.01.01~01.06 for motor 0 (factory setting), Pr.01.26~01.31 for
motor 1, Pr.01.32~01.37 for motor 2 and Pr.01.38~01.43 for motor 3.
 Related parameters: Pr.01.01(Maximum Voltage Frequency (Fbase) (Motor 0)),
Pr.01.02(Maximum Output Voltage (Vmax) (Motor 0)), Pr,01.03(Mid-Point Frequency (Fmid)
(Motor 0)), Pr.01.04(Mid-Point Voltage (Vmid) (Motor 0)) and Pr.01.05 (Minimum Output
Frequency (Fmin) (Motor 0)).
01.05
01.03 01.01
01.06
01.04
01.02
01.00
V
/f Curve
Voltage
Frequency
Mid-point
Freq.
(Fmid)
Maximum
Output
Frequency
Maximum
Output
Voltage
(Vbase)
Mid-point
Voltage
(Vmid)
Minimum
Output
Voltage
(V min)
Minimum
Output
Freq.
(Fmin)
Maximum Voltage
Frequency
(Fbase)

Delta VFD-E Specifications

General

Protection Features	IP20
Enclosure Rating	IP20
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Control Mode	V/F, Sensorless Vector
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	-10°C to +50°C
Analog Inputs	2 (0-10V, 4-20mA)
Analog Outputs	1 (0-10V)
Communication Interface	RS-485
Output Voltage	3-phase, equal to input voltage
Power Range	0.4kW to 7.5 kW
Storage Temperature	-20°C to +60°C
Humidity	90% RH (non-condensing)
Cooling Method	Fan cooled
Digital Outputs	1 relay output
