Delta VFD-E User Manual

Appendix D How to Use PLC Function|
D-10 Revision Jan. 2009, 06EE, SW--PW V1.12/CTL V2.12
Ladder Diagram Structure Explanation Command Equipment
Multiple output
MPS
MRD
MPP
none
Output command of coil drive OUT Y, M, S
Basic command, Application
command
Application
command
Please refer to
basic command
and application
command
Inverse logic INV none

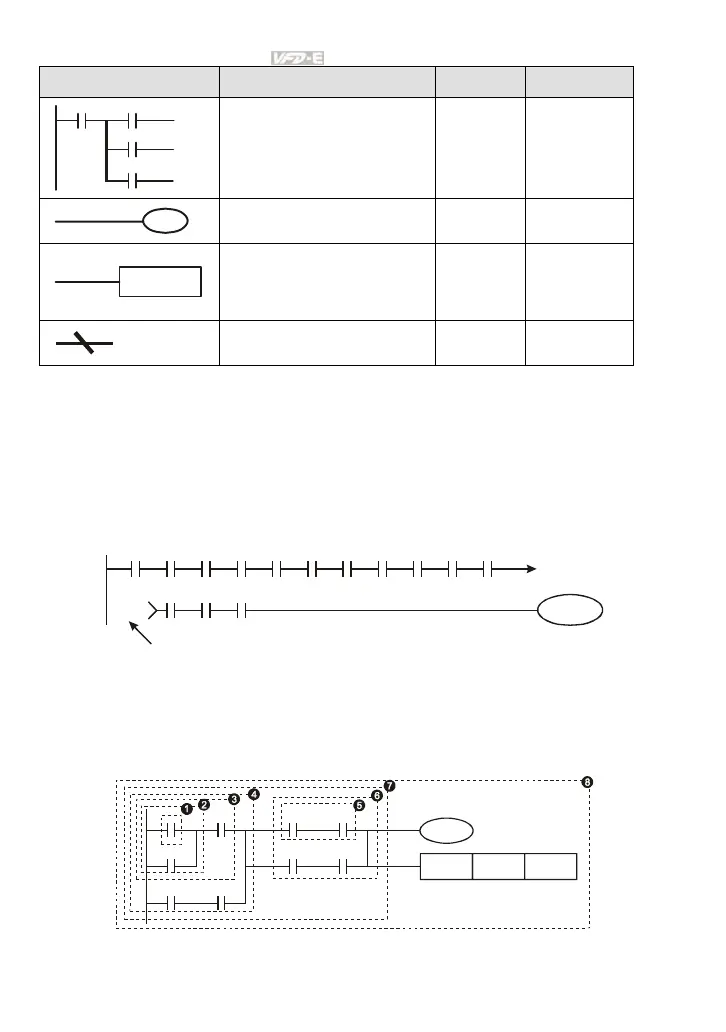

D.3.3 The Edition of PLC Ladder Diagram
The program edited method is from left power line to right power line. (the right power line
will be omitted during the edited of WPLSoft.) After editing a row, go to editing the next row.
The maximum contacts in a row are 11 contacts. If you need more than 11 contacts, you
could have the new row and start with continuous line to continue more input devices. The
continuous number will be produced automatically and the same input point can be used
repeatedly. The drawing is shown as follows.
X0 X1 X2 X3 X4 X5
Y0
X11 X12 X13
X6 X7 X10 C0 C1
00000
00000
Row Number
The operation of ladder diagram is to scan from left upper corner to right lower corner. The
output handling, including the operation frame of coil and application command, at the most
right side in ladder diagram.
Take the following diagram for example; we analyze the process step by step. The number
at the right corner is the explanation order.
X0 X1 Y1 X4
M0
X3
M1
T0
M3
Y1
TMR T0 K10

Delta VFD-E Specifications

General

Protection Features	IP20
Enclosure Rating	IP20
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Control Mode	V/F, Sensorless Vector
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	-10°C to +50°C
Analog Inputs	2 (0-10V, 4-20mA)
Analog Outputs	1 (0-10V)
Communication Interface	RS-485
Output Voltage	3-phase, equal to input voltage
Power Range	0.4kW to 7.5 kW
Storage Temperature	-20°C to +60°C
Humidity	90% RH (non-condensing)
Cooling Method	Fan cooled
Digital Outputs	1 relay output
