Delta VFD-E

Chapter 4 Parameters|
Revision Jan. 2009, 06EE, SW--PW V1.12/CTL V2.12 4-81

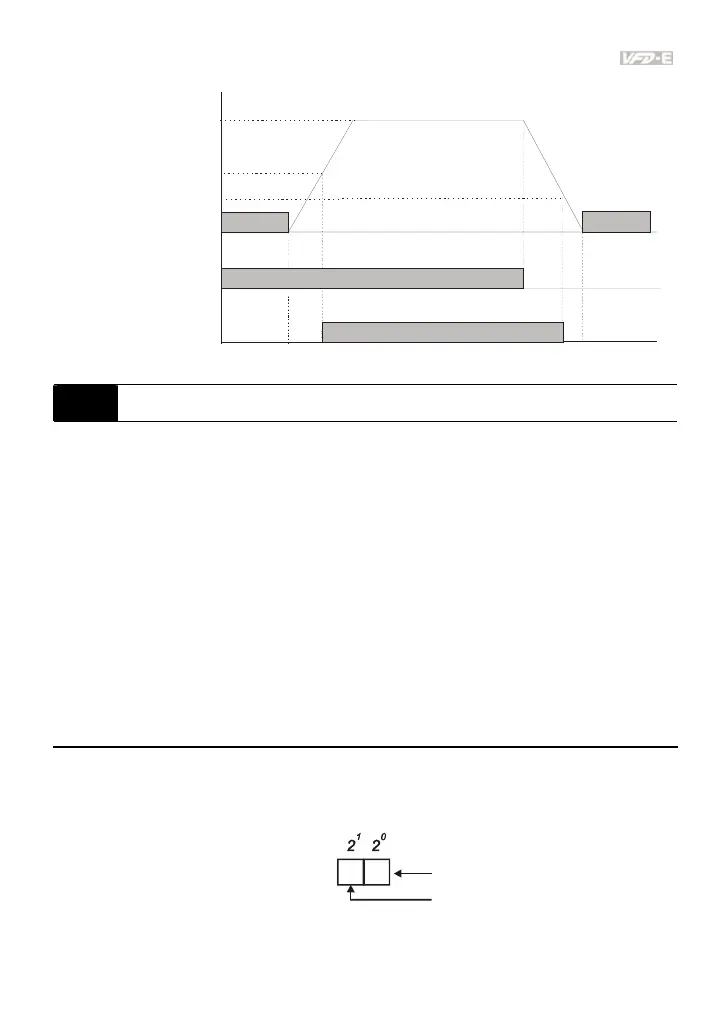

RUN
STOP
ON
OFF
RUN/STOP
Output frequenc y ( H
)
setting
frequency
03.11
Brake releas e frequency
03.12
Brake engage frequency
DC brake DC brake
08.01
DC brake time
during start-up
08.02
DC brake time
during stopping
Brake control
(MO1=21)
03.13 Display the Status of Multi-function Output Terminals
Settings Read Only Factory display: 255
Bit0: RLY Status
Bit1: MO1 Status
Bit2: MO2/RA2 Status
Bit3: MO3/RA3 Status
Bit4: MO4/RA4 Status
Bit5: MO5/RA5 Status
Bit6: MO6/RA6 Status
Bit7: MO7/RA7 Status
 When all output external terminals aren’t activated, Pr.03.13 will display 255 (11111111).
 For standard AC motor drive (without extension card), the multi-function output terminals are
falling-edge triggered and Pr.03.13 will display 3 (11) for no action.
1 0
Weights
Bit
0=Active
1=Off
Relay 1
MO1
