Chapter 4 Parameters|
4-52 Revision Jan. 2009, 06EE, SW--PW V1.12/CTL V2.12
01.00
01.09
01.11
01.10 01.12
Frequency
Time
Accel. Time
Decel. Time

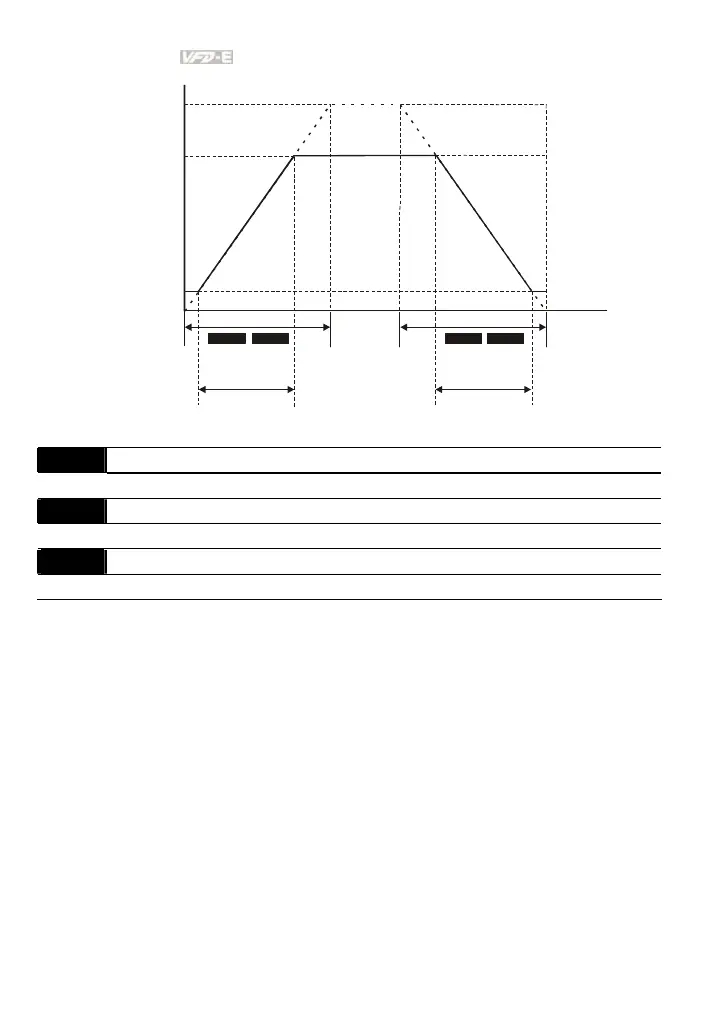

The definition of
Accel./Decel. Time
Max. output
Frequency
setting
operation
frequency
Min. output
frequency
01.05
Resulting
Resulting
Accel. Time
Decel. Time
Resulting Accel./Decel. Time
0 Hz
01.13 Jog Acceleration Time Unit: 0.1/0.01
Settings 0.1 to 600.0/0.01 to 600.0 sec Factory Setting: 1.0
01.14 Jog Deceleration Time Unit: 0.1/0.01
Settings 0.1 to 600.0/0.01 to 600.0 sec Factory Setting: 1.0
01.15 Jog Frequency Unit: 0.01
Settings 0.10 to Fmax (Pr.01.00)Hz Factory Setting: 6.00
Only external terminal JOG (MI3 to MI12) can be used. Please set one of MI3~MI12
(MI7~MI12 are optional) to 8 for JOG operation. When the Jog command is “ON”, the AC
motor drive will accelerate from Minimum Output Frequency (Pr.01.05) to Jog Frequency
(Pr.01.15). When the Jog command is “OFF”, the AC motor drive will decelerate from Jog
Frequency to zero.
The used Accel/Decel time is set by the Jog Accel/Decel time (Pr.01.13, Pr.01.14).
Before using the JOG command, the drive must be stopped first. And during Jog operation,
other operation commands are not accepted, except commands via the FORWARD,
REVERSE and STOP keys on the digital keypad.
