Delta VFD-E

Chapter 2 Installation and Wiring|
2-16 Revision Jan. 2009, 06EE, SW--PW V1.12/CTL V2.12

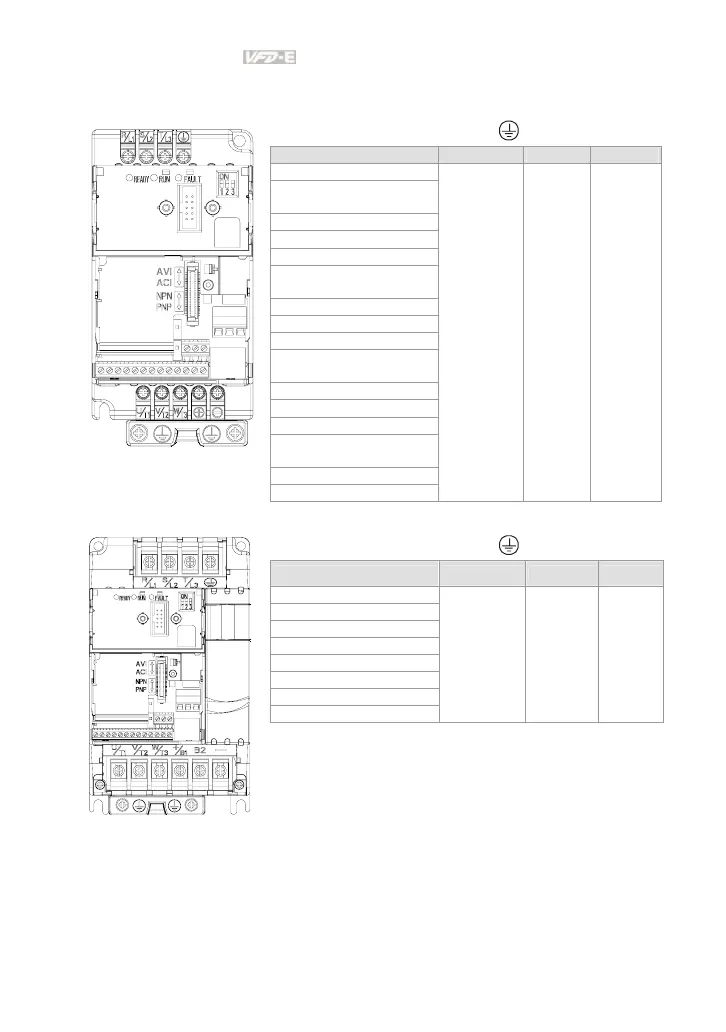

2.3.2 Main Circuit Terminals
Frame A Main circuit terminals:
R/L1, S/L2, T/L3, U/T1, V/T2, W/T3,
, +, -
Models Wire Torque Wire type
VFD002E11A/21A/23A
VFD004E11A/21A/23A/
43A
VFD007E21A/23A/43A
VFD015E23A/43A
VFD002E11C/21C/23C
VFD004E11C/21C/23C/
43C
VFD007E21C/23C/43C
VFD015E23C/43C
VFD002E11T/21T/23T
VFD004E11T/21T/23T/
43T
VFD007E21T/23T/43T
VFD015E23T/43T
VFD002E11P/21P/23P
VFD004E11P/21P/23P/
43P
VFD007E21P/23P/43P
VFD015E23P/43P
12-14 AWG.
(3.3-
2.1mm
2
)
14kgf-cm
(12in-lbf)
Stranded
copper
Only,
75℃
Frame B
Main circuit terminals:
R/L1, S/L2, T/L3, U/T1, V/T2, W/T3,
, +/B1, B2, -
Models Wire Torque Wire type
VFD007E11A,
VFD015E21A,
VFD022E21A/23A/43A,
VFD037E23A/43A,
VFD007E11C,
VFD015E21C,
VFD022E21C/23C/43C,
VFD037E23C/43C,
8-18 AWG.
(8.4-0.8mm
2
)
18kgf-cm
(15.6in-lbf)
Stranded
copper
Only,
75℃
